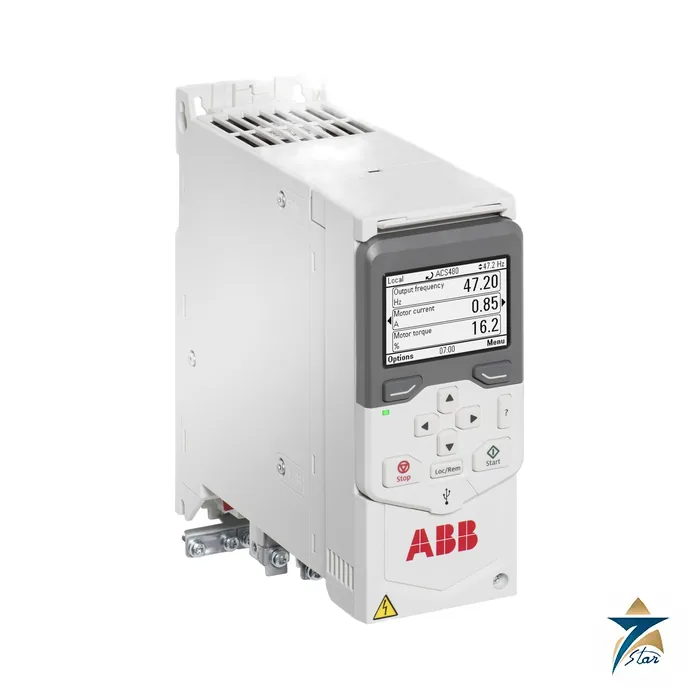

ABB ACS480-04-05A7-4 General Purpose Drive 2.2 kW 5.6 A
Description
ACS480-04-05A7-4: 5.6 A in a compact IP20 module
Rated 2.2 kW with 5.6 A of nominal current, the ACS480-04-05A7-4 is the ACS480-04 type for loads such as conveyors, mixers, pumps and fans that need dependable speed control without a large drive. It uses frame R1. The 2.2 kW rating suits small mixers and conveyors and sits mid-range on frame R1. The module is optimised for cabinet installation and ships with the assistant control panel and an I/O module.
ABB delivers the module with a built-in brake chopper, an internal EMC filter for category C2, Safe Torque Off and coated circuit boards. See more sizes in AC drives, or compare with the larger family on the ABB ACS580 page.
Technical specifications
| Parameter | Specification |
|---|---|
| Order type | ACS480-04-05A7-4 |
| Family and mounting | ACS480 general purpose, 04 = module |
| Mains voltage class | Three-phase 400 V class, code 4 |
| Frame | R1 |
| No-overload rating | 2.2 kW, 5.6 A |
| Light duty | 2.2 kW, 5.3 A |
| Heavy duty | 1.5 kW, 4 A |
| Peak current | 7.2 A |
| Mains current without and with choke | 8.5 A / 5.6 A |
| IEC gG fuse | 10 A, OFAF000H10 |
| IEC gR fuse | 32 A, 170M2695 |
| MCB option | S 203P-B 10 |
| Losses, cooling air, noise | 91 W / 57 m3/h / 63 dB(A) |
| Switching frequency derating (8 / 12 kHz) | 0.65 / 0.48 |
| IP20 height, width, depth | 223 x 73 x 208 mm |
| Mass in IP20 | 1.7 kg |
Sizing the ACS480-04-05A7-4 for the motor
The IEC ratings table gives nominal use 5.6 A / 2.2 kW, light duty 5.3 A / 2.2 kW and heavy duty 4 A / 1.5 kW, with a maximum current of 7.2 A. The input current is 8.5 A without a choke and 5.6 A with a choke. Take the motor nameplate current as the starting point, not the kilowatt figure alone.
Protection data from the manual: gG fuses of 10 A (OFAF000H10) with a minimum short-circuit current of 80 A, or gR fuses of 32 A (170M2695). A miniature circuit breaker alternative is S 203P-B 10. The drive dissipates about 91 W and needs 57 m3/h of cooling air at 63 dB(A).
Derating matters in warm or high-frequency applications: the factor for this type is 0.65 at 8 kHz and 0.48 at 12 kHz. At +50 to +60 degrees C the output current falls by 1% per additional degree, and above 1000 m by 1% per 100 m. ABB permits 4 kHz without derating.
The manual’s dimension table lists 73 mm width, 223 mm height and 208 mm depth for frame R1, at 1.7 kg. A UL Type 1 kit raises height to 293 mm and weight to 2.1 kg. The motor cable may be up to 100 m for performance; EMC compliance limits are 30 m for category C3 and 10 m for C2 with the internal filter, or 40 m for C1, C2 and C3 with the optional external filter.
Options that change the order
An order starts with ACS480-04-05A7-4: 04 means module, 05A7 is the rating and 4 the voltage class. Optional features are selected by plus codes such as K457 for FCAN-01 CANopen, K458 for FSCA-01 RS-485, K469 for FECA-01 EtherCAT and K470 for FEPL-02 POWERLINK. The base unit without panel and I/O module is ordered with +0J400+0L540.
Other manual data: natural convection on R0 and a cooling fan on R1 to R4, a choice of an IEC type or a UL (NEC) type for North America, an input frequency of 47 to 63 Hz and an output frequency of 0 to 500 Hz.
Source document and RFQ
The reference for the numbers above is ABB’s ACS480 hardware manual 3AXD50000047392 (revision F), available from the document link. To request the ACS480-04-05A7-4, give Seven Star LLC the motor data and supply details; availability and lead time are answered in the quotation.
Before ordering, check the full code with options, the motor current, the EMC category you need and any newer ABB revision of the manual.
