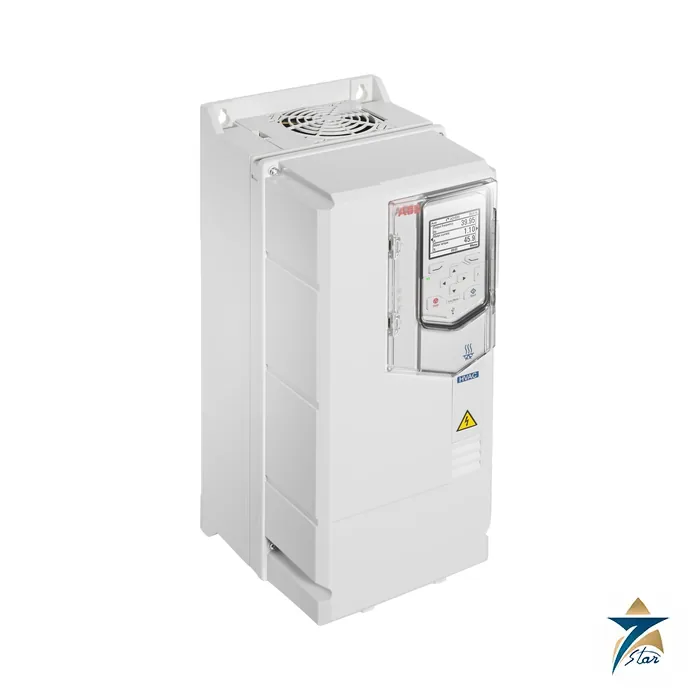

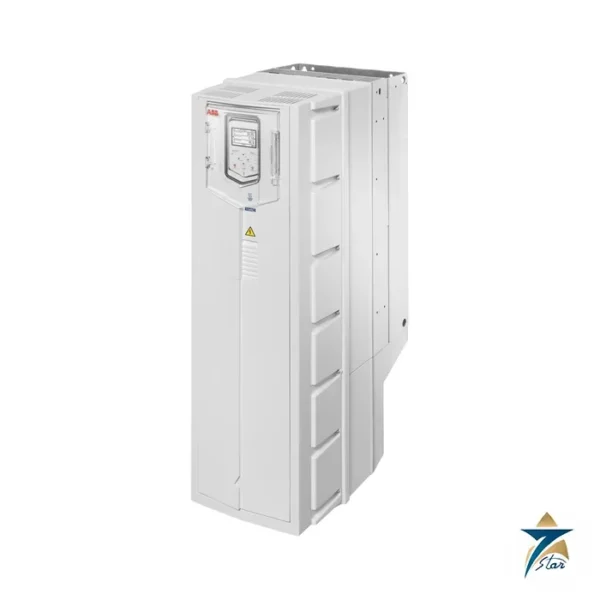

ABB ACH580-01-062A-4 HVAC AC Drive 30 kW 62 A

Where the ACH580-01-062A-4 fits in a building

Rated 30 kW with 62 A of nominal output current, the ACH580-01-062A-4 belongs to ABB’s ACH580-01 range, the wall-mounted HVAC line with BACnet MS/TP, Modbus RTU and N2 built in. It occupies frame R4. At 30 kW it opens frame R4 and suits big fan walls and chilled-water pumps. ABB positions the family for fans, pumps and also for basic constant-torque duties such as compressors.

Among the HVAC features in the control program are four start interlocks, belt-loss (under-load) detection, real-time clock scheduling and PID controllers for process control. Related products are in AC drives and on the ABB ACS580 page.

Technical specifications

Duty ratings of the ACH580-01-062A-4

Start from 58 A: this is the continuous light-duty current at 400 V, enough for a 30 kW fan or pump motor, with 110% for one minute (about 63.8 A, derived). If the motor is wound for 460 V or 480 V, read the 52 A, 40 hp column instead. The nominal 62 A figure is for loads without any overload demand.

The catalogue dimension table lists 636 x 203 x 257 mm and 19 kg for IP21 frame R4 (the 636 mm height applies without the gland box). IP55 is 636 x 203 x 265 mm and 20 kg. With a main switch or C1 filter variant the IP55 body becomes 879 x 206 x 286 mm and 23.3 kg.

The catalogue’s SynRM selection guide matches this drive with 22 kW M3BL180MLA4 at 3000 rpm (50.0 A nominal, motor efficiency 94.0%, package efficiency 91.6%); 22 kW M3BL200MLF4 at 1500 rpm (49.1 A nominal, motor efficiency 94.5%, package efficiency 92.2%). Read the package efficiency as a calculated value for the drive and motor together, useful when comparing options but not a substitute for the motor’s own datasheet.

Type code and option codes

The designation breaks down as series ACH580, construction 01 (wall-mounted), size 062A and voltage code 4 for 380 to 480 V. ABB lists these additions, among others: +F278 for a main disconnect switch with auxiliary contact, +F316 for the disconnect switch plus a C1 filter, +C135 for flange mounting and +L501 for the CMOD-01 relay and 24 V module.

Add a fieldbus only when the building network needs one: ControlNet via FCNA-01 (+K462), EtherCAT via FECA-01 (+K469) and POWERLINK via FEPL-02 (+K470) are among the choices.

Standard equipment and limits listed by ABB: altitude derating of 1% per 100 m between 1000 and 4000 m, coated circuit boards, a DC choke built to IEC 61000-3-12, Safe Torque Off certified to SIL 3 / PL e and an EMC category C2 design for frames R1 to R9.

Documentation and quotation

Request the ACH580-01-062A-4 from Seven Star LLC with your motor nameplate, supply voltage and communication needs; the quotation gives availability and lead time. Ratings, dimensions, motor pairing and option codes on this page were taken from ABB catalogue 3AUA0000186691, revision F (9.14.2019), available via the document link.

Confirm before ordering: type code and plus options, motor rated current, enclosure class, ambient temperature and altitude, and any change in newer ABB documents.
