Trafimet ERGOPLUS 15 Gas-Cooled MIG Torch

Name: Trafimet ERGOPLUS 15 Gas-Cooled MIG Torch – Datasheet
Brand: Trafimet
SKU: ERGOPLUS 15

A light 180 A MIG torch for thin wire and sheet-metal work

The Trafimet ERGOPLUS 15 is a gas-cooled MIG/MAG torch from the Ergoplus range, rated at 180 A with CO2 and 150 A with mixed gas at 60% duty cycle according to EN 60974-7. It is the lightest torch in the series, built for 0.6 to 1.0 mm wire, and suits light fabrication, body repair, sheet-metal and maintenance work on compact MIG power sources.

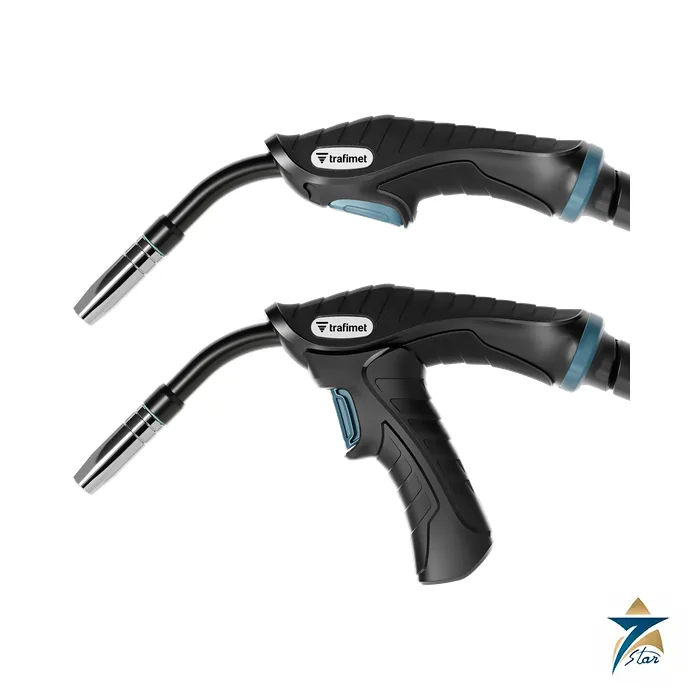

Like the rest of the Ergoplus family it has an ergonomic handle with an optional pistol grip (MT0566, supplied as standard equipment in all torch packages) and a EURO connector at the machine end.

Technical specifications

Parameter	Specification
Manufacturer / model	Trafimet / ERGOPLUS 15
Cooling	Gas-cooled
Rating (EN 60974-7)	180 A CO2, 150 A mixed gas, 60% duty cycle
Wire diameter	0.6 to 1.0 mm
Voltage rating (V peak)	113 V
Weight per metre	0.65 kg (1.43 lb)
Connection	EURO
Torch packages	MA4200-030 (3 m), MA4200-040 (4 m), MA4200-050 (5 m)
Torch head	MF1515
Standard gas nozzle	MC0018, 12 mm bore, 53 mm long
Standard contact tip	MD0008-08, M6 copper, 0.8 mm, 25 mm long
Liner	Blue steel, 0.6 to 0.9 mm: GM0500 (3 m), GM0501 (4 m), GM0502 (5 m)
Coaxial cable	MH0816-030 / -040 / -050 (3, 4, 5 m)

Spare parts on the technical sheet

The Trafimet sheet lists the head assembly parts so the torch can be rebuilt rather than replaced: plastic body BW0562, spring EA0303, hexagonal fitting FB0112, diffuser FB0117, trigger kit MT0563, handle kit MT0562 and the pistol grip MT0566. At the machine end are the EURO air connector AR0070, plastic euro nut BW0018, M10x1 liner nut FA0026 and the EURO back box kit MT0565. Order the liner by length to match the cable; a blue steel liner is the usual choice for steel and flux-cored wire.

When fitting a new liner, cut it flush with the head end after the torch is fully assembled and the cable laid straight; a liner that is too short leaves a gap where the wire can kink, and one that is too long pushes against the contact tip and causes erratic feeding.

Choosing the right Ergoplus size

The rating is quoted at 60% duty cycle, so continuous production welding at the top of the range will heat the torch. If the job regularly needs more current or 1.2 mm wire, move up the series; the Trafimet ERGOPLUS 36 MIG torch is the heavier gas-cooled option. For short arc welding of thin sheet with 0.6 or 0.8 mm wire, the ERGOPLUS 15 keeps hand weight and cable stiffness low, which reduces fatigue over a shift. Contact tips wear with use; keeping spare tips of the correct diameter avoids feeding problems and arc instability.

Documents and quotation

The Trafimet ERGOPLUS 15 technical sheet is attached under Datasheets & Documents. Other torches are listed under TIG Torches & MIG Guns.

For a quotation, send the package code (MA4200-030, -040 or -050) or the cable length, plus any spare contact tips, nozzles or liners needed, with quantities.

Trafimet Group, based in Castegnero, Vicenza, Italy, manufactures torches and consumables for plasma cutting and for MIG/MAG and TIG welding. Since 2019 Trafimet has been part of the Kemppi Oy Group.

Seven Star LLC is an independent supplier in Muscat. We list the ERGOPLUS 36 gas-cooled MIG torch and source Trafimet torches, spare parts and consumables on request.

Trafimet product groups

The plasma range includes the PLUSCUT and EXPRESCUT torch families with their consumables. For MIG/MAG welding the manufacturer builds the ERGOPLUS, ERGOMEGA and ERGOFRESH torch lines in gas-cooled and water-cooled versions, and it also offers TIG torches, accessories and safety products. Each torch is listed in the Trafimet catalogue with its order codes, spare parts and wear parts.

Ordering Trafimet torches and consumables: what we need

Give the torch model and cable length, or the full Trafimet order code, and the connection on your machine, for example EURO. For consumables state the wire diameter, contact tip thread and nozzle type, or simply send the Trafimet codes from the old parts.
