Brand: SICK

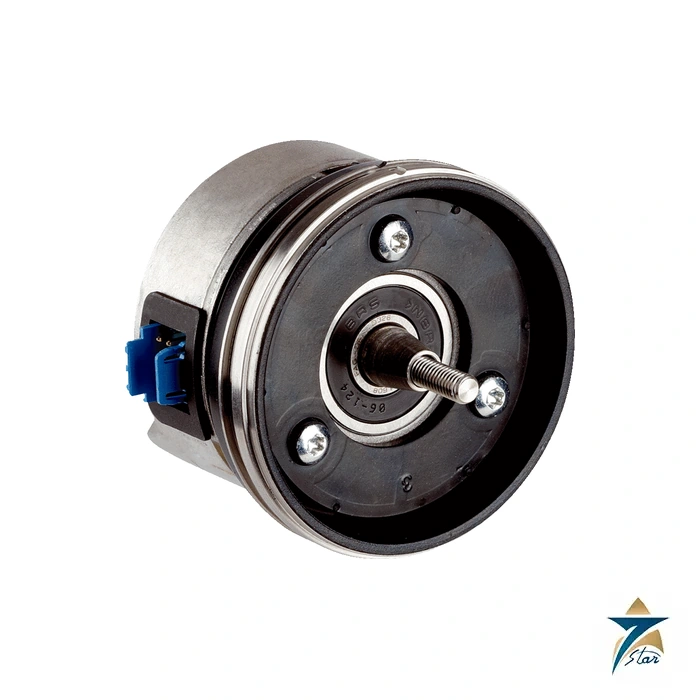

SICK SRS50-HGA0-K22 Motor Feedback
Description
Single-turn feedback with an exact connection and mounting execution
The SICK SRS50-HGA0-K22, order 1037076, is a single-turn HIPERFACE motor-feedback encoder. Its own datasheet specifies 1,024 sine/cosine periods per revolution, 32,768 absolute steps and one absolute turn.
This execution uses a tapered shaft with resolver support. The electrical connection is radial 8-pin connector, and the available memory is 1792 bytes. These details distinguish it from other SRS50 references.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer | SICK |
| Model / order | SRS50-HGA0-K22 / 1037076 |
| Feedback | HIPERFACE, single-turn |
| Sine/cosine periods | 1,024 per revolution |
| Absolute steps / turns | 32,768 / 1 |
| Memory | 1792 bytes |
| Shaft / mounting | Tapered shaft / Resolver support |
| Connection | Radial 8-pin connector |
| Supply | 7–12 V DC |
| Reliable absolute-position speed | ≤6,000 rpm |
| Protection | IP40 with specified mating plug arrangement |
| Temperature | −30 to +115 °C, subject to datasheet conditions |
Match the mechanical and electrical interface
The supply range is 7–12 V DC. Check the motor feedback interface, shaft arrangement, support and complete cable or connector configuration before selecting a replacement.
The reliable absolute-position speed is no greater than 6,000 rpm. This is a position-data limit, distinct from a mechanical maximum-speed rating; do not use the two quantities interchangeably.
The published IP40 protection is conditional on the specified mating plug arrangement. The temperature range is −30 to +115 °C under the applicable datasheet conditions. Mounting screws and servo clamps are excluded from the manufacturer equipment scope.
Quotation enquiries
Send Seven Star LLC the SRS50-HGA0-K22 code, order 1037076, quantity, motor reference and existing feedback connection. Include a photograph of the shaft support and connector or cable exit.
Specify any required mounting hardware and mating components separately. A family reference or matching connector alone does not establish the same mounting, memory or feedback execution.
Datasheets & Documents
- Datasheet SICK SRS50-HGA0-K22 Motor Feedback Manufacturer Datasheet Download
Reviews (0)
About brand
Machine builders have relied on SICK since 1946 for the sensors that tell a controller where a part, a pallet or a person is. The company, based in Waldkirch, Germany, makes photoelectric, inductive and magnetic sensors, distance sensors and safety devices. Seven Star LLC supplies SICK sensors to maintenance teams and integrators in Oman, mostly as exact replacements identified by type code and part number.
SICK sensor families on this page
Five of the SICK families listed here are described below. The W4 miniature photoelectric sensors include the WTB4-3, a proximity sensor with background suppression. IME is the standard inductive proximity line, and the IME18 is the M18 housing size. RZT7 cylinder sensors fit T-slot pneumatic cylinders and detect the piston magnet. The DT35 belongs to the Dx35 laser distance sensors for mid-range measurement. The microScan3 is a safety laser scanner that guards hazardous zones around machines and vehicles.
Where SICK sensors are used
SICK sensors are fitted on packaging and bottling lines, conveyors, palletizers, warehouse cranes and automated guided vehicles. Safety laser scanners protect robot cells and transfer cars. In process plants, the same proximity and cylinder sensors report valve and damper positions on packaged equipment.
Ordering SICK sensors: what we need
A SICK type code such as IME18-08NPSZW2K packs the whole specification into one string: housing size, sensing range, flush or non-flush mounting, output type and connection. Each variant also has a 7-digit part number, and that number is the safest identifier. Please send:
- Type code and part number from the sensor label, or a photo of it
- Output type (PNP or NPN, normally open or closed) and connection (cable length or M8/M12 plug)
- For microScan3: variant (Core or Pro), interface, protective field range, plus system plug and bracket
We check the code in SICK's documentation and tell you if the manufacturer lists a successor.
Browse SICK products by category: Sensors & Transmitters.
Related products
Frequently Asked Questions
What is the exact order number?
1037076.
What feedback interface is used?
Single-turn HIPERFACE, with 1,024 sine/cosine periods and 32,768 absolute steps.
What connection does this execution use?
Radial 8-pin connector.
What memory capacity is listed?
1792 bytes.
Are mounting screws and servo clamps included?
The manufacturer scope excludes them; identify required mounting components separately.
