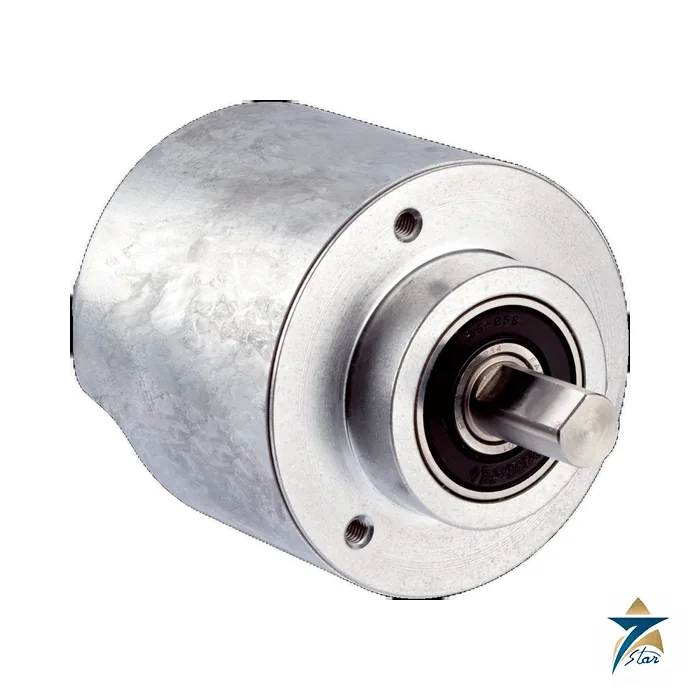

SICK AFM60A-S4NB018x12 PROFINET Absolute Encoder

Name: SICK AFM60A-S4NB018x12 PROFINET Encoder – Datasheet & Quote
Brand: SICK
SKU: AFM60A-S4NB018x12

Description

An 18 + 12 bit absolute encoder that connects straight to PROFINET

The SICK AFM60A-S4NB018x12 is the Ethernet member of the AFS/AFM60 family: a multiturn absolute encoder with 262,144 steps per turn and 4,096 turns that talks PROFINET directly, using encoder profile V4.1 class 3. Two M12 Ethernet ports allow line topologies without an external switch.

Because the position is delivered over the industrial network, there is no separate counter card or SSI interface to wire. Diagnostic data such as temperature extremes, operating hours and power-on count can be read from the encoder for maintenance planning.

Technical specifications

Parameter	Specification
Type / part number	AFM60A-S4NB018x12, part no. 1059039
Encoder type	Multiturn absolute encoder, AFS/AFM60 Ethernet family
Resolution	18 bit per turn (262,144 steps) x 12 bit turns (4,096 revolutions)
Accuracy	Error limits 0.03 deg; repeatability standard deviation 0.002 deg
Interface	PROFINET, encoder profile V4.1 class 3; 10 / 100 Mbit/s over CAT-5e; cycle time 1 ms or less
Initialization	6 s after power-on
Parameter data	Steps per revolution, number of revolutions, preset, counting direction, speed sampling rate, speed unit, round-axis function
Diagnostics	Min / max temperature, maximum speed, power-on counter, operating hours, direction-change and movement counters, maximum supply voltage
Supply	10 to 30 V; 3 W or less without load
Connection	1 x M12 4-pin male (power) and 2 x M12 4-pin female D-coded (Ethernet ports), axial
Shaft	10 mm solid shaft with flat, 19 mm; face-mount flange; stainless steel shaft; aluminum housing
Mechanical limits	Up to 9,000 min-1; bearing life 3 x 10^9 revolutions; 80 N radial, 40 N axial
Environment	IP65 shaft side, IP67 housing side; -40 to +85 C; shock 100 g / 6 ms; vibration 30 g
Weight / safety	0.2 kg; MTTFd 80 years (standard product, not a safety component)

Commissioning on a PROFINET network

The encoder starts up in about 6 seconds, then exchanges data with a cycle time of 1 ms or less. Steps per revolution, number of revolutions, preset, counting direction and the unit for the speed value are parameterised from the controller. A round-axis function supports rotary tables and other endless axes.

Power is supplied through a 4-pin M12 male connector at 10 to 30 V, and the two D-coded female M12 connectors carry the 10/100 Mbit/s network over CAT-5e cable. Confirm that the controller supports profile V4.1 and class 3 before purchase.

Selecting and ordering

PROFINET removes the need for a separate counter card, but it also means the encoder must be given a device name and an IP configuration during commissioning, and that the engineering project has to include the correct device description. Mechanical mounting follows the 60 mm servo-style flange used across the family, with a 10 mm shaft that needs a flexible coupling to protect the bearings against the 80 N radial and 40 N axial limits.

The same housing is offered with SSI, incremental and other fieldbus interfaces. Confirm before ordering: the network (PROFINET here), resolution split, flange and shaft, connector arrangement and cabling. See also the encoders category and the SICK SRS50 motor feedback encoder.

Documents and quotation

The attached file is the unaltered SICK data sheet for AFM60A-S4NB018x12 (part no. 1059039), covering the technical data, certificates and dimensional drawing. For a quotation, send the type code, quantity and destination to Seven Star LLC, an independent supplier in Muscat.
