Brand: SICK

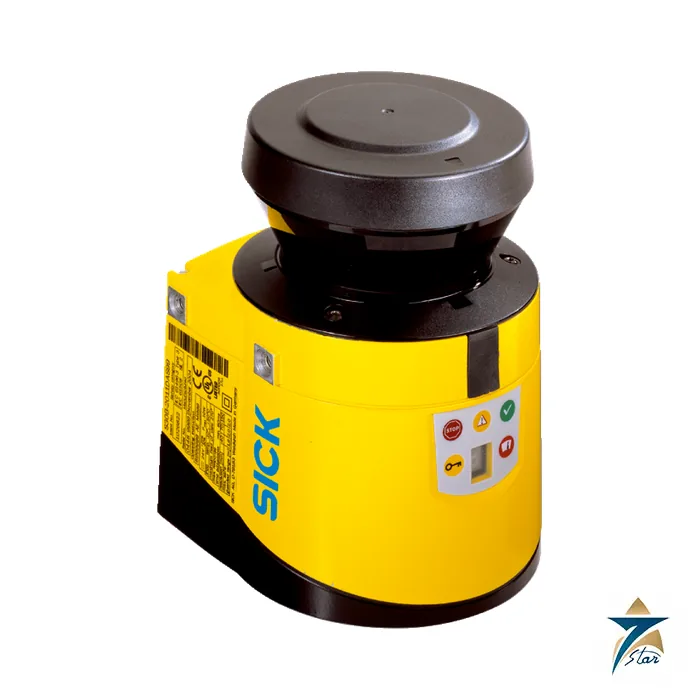

SICK S30B-2011DA S300 Professional Safety Laser Scanner
Description
S30B-2011DA is a SICK S300 safety laser scanner (part no. 1026822), version S300 Professional. It guards an area by scanning a pulsed laser through 270°, with a protective field range of 2 m and 24 fields in 8 field sets. Safety data as printed: SIL 2 (IEC 61508), PL d (EN ISO 13849). SICK currently lists this type as “to be phased out”; the catalogue names no successor, so confirm availability and any replacement with us before you plan a repair around it.
What the S30B-2011DA protects and how it is configured
This is the Professional version supplied as a sensor without system plug (model: sensor without system plug). The system plug carries the connections and the configuration memory, so check whether you also need the system plug and cable for your installation; they are separate parts.
Warning field range 8 m (at 15 % reflectivity), distance measuring range 30 m, response time 80 ms, configurable resolution 30 mm, 40 mm, 50 mm, 70 mm, and 32 monitoring cases can be switched. Configuration is by PC with SICK’s CDS software; the data sheet lists the interface and the transmission rates. Measured data output: via RS-422.
Technical specifications
| Parameter | Specification |
|---|---|
| Type code | S30B-2011DA |
| Part number | 1026822 |
| EAN | 4047084128622 |
| Product family | S300 |
| Product version | S300 Professional |
| Model | Sensor without system plug |
| Application | Indoor |
| Protective field range | 2 m |
| Warning field range | 8 m (at 15 % reflectivity) |
| Distance measuring range | 30 m |
| Type of field set | Triple field sets |
| Scanning angle | 270° |
| Resolution (can be configured) | 30 mm, 40 mm, 50 mm, 70 mm |
| Angular resolution | 0.5° |
| Response time | 80 ms |
| Protective field supplement | 100 mm |
| Delay of automatic reset | 2 s … 60 s, configurable |
| Type | Type 3 (IEC 61496) |
| Safety integrity level | SIL 2 (IEC 61508) |
| Category | Category 3 (EN ISO 13849) |
| Performance level | PL d (EN ISO 13849) |
| PFHD (mean probability of a dangerous failure per hour) | 8.0 x 10⁻⁸ |
| Safe state in the event of a fault | At least one OSSD is in the OFF state. |
| Restart interlock | Yes |
| External device monitoring (EDM) | Yes |
| Multiple sampling | Yes |
| Monitoring case switching | Yes |
| Static protective field switching | Yes |
| Dynamic protective field switching | Yes |
| Contour as a reference | Yes |
| Integrated configuration memory | Yes |
| Measured data output | Via RS-422 |
| Safe SICK device communication via EFI | Yes |
| Connection type | System plug with or without connecting cable |
| Universal I/Os | 5 |
| Inputs: External device monitoring (EDM) | 1 |
| Inputs: Reset/restart | 1 |
| Inputs: Static control inputs | 3 |
| Inputs: Static control inputs with EFI | 5 |
| Inputs: Dynamic control inputs (incremental encoder) | 2 |
| Inputs: Standby | 1 |
| Outputs: OSSD pairs | 1 |
| Outputs: Application diagnostic outputs | 3 |
| Configuration method | PC with CDS (Configuration and Diagnostic Software) |
| Configuration and diagnostics interface | RS-232 |
| Transmission rate | 38.4 kBaud |
| Data interface | RS-422 |
| Transmission rate (2) | ≤ 500 kBaud |
| Safe SICK device communication via EFI: Transmission rate | ≤ 500 kBaud |
| Safe SICK device communication via EFI: Length of cable | ≤ 50 m |
| Safe SICK device communication via EFI: Conductor cross section | 0.22 mm² |
| Supply voltage Vs | 24 V DC (16.8 V DC … 30 V DC) |
| Power consumption | 0.33 A ; 1.7 A |
| Declarations and certificates in the data sheet | EU declaration of conformity; UK declaration of conformity; ACMA declaration of conformity; China RoHS; cULus certificate; EC-Type-Examination approval; Information according to Art. 3 of Data Act (Regulation EU 2023/2854) |
Type code S30B-2011DA and part number 1026822
In SICK’s catalogue the codes S30B and S32B belong to the S300 and the S300 Mini respectively, and the remaining digits and letters describe the variant. The part number 1026822 is the safe way to identify this device; an S300 Professional and an S300 Mini Remote share a style of housing but differ in range, field sets and permitted use. Replacement and system-plug choices should always be checked against your existing configuration file.
Selection, configuration and validation notes
Supply 24 V DC (16.8 V DC … 30 V DC); enclosure rating IP65 (EN 60529); ambient operating range –10 °C … +50 °C; dimensions 102 mm x 152 mm x 106 mm; weight 1.2 kg; laser class 1 (21 CFR 1040.10 and 1040.11, IEC 60825-1). A safety laser scanner is only one element of a safeguarding concept: stopping distance, protective field supplement and mounting height must be verified for the machine or vehicle, and the configuration should be validated after any replacement.
Documents and quotation
For S30B-2011DA the manufacturer’s data sheet (part no. 1026822) is attached as a PDF copy; read it together with your control drawing before you commit to the order. A quotation needs only the part number, the quantity and the delivery destination; the RFQ form takes all three. Related items are listed under Safety Switches & Guard Locking. We suggest a last check of the output type, plug and ratings against your site documents before the order is placed; the data sheet governs.
Datasheets & Documents
- Data Sheet SICK S30B-2011DA official data sheet (part no. 1026822) Download
Reviews (0)
About brand
SICK is the German maker of industrial sensors: photoelectric and proximity sensors, safety laser scanners and light curtains, encoders, distance sensors, code readers and gas analysers. Erwin Sick, an optics engineer, founded it in Munich in 1946, and in 1952 it introduced its first marketable accident-prevention light curtain, which protected press operators by stopping the machine when a hand broke the light beam. The company moved to Waldkirch in the Black Forest in 1956 and is still headquartered there. It is a privately held company, and has been an Aktiengesellschaft (AG) since 1996.
SICK company profile
| Founded | 1946, Munich, Germany, by Erwin Sick (1909–1988) |
|---|---|
| Headquarters | Waldkirch, Baden-Württemberg, Germany (since 1956) |
| Ownership | Privately held; after the founder's death in 1988 his widow Gisela Sick became the main shareholder. Legal form SICK AG since 1996 |
| Size | More than 12,000 employees and group revenue of about EUR 2.3 billion (company figures for 2023) |
| First breakthrough | Accident-prevention light curtain for presses, shown in Hanover in 1952 |
| International growth | First foreign subsidiary in France in 1972, United States in 1976; today sales and service companies worldwide |
| Product families | Photoelectric, inductive, capacitive, magnetic and ultrasonic sensors; safety laser scanners, light curtains, safety controllers and relays; encoders and motor feedback systems; distance sensors and LiDAR; barcode and 2D code readers and machine vision; gas analysers, dust and flow measurement for process and emissions monitoring |
Milestones
- 1946: Erwin Sick receives a licence to run his engineering firm in Munich.
- 1952: The first marketable accident-prevention light curtain is presented in Hanover and goes into series production.
- 1956: The company moves to Waldkirch with 25 employees.
- 1972 and 1976: Subsidiaries are founded in France and the United States.
- 1996: SICK becomes an Aktiengesellschaft.
- Today: Sensors for factory and logistics automation, machine safety and process analysis, with a large share of revenue outside Germany.
Choosing a SICK sensor
For object detection, the sensing principle comes first. A retro-reflective sensor (WL series) sends light to a reflector and switches when an object breaks the beam; it is reliable over long distances and easy to align. A sensor with background suppression (WTB series) detects an object at a set distance and ignores what is behind it, which suits conveyors with shiny or dark backgrounds. A through-beam pair (WS/WE) gives the longest range and the highest reliability in dust. For transparent bottles and film, use a model built for transparent objects (for example WL12G-3B or WL150-P420). The digits in the code also matter: "P" usually means a PNP output and "N" NPN, and the last digits set the connector or cable. For machine guarding, a safety laser scanner such as nanoScan3 or microScan3 protects an area, while a safety controller such as Flexi Soft combines several safety devices.
Where SICK products are used
In Oman and the GCC, SICK sensors are used in packaging and bottling lines, food and beverage plants, logistics and airport baggage handling, cement and steel plants, ports and cranes, automated warehouses, and on machines built by European OEMs. SICK safety scanners guard robots and automated guided vehicles, and its encoders give position feedback on motors, hoists and conveyors.
SICK products we list
| Family | Examples |
|---|---|
| Photoelectric sensors | WL12-3P2431, WTB12-3P2431, GTB6-P4211, VL18-4P3240, WL12G-3B2531, WS/WE100, KT5W contrast, W26 IO-Link |
| Proximity, cylinder and ultrasonic sensors | IME12-08NPSZC0S, IME18-05BPSZC0S, MZT8, UM18 4-20 mA, UM30, UFN3 fork |
| Machine safety | nanoScan3, microScan3, S300 Professional, Flexi Soft FX3-CPU1, FX3-XTIO, ReLy OSSD |
| Encoders and motor feedback | DFS60B, AFM60 PROFINET, AFS60 SSI, ATM60 PROFIBUS, SRS50, EFS50 |
| Distance sensors and code readers | DT50, DL50, DT35, Lector632 |
Ordering SICK products: what we need
Send the type code and the 7-digit SICK part number from the label (for example WTB12-3P2431 together with its part number). For a replacement sensor, add the output (PNP or NPN), connection (M8, M12 or cable) and sensing distance. For encoders, add the interface (incremental, SSI, PROFIBUS, PROFINET), resolution and shaft type. For safety scanners, tell us the model and whether the existing configuration needs to be kept.
Facts checked against SICK's published company history and annual figures, October 2026.
Browse SICK products by category: Sensors & Transmitters.
Related products
Frequently Asked Questions
What protective field range does the S30B-2011DA have?
2 m
What safety level is printed in the data sheet?
SIL 2 (IEC 61508), PL d (EN ISO 13849), PFHD 8.0 x 10⁻⁸.
How many fields and monitoring cases?
24 fields in 8 field sets, 32 monitoring cases.
Can it be used stand-alone?
See the data sheet for the permitted use of this version.
Which part number is this?
Part no. 1026822, type code S30B-2011DA.
