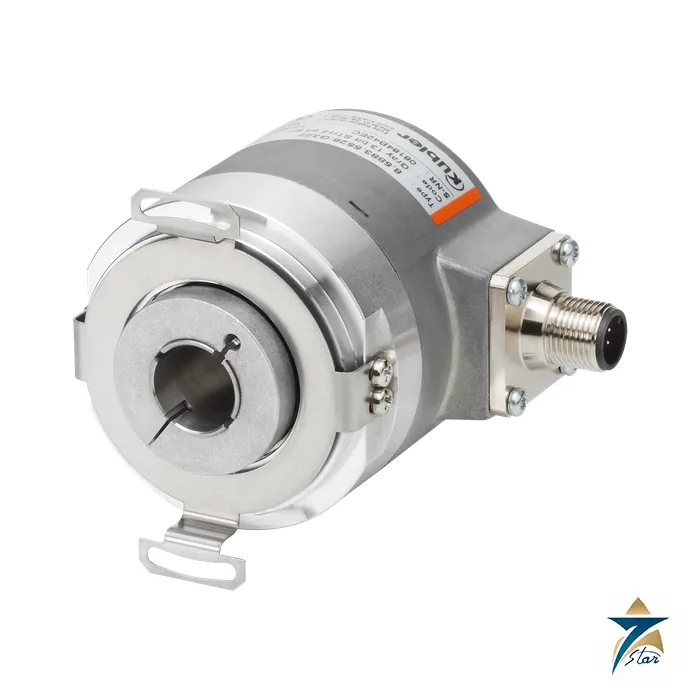

Kübler Sendix 5883 Hollow Shaft Multiturn Absolute Encoder

A hollow-shaft multiturn encoder that slides onto the motor shaft

The Kübler Sendix 5883 is the through hollow-shaft version of the Sendix 58 absolute multiturn family with SSI or BiSS output. It is pushed straight onto a drive or motor shaft and held by a stator coupling or a spring element, so no coupling is needed. Position is stored by a mechanical gear with optical scanning, which means no battery is required, and the maximum resolution is 29 bits (19 bit singleturn plus 12 bit multiturn, 4096 revolutions).

The through hollow shaft can be up to 14 mm (or 1/2 inch), and a blind hollow shaft of 15 mm is also available. Kübler names wind energy and mobile automation as proven fields of use, and the die-cast housing keeps IP67 protection on the housing side with a working range of -40 to +90 C.

Technical specifications

Parameter	Specification
Type	Sendix 5883, hollow-shaft version (order code 8.5883.xxxx.xxxx)
Principle	Absolute multiturn, mechanical gear, optical sensor
Interfaces	SSI (binary or gray) or BiSS-C (binary), optionally with 2048 ppr SinCos or RS422 (TTL-compatible) incremental track
Resolution	Singleturn 10 to 14 bit, 17 bit or 19 bit; multiturn 12 bit (4096 revolutions)
Hollow shaft	Through hollow shaft 10, 12, 14 mm, 3/8 inch or 1/2 inch; blind hollow shaft 15 mm (insertion depth max. 30 mm)
Supply voltage	5 V DC (+5 %) or 10 to 30 V DC; current max. 80 mA (5 V) or 50 mA (10 to 30 V)
Maximum speed	IP65 up to 70 C: 9000 min-1, 6000 min-1 continuous; IP67 up to 70 C: 8000 min-1, 4000 min-1 continuous
Moment of inertia	7.0 x 10-6 kgm2
Protection (EN 60529)	Housing side IP67
Working temperature	-40 to +90 C; cable version -30 to +75 C
Shock / vibration	2500 m/s2, 6 ms; 100 m/s2, 55 to 2000 Hz
Materials	Hollow shaft stainless steel; housing zinc die-cast; cable PVC (PUR for Ex 2/22)
Status and set functions	SET input or button, DIR input, status output with optional red LED
Approvals as printed	UL (file E224618), CE (EMC 2014/30/EU, RoHS 2011/65/EU), ATEX 2014/34/EU for Ex 2/22 variants

Order code 8.5883 and mounting choices

The type key is 8.5883.a b c d.e f 2 g. Flange and shaft choices decide how the encoder is fixed, so check the motor shaft diameter and the space behind the drive before selecting.

Position	Options
a Flange	1 spring element, long, IP65; 2 spring element, long, IP67; 3 stator coupling 65 mm IP65; 4 stator coupling 65 mm IP67; 5 stator coupling 63 mm IP65; 6 stator coupling 63 mm IP67
b Hollow shaft	3 = 10 mm; 4 = 12 mm; 5 = 14 mm; 8 = 3/8 inch; 9 = 1/2 inch; 6 = blind 15 mm
c Interface / supply	1 and 2 SSI/BiSS at 5 V or 10-30 V; 3 and 4 plus SinCos; 5 and 6 with sensor output; 7, 8, 9 plus RS422 incremental
d Connection	2 radial cable 1 m, B radial special length, E tangential 1 m, F tangential special length, 4 radial M23 12-pin, 6 radial M12 8-pin
e Code	B = SSI binary, C = BiSS binary, G = SSI gray
f Resolution	A = 10 bit ST + 12 bit MT; 1 = 11; 2 = 12; 3 = 13; 4 = 14; 7 = 17; 9 = 19 bit ST
g Options	1 none, 2 status LED, 3 SET button and status LED

Selection and installation notes

Slide the encoder onto the shaft, clamp it with the slotted clamping ring, and secure the housing against rotation with the spring element or stator coupling; Kübler lists a 4 mm torque pin with fixing thread (8.0010.4700.0000) for the spring-element flange. Salt-spray-tested versions such as 8.5883.24X6.XX22-C and stainless steel V4A versions (1.4404) are listed as standard types for corrosive or marine sites.

Resolution, preset value and counting direction are factory-programmable, so specify them when ordering. For a solid-shaft version see the

Kübler Sendix 5863.

, or browse other encoders. Confirm the controller supports the SSI or BiSS clock rate before ordering.

How the Kübler Sendix 5883 works

The encoder slides onto the motor shaft through its hollow shaft. A mechanical gear counts the turns. An optical sensor reads the angle in each turn. Position is held without a battery and is sent out over SSI or BiSS.

Where the Sendix 5883 is used

• Drive and motor shafts
• Wind energy
• Mobile automation
• Position feedback without a coupling
• Multiturn absolute position tasks

Selection checklist for the Sendix 5883

• Interface SSI or BiSS-C
• Singleturn resolution
• Hollow shaft diameter
• Through or blind hollow shaft
• Supply voltage
• Incremental track need
• Maximum speed
• Stator coupling type

Installation, commissioning and maintenance notes for the Sendix 5883

Push the encoder onto the motor shaft and tighten the clamp. Fix the stator coupling or the spring element. Connect the supply and the signal lines. Use the SET input to zero the position.

Requesting a quotation for the Kübler Sendix 5883

Please send the order code, the shaft diameter and the interface. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.

Sendix 5883 encoder type

It is a hollow shaft multiturn absolute encoder.

Sendix 5883 principle

It uses a mechanical gear and an optical sensor.

Sendix 5883 battery

No battery is needed.

Sendix 5883 interfaces

The interfaces are SSI and BiSS-C.

Sendix 5883 incremental track

An optional 2048 ppr SinCos or RS422 track is available.

Sendix 5883 maximum resolution

The maximum resolution is 29 bits.

Sendix 5883 multiturn range

The multiturn range is 4096 revolutions.

Sendix 5883 hollow shaft

Through hollow shafts of 10, 12 and 14 mm are offered.

Sendix 5883 blind hollow shaft

A blind hollow shaft of 15 mm is also offered.

Sendix 5883 supply voltage

The supply is 5 V DC or 10 to 30 V DC.

Sendix 5883 protection

The housing side is rated IP67.

Sendix 5883 working temperature

The working range is minus 40 to plus 90 degrees C.

Sendix 5883 housing

The housing is zinc die-cast.

Sendix 5883 shaft material

The hollow shaft is stainless steel.

Sendix 5883 shock resistance

It withstands shock of 2500 m/s2 for 6 ms.

Sendix 5883 set functions

It has a SET input, a DIR input and a status output.

Encoder records for the Sendix 5883

Record the order code, the zero position and the interface settings.

Choosing the right Sendix 5883 interface

Choose the interface from what the controller can read.

Documents and quotation

The attached datasheet (07/2026 edition) is shared with the 5863 and holds both order codes, technical data, terminal assignment, accessories and dimension drawings of the hollow-shaft version. Send the full type key, or the hollow-shaft diameter, flange, interface, resolution, connection and cable length, when requesting a quotation.
