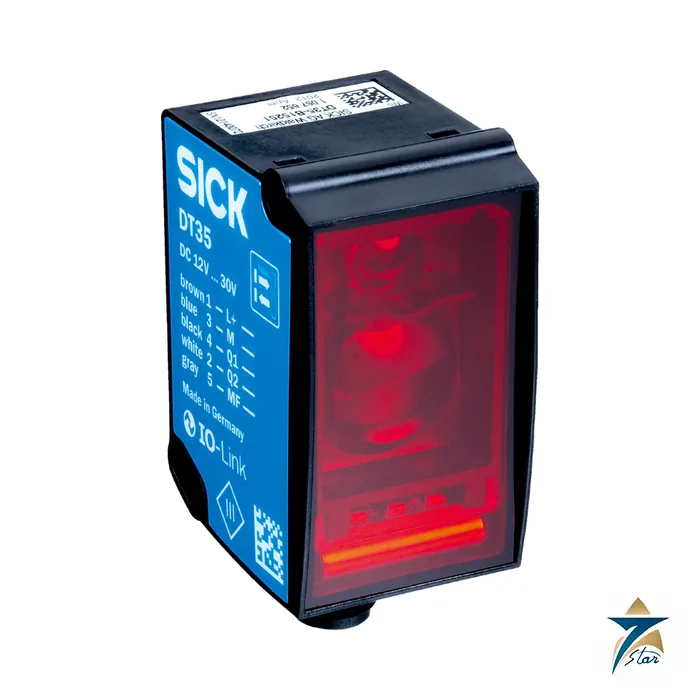

SICK DT35-B15251 Laser Distance Sensor
Overview
The SICK DT35-B15251 is a mid-range time-of-flight laser distance sensor designed for precise, non-contact distance measurement across large working ranges that ultrasonic or standard triangulation sensors cannot reach. Built on SICK’s Dx35 platform, the DT35-B15251 measures targets from 50 mm out to 12,000 mm with a single fixed measuring beam, making it a preferred solution for stacker crane positioning, bulk material level detection, and machine profile verification where longer stand-off distances and consistent accuracy are required regardless of target color or surface texture.
With engineering support in Muscat, Seven Star LLC supplies the DT35-B15251 laser distance sensor to material handling integrators, crane and hoist manufacturers, and process automation contractors across the Sultanate of Oman, Muscat, and the wider GCC region. With genuine factory stock and local calibration support, Seven Star LLC ensures the SICK DT35-B15251 reaches site with full warranty coverage and rapid technical backup.
Measurement Principle
The SICK DT35-B15251 operates on the time-of-flight (ToF) measurement principle, emitting short, high-intensity 658 nm laser pulses toward the target and precisely timing the interval before the reflected pulse returns to the receiver optics. Because the speed of light is a known constant, the sensor’s internal processor converts this elapsed time directly into a distance value with high repeatability, independent of the ambient light level in the measurement area.
Unlike triangulation-based sensors, whose accuracy degrades as the measuring distance increases, the time-of-flight principle used by the DT35-B15251 maintains consistent accuracy of approximately ±10 mm across its full 50 mm to 12,000 mm working range. As a purely optical measurement technology, it involves zero moving parts, requires no mechanical contact with the target, and is unaffected by vibration or dust settling on non-critical surfaces near the beam path – a decisive advantage over mechanical limit switches or rotary encoders in long-range positioning applications.
Beyond raw accuracy, the sensor delivers a measurement resolution of 100 μm and a repeatability figure of ≥0.5 mm (1σ), with a visible red 658 nm measuring spot approximately 15 x 15 mm at 2 m stand-off, so alignment onto small or irregular targets such as bulk material surfaces or crane rail markers can be verified visually during commissioning. The internal processor supports five selectable speed/averaging modes, trading response time against noise immunity: measurement (and corresponding switching frequency) ranges from a fast 2.5 ms cycle (333 Hz) for dynamic positioning tasks down to a heavily averaged 96.5 ms cycle (6 Hz) for stable readings on low-remission or difficult targets, giving integrators direct control over the accuracy-versus-speed trade-off for a given application.
Engineering Design of the SICK DT35-B15251
The DT35-B15251 is housed in a compact, rugged plastic enclosure measuring approximately 58.7 x 32 x 42.7 mm, engineered to mount directly onto crane structures, conveyor frames, or machine bases using standard SICK mounting brackets. The Class 1 laser source is eye-safe under normal operating conditions, and the sealed optical window keeps the emitter and receiver protected from dust ingress in an IP65/IP67-rated housing suitable for both indoor process areas and semi-exposed outdoor installations.
Electrical connection is made through a standard M12 5-pin male connector, supplying both power and signal through a single rugged cable run. The DT35-B15251 provides simultaneous analog output – selectable between 4–20 mA current loop and 0–10 V voltage signal – alongside a PNP/NPN push-pull digital switching output, and supports IO-Link V1.1 communication for digital parameter configuration, diagnostics, and remote monitoring directly from a compatible PLC or IO-Link master without additional wiring.
The sensor draws no more than 1.7 W and weighs only 65 g, keeping mechanical load and cabling requirements light when mounted on moving crane carriages or telescoping conveyor arms. Typical ambient light immunity is rated at 40 klx, allowing dependable operation under direct sunlight through warehouse skylights or on outdoor stacker cranes, while the laser emitter carries a rated service life of 100,000 hours, initialization completes in under 500 ms after power-up, and the multifunctional input allows the laser to be switched off, an external teach-in point to be set, or the output to be deactivated on command. The housing and cabling are qualified to EN 60068-2-6 and EN 60068-2-64 for vibration and EN 60068-2-27 for mechanical shock, giving the DT35-B15251 the environmental robustness expected of sensors permanently mounted on moving machinery.
Key Features
The SICK DT35-B15251 combines long-range time-of-flight measurement with flexible industrial interfacing. Core capabilities include:
- Time-of-flight laser distance measurement from 50 mm to 12,000 mm with a single fixed measuring beam.
- Measurement accuracy of approximately ±10 mm, stable across the full working range.
- Simultaneous 4–20 mA / 0–10 V analog output plus PNP/NPN push-pull digital switching output.
- IO-Link V1.1 support for digital configuration, diagnostics, and remote parameter access.
- Eye-safe Class 1 laser source with a visible red 658 nm measuring spot for straightforward alignment.
- IP65/IP67-rated compact housing suited to both indoor and semi-exposed outdoor mounting locations.
- Wide operating temperature range of –30°C to +55°C for demanding industrial environments.
- Single M12 5-pin connector combining power, analog, digital, and IO-Link communication in one cable run.
Industrial Applications
The extended measuring range and IO-Link connectivity of the DT35-B15251 make it a natural fit for stacker crane positioning, warehouse automation, and bulk material level monitoring. In automated storage and retrieval systems and overhead crane installations across Oman’s ports and logistics hubs, the SICK DT35-B15251 provides continuous, high-accuracy position feedback over distances that standard photoelectric or ultrasonic sensors cannot reliably cover.
Backed by genuine manufacturer documentation, Seven Star LLC distributes the DT35-B15251 to cement, aggregate, and bulk material handling facilities, as well as process and utility plants within the Sohar and Salalah economic zones and across the wider GCC. Its long-range, contactless measurement capability also supports tank and silo level monitoring, machine profile verification, and safety distance monitoring where reliable non-contact feedback over several meters is essential to process control.
Technical Specifications
Full technical parameters for the SICK DT35-B15251 laser distance sensor:
| Parameter | Specification |
|---|---|
| Model | SICK DT35-B15251 |
| Sensor Type | Time-of-Flight Laser Distance Sensor |
| Measuring Range | 50 mm to 12,000 mm (90% remission) |
| Measurement Accuracy | ±10 mm |
| Laser Wavelength / Class | 658 nm, Laser Class 1 |
| Analog Output | 4–20 mA / 0–10 V (selectable) |
| Digital Output | PNP/NPN Push-Pull, IO-Link V1.1 |
| Supply Voltage | 12–30 V DC |
| Enclosure Rating | IP65 / IP67 |
| Connection Type | M12 5-Pin Male Connector |
| Operating Temperature | –30°C to +55°C |
| Resolution / Repeatability | 100 μm / ≥0.5 mm (1σ) |
| Response Time (selectable) | 2.5–96.5 ms (333–6 Hz) |
| Power Consumption / Weight | ≤1.7 W / 65 g |
Request a Quote for SICK DT35-B15251 Laser Distance Sensor
To submit a formal Request for Quote (RFQ), check current availability and lead time, or download complete technical datasheets for the SICK DT35-B15251 Laser Distance Sensor, please contact Seven Star LLC today. Working closely with plant engineers in the region, our engineers are ready to assist with rapid commercial sourcing and precise distance sensor selection for material handling and process automation projects.
