SICK ARS60-H4K03600 ARS60 Encoder
Description

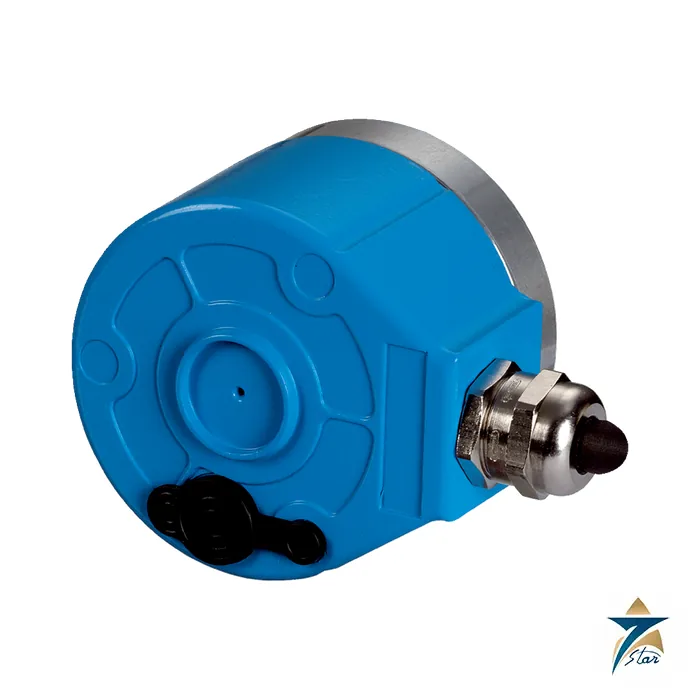

ARS60-H4K03600 is a SICK ARS60 rotary encoder (part no. 1032884) that turns shaft rotation into an electrical signal for speed and position feedback. The catalogue summary lists: singleturn or multiturn version: Singleturn; number of steps per revolution: 3,600; mechanical design: Solid shaft face mount flange 10 mm x 19 mm (With flat); communication interface: Parallel data world; connection type: Cable, 22-wire, radial, 1.5 m.
ARS60-H4K03600: function, principle and typical use
The interface decides what the controller must provide. Resolution, supply voltage and signal level in the table have to match the counter, drive or PLC card you plan to use.
Mechanical fit matters as much as electrical fit. A shaft coupling absorbs small misalignment; a rigid connection transfers it into the bearings and shortens their life.
Technical specifications
| Parameter | Specification |
|---|---|
| Type code | ARS60-H4K03600 |
| Part number | 1032884 |
| Product family | ARS60 |
| MTTFD (mean time to dangerous failure) | 300 years (EN ISO 13849-1) |
| Number of steps per revolution (max. resolution) | 3,600 |
| Measuring step | 360° /number of steps |
| Measuring step deviation | 0.016° non-binary number of steps |
| Error limits G | 0.046° (non-binary number of steps) |
| Communication interface | Parallel data world |
| Code type | Binary |
| Code sequence parameter adjustable | CW (clockwise) increasing when viewing the clockwise rotating shaft |
| Measured value backlash | 0.005° |
| Response threshold | 0.003° |
| Connection type | Cable, 22-wire, radial, 1.5 m |
| Supply voltage | 10 … 32 V |
| Operating current | Typ. 90 mA |
| Switching level of control inputs | Logic H = 0.7 x US, Logic L = 0 V … 0.3 x US |
| Actuation of set button | ≥ 100 ms |
| Mechanical design | Solid shaft, face mount flange |
| Shaft diameter | 10 mm |
| Shaft length | 19 mm |
| Characteristics of the shaft | With flat |
| Weight | Approx. 0.3 kg |
| Housing material | Aluminum die cast |
| Permissible shaft loading | 20 N (radial); 10 N (axial) |
| Operating speed | ≤ 6,000 min⁻¹ with shaft seal; ≤ 10,000 min⁻¹ without shaft seal |
| Enclosure rating | IP66, cable (IEC 60529) |
| Operating temperature range | –20 °C … +85 °C |
| EU declaration of conformity | Yes |
| UK declaration of conformity | Yes |
| Declarations and certificates in the data sheet | EU declaration of conformity; UK declaration of conformity; ACMA declaration of conformity; Moroccan declaration of conformity; China RoHS; cULus certificate; Information according to Art. 3 of Data Act (Regulation EU 2023/2854) |
Selection and installation notes for ARS60-H4K03600
Derived from the listed resolution: 3600 steps per revolution correspond to about 0.1 degrees per step of the absolute position value. This is a derived value for orientation.
Electrically and for the interface, the listed values are interface parallel data world; connection cable, 22-wire, radial, 1.5 m; resolution 3,600; supply 10 … 32 V; current typ. 90 mA.
Mechanical and environmental data for this type: shock: 50 g, 11 ms (EN 60068-2-27); weight: approx. 0.3 kg; storage temperature: –40 °C … +100 °C, without package; housing: aluminum die cast; enclosure rating: IP66, cable (IEC 60529); operating temperature: –20 °C … +85 °C.
Keep the connector orientation in mind when ordering: radial and axial outlets are different type codes and affect the cable route.
For replacement of an installed encoder, match flange, shaft, interface and resolution, and also the pin assignment of the connector.
Documents and quotation
The official SICK data sheet for ARS60-H4K03600 (part no. 1032884) is attached as a PDF. Quotations are prepared by Seven Star LLC, an independent supplier in Muscat, once you send the part number, quantity and site through the RFQ form. Browse more in Encoders. Compare the complete type code with your existing unit and controller before ordering; the data sheet prevails if it differs from this page.
