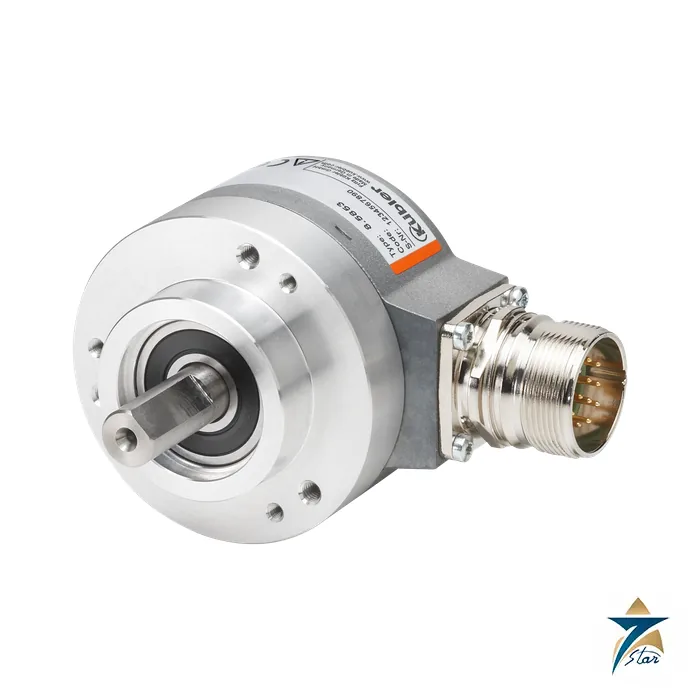

Kübler Sendix 5853 Singleturn Absolute Encoder

Name: Kübler Sendix 5853 Singleturn Absolute Encoder – Datasheet
Brand: Kübler
SKU: Sendix 5853

A high-resolution singleturn encoder with BiSS electronic data sheet

The Kübler Sendix 5853 is a solid-shaft absolute singleturn encoder with optical sensor technology and a maximum resolution of 21 bits. It reports one revolution as an absolute position through SSI or BiSS, so the position is known immediately after power-up, with a position data refresh rate of 1 microsecond or better up to 14 bit. The through hollow-shaft sibling is the Sendix 5873.

Kübler highlights the BiSS-C BP3 encoder profile with an electronic data sheet for easy integration, a sturdy Safety-Lock bearing construction against vibration and installation errors, and special versions for direct drives in lift technology. IP67 housing protection and -40 to +90 C make it suitable for outdoor machines.

Technical specifications

Parameter	Specification
Type	Sendix 5853, shaft version (order code 8.5853.xxxx.xxxx)
Principle	Absolute singleturn, optical sensor
Interfaces	SSI (binary or gray) or BiSS-C (binary, BP3 profile), optionally with 2048 ppr SinCos or RS422 (TTL-compatible) incremental track
Resolution	10 to 14 bit, 17, 19 and 21 bit (21 bit only with interface codes 1 and 2)
Supply voltage	5 V DC (+5 %) or 10 to 30 V DC
Current consumption (no load)	5 V DC: max. 70 mA; 10 to 30 V DC: max. 45 mA
BiSS clock rate	50 kHz to 10 MHz; max. update rate below 15 microseconds depending on clock and data length
Data refresh rate	Singleturn resolution up to 14 bit: 1 microsecond or better; above 14 bit: 4 microseconds or better
Maximum speed (shaft)	IP65 up to 70 C: 12000 min-1, 10000 min-1 continuous; IP67 up to 70 C: 11000 min-1, 9000 min-1 continuous
Shaft load	Radial 80 N, axial 40 N
Starting torque (20 C)	IP65 below 0.01 Nm; IP67 below 0.05 Nm
Protection (EN 60529)	Housing IP67; shaft side IP65, optionally IP67
Working temperature	-40 to +90 C
Shock / vibration	2500 m/s2, 6 ms; 100 m/s2, 55 to 2000 Hz
Materials	Shaft stainless steel; flange aluminum; housing zinc die-cast; cable PVC (PUR for Ex 2/22)
Weight	Approx. 0.35 kg
Approvals as printed	UL (file E224618), CE (EMC 2014/30/EU, RoHS 2011/65/EU), ATEX 2014/34/EU for Ex 2/22 variants

Order code 8.5853 explained

The type key is 8.5853.a b c d.e f 2 g. The datasheet shows the same flange, shaft and connection choices as the multiturn 5863, with a different resolution table.

Position	Options
a Flange	1 clamping IP65 / 3 clamping IP67 (58 mm); 2 synchro IP65 / 4 synchro IP67 (58 mm); 5 square IP65 / 7 square IP67 (63.5 mm)
b Shaft	1 = 6 x 10 mm; 2 = 10 x 20 mm; 3 = 1/4 inch x 7/8 inch; 4 = 3/8 inch x 7/8 inch, all with flat
c Interface / supply	1 SSI/BiSS 5 V; 2 SSI/BiSS 10-30 V; 3 and 4 with SinCos; 5 and 6 with sensor output; 7, 8, 9 with RS422 incremental
d Connection	1/A axial cable, 2/B radial cable, 3 axial M23 12-pin, 4 radial M23 12-pin, 5 axial M12 8-pin, 6 radial M12 8-pin
e Code	B = SSI binary, C = BiSS binary, G = SSI gray
f Resolution	A = 10 bit, 1 = 11, 2 = 12, 3 = 13, 4 = 14, 7 = 17, 9 = 19, C = 21 bit (interface 1 or 2 only)
g Options	1 none, 2 status LED, 3 SET button and status LED; Ex 2/22 and salt spray options on request

Choosing singleturn or multiturn

A singleturn encoder gives an absolute position over one revolution only, which suits rotary tables, dampers, positioners and drives with a gear stage or a short travel. If the application needs the number of revolutions as well, for example a long linear axis or a winch, choose a multiturn type such as the Sendix 5863. Resolution, preset value and counting direction are factory-programmable, so state them when ordering.

Browse other encoders or compare with the published SICK DFS60B incremental encoder“>SICK DFS60B. Check the clock rate and supply of the controller and the connection type before ordering.

How the Kübler Sendix 5853 works

A disc with a fine code pattern turns with the shaft. A light source and a sensor read the pattern and give one absolute value for each shaft angle. The electronics send this value over SSI or BiSS to the controller when it asks. The value stays correct after a power loss, so no homing run is needed.

Where the Sendix 5853 is used

Servo and direct drives
Lift technology
Machine tools
Packaging machines
Outdoor machines

Selection checklist for the Sendix 5853

SSI or BiSS interface
Resolution in bits
Incremental track option
Supply voltage
Shaft size
Flange type
Connector or cable outlet
Protection class

Installation, commissioning and maintenance notes for the Sendix 5853

Fit the encoder to the flange and join the shaft with a flexible coupling. Keep the radial and axial loads within the limits. Connect the supply and the data lines with a shielded cable. Check the position value at both ends of the travel. Keep the housing sealed and the cable undamaged.

Requesting a quotation for the Kübler Sendix 5853

Please send the order code or the interface, the resolution and the shaft data. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.

Sendix 5853 resolution

The resolution reaches 21 bit with the right interface code.

Sendix 5853 interfaces

The interfaces are SSI and BiSS-C, with an optional incremental track.

Sendix 5853 supply

The supply is 5 V DC or 10 to 30 V DC.

Sendix 5853 refresh rate

The data refresh rate is 1 microsecond or better up to 14 bit.

Sendix 5853 maximum speed

The IP65 shaft version runs up to 12000 min-1.

Sendix 5853 shaft load

The radial load is 80 N and the axial load is 40 N.

Sendix 5853 protection

The housing is IP67 and the shaft side is IP65.

Sendix 5853 temperature

The working range is minus 40 to plus 90 degrees C.

Sendix 5853 shock and vibration

It withstands 2500 m/s2 shock and 100 m/s2 vibration.

Sendix 5853 materials

The shaft is stainless steel and the housing is zinc die-cast.

Encoder records for the Sendix 5853

Record the order code, the serial number and the zero position set at commissioning.

Choosing the right Sendix 5853 version

Choose the interface your controller reads, and pick the resolution from the positioning accuracy needed.

Documents and quotation

The attached datasheet (07/2026 edition) covers the 5853 and 5873 with order codes, technical data, terminal assignment, accessories and dimension drawings. Send the full type key, or the shaft, flange, interface, resolution, connection and cable length required, when requesting a quotation.
