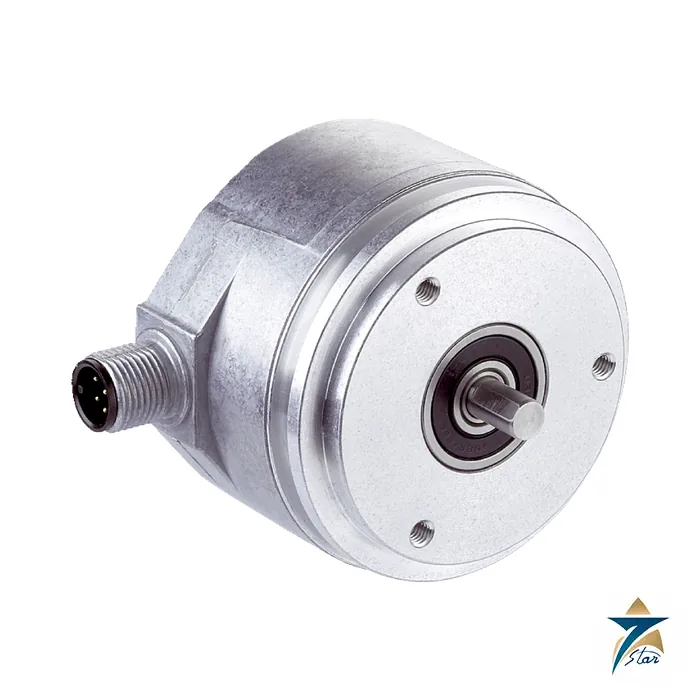

SICK AFS60A-S1PC262144 AFS/AFM60 SSI Encoder
Description
AFS60A-S1PC262144 is a SICK AFS/AFM60 SSI rotary encoder (part no. 1037499) that turns shaft rotation into an electrical signal for speed and position feedback. The catalogue summary lists: singleturn or multiturn version: Singleturn; number of steps per revolution: 262,144 (18 bit); mechanical design: Solid shaft Servo flange 6 mm x 10 mm (With flat); communication interface: SSI, programmable; connection type: Male connector, M12, 8-pin, radial.
How the AFS60A-S1PC262144 works and where it fits
An encoder is the feedback element of a motion axis: the controller reads its signal to know how far, how fast and in which direction a shaft has turned. Differential TTL/RS-422 and HTL push-pull outputs suit long cables and noisy drive environments, SSI, fieldbus and Ethernet-based types report absolute position as data.
Reference or index pulses give an incremental system a home position per revolution, which a homing routine uses after power-up. The permissible speed is limited mechanically by the bearings and electrically by the output frequency, whichever is reached first.
Technical specifications
| Parameter | Specification |
|---|---|
| Type code | AFS60A-S1PC262144 |
| Part number | 1037499 |
| Product family | AFS/AFM60 SSI |
| MTTFD (mean time to dangerous failure) | 250 years (EN ISO 13849-1) |
| Number of steps per revolution (max. resolution) | 262,144 (18 bit) |
| Error limits G | 0.03° |
| Communication interface | SSI |
| Position forming time | < 1 µs |
| Code type | Gray |
| Code sequence parameter adjustable | CW/CCW (V/R̅) parameter adjustable |
| Clock frequency | ≤ 2 MHz |
| Set (electronic adjustment) | H-active (L = 0 – 3 V, H = 4,0 – Us V) |
| CW/CCW (counting sequence when turning) | L-active (L = 0 – 1,5 V, H = 2,0 – Us V) |
| Connection type | Male connector, M12, 8-pin, radial |
| Supply voltage | 4.5 … 32 V |
| Power consumption | ≤ 0.7 W (without load) |
| Mechanical design | Solid shaft, Servo flange |
| Shaft diameter | 6 mm |
| Shaft length | 10 mm |
| Characteristics of the shaft | With flat |
| Weight | 0.3 kg |
| Shaft material | Stainless steel |
| Flange material | Aluminum |
| Housing material | Aluminum die cast |
| Permissible shaft loading | 80 N (radial); 40 N (axial) |
| Operating speed | ≤ 9,000 min⁻¹ |
| Enclosure rating | IP65, shaft side (IEC 60529); IP67, housing side (IEC 60529) |
| Operating temperature range | –40 °C … +100 °C |
| EU declaration of conformity | Yes |
| UK declaration of conformity | Yes |
| Declarations and certificates in the data sheet | EU declaration of conformity; UK declaration of conformity; ACMA declaration of conformity; Moroccan declaration of conformity; China RoHS; cULus certificate; Information according to Art. 3 of Data Act (Regulation EU 2023/2854) |
Selection and installation notes for AFS60A-S1PC262144
Derived from the listed resolution: 262144 steps per revolution correspond to about 0.0013733 degrees per step of the absolute position value. This is a derived value for orientation.
For the control cabinet and the cable run, the relevant figures are supply 4.5 … 32 V; resolution 262,144 (18 bit); interface SSI; connection male connector, M12, 8-pin, radial; power draw ≤ 0.7 W (without load).
For the mounting location, note housing: aluminum die cast; weight: 0.3 kg; operating temperature: –40 °C … +100 °C; storage temperature: –40 °C … +100 °C, without package; enclosure rating: IP65, shaft side (IEC 60529); IP67, housing side (IEC 60529); shock: 60 g, 6 ms (EN 60068-2-27).
The type code carries all of these, so a single changed letter can mean a different shaft or output; compare the full code with your existing encoder.
For installation, use a flexible coupling on solid-shaft versions, respect the permissible axial and radial shaft loads, ground the cable screen as the data sheet recommends and keep encoder cables away from motor power cables.
Documents and quotation
Attached to this page: the SICK data sheet for AFS60A-S1PC262144, part no. 1037499, as published by SICK. Quotations are prepared by Seven Star LLC, an independent supplier in Muscat, once you send the part number, quantity and site through the RFQ form. Browse more in Encoders. Compare the complete type code with your existing unit and controller before ordering; the data sheet prevails if it differs from this page.
