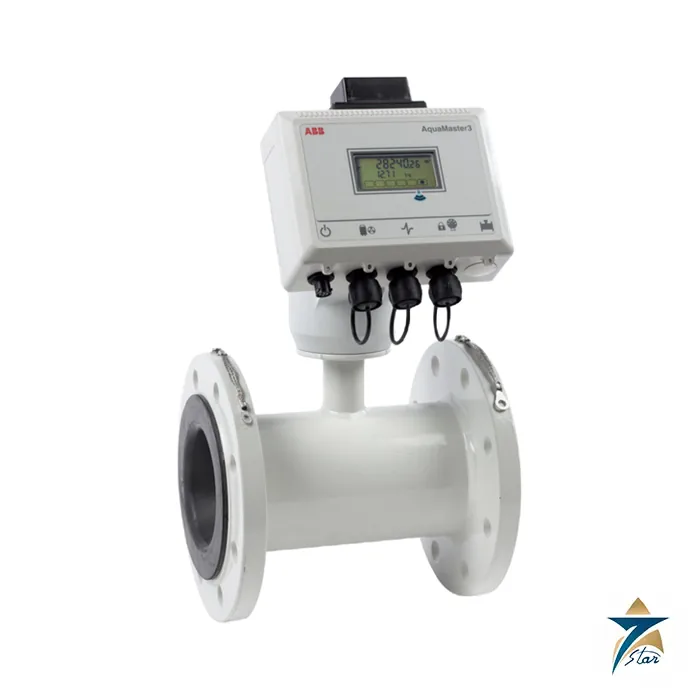

ABB am3 AquaMaster3

Overview

The ABB AquaMaster3 (am3) is a battery, mains, or solar-powered electromagnetic flowmeter purpose-built for the water industry – potable water distribution, irrigation, and wastewater networks – where remote, unpowered, or infrequently accessed installation points rule out a conventional mains-fed flowmeter. Its standout characteristic is up to 15 years of maintenance-free battery operation, distinguishing it from ABB’s line-powered ProcessMaster and WaterMaster instruments built for continuously powered process and utility installations.

Seven Star LLC supplies the AquaMaster3 as a trusted supplier of ABB products across Oman and the GCC, specifying it for remote metering points, non-revenue water programs, and irrigation networks where running mains power to the meter location is impractical or uneconomical.

Operating Principle

Like every ABB electromagnetic flowmeter, the AquaMaster3 measures flow through Faraday’s law of induction – a conductive fluid moving through a magnetic field generates a voltage proportional to its velocity, sensed by electrodes and converted into a flow rate – but its low-power electronics and pulsed excitation are engineered specifically to extend battery life to years rather than days.

Integrated pressure and temperature sensors add context to the flow reading, and GSM/SMS/IoT communication pushes data to remote SCADA or utility management systems without requiring a site visit, supporting leak detection and non-revenue water analysis from data the meter reports on its own schedule.

Engineering Design of the AquaMaster3

The IP68-rated enclosure is fully submersible, allowing installation in flooded chambers or underground vaults without protective housing, and the sensor design minimizes pressure drop while permitting installation in any orientation, simplifying retrofit into existing pipeline layouts.

Accuracy is rated up to ±0.2% of flow rate, and the meter includes tamper detection and security features relevant to utility billing metering, where unauthorized meter interference is a genuine revenue protection concern rather than a theoretical risk.

Key Features

• Mains, battery, or solar-powered operation with up to 15 years battery life
• IP68-rated, fully submersible enclosure for flooded chamber or underground installation
• Accuracy up to ±0.2% of flow rate
• Integrated pressure and temperature sensors
• GSM/SMS/IoT communication for remote data access
• Tamper detection and advanced security features
• Installation in any orientation
• Supports leak detection, non-revenue water management, and consumption analytics

Industrial Applications

The AquaMaster3 is used across municipal water distribution networks, irrigation systems, and remote wastewater monitoring points in Muscat, Sohar, Salalah, and the wider GCC wherever mains power is unavailable or a site visit for data collection is impractical.

Seven Star LLC, as a trusted ABB supplier, positions the AquaMaster3 specifically for these remote, unpowered, or infrequently accessed installations, distinct from the mains-fed WaterMaster (see related product) used for continuously powered utility mains metering.

Technical Specifications

Why Choose Seven Star LLC for the ABB AquaMaster3

Because the AquaMaster3’s core value proposition is years of unattended, low-maintenance operation at a remote site, we help utilities and irrigation network operators confirm the power option, battery, solar, or mains, that genuinely matches the installation’s realistic long-term access frequency before an order is placed, since choosing battery power for a site that actually receives regular maintenance visits wastes the meter’s key advantage, while choosing mains power for a genuinely remote site defeats the purpose entirely. We also confirm the GSM/SMS/IoT communication configuration against your utility’s existing SCADA or data management platform, avoiding a data integration gap discovered only after the meter is already installed underground.

For municipal water authorities running active non-revenue water reduction programs, we help plan AquaMaster3 deployment around known problem zones in the distribution network, since the meter’s leak-detection-supporting data is genuinely most valuable when it is placed exactly where consumption discrepancies are already suspected to exist. Where a utility is standardizing remote metering across multiple zones, we are glad to review the existing meter inventory and communication infrastructure before recommending a rollout plan.

Supporting Water Utilities Across Oman and the GCC

Non-revenue water, the gap between water put into a distribution system and water actually billed to customers, is a genuine and ongoing financial and resource concern for utilities across the entire region, and remote metering technology like the AquaMaster3 gives utilities real visibility into consumption patterns at points along the network that would otherwise go completely unmonitored between infrequent manual meter readings. The meter’s tamper detection features add a further layer of protection specifically relevant to billing accuracy, flagging unauthorized interference that a simple mechanical meter would never detect at all, let alone report back to the utility automatically.

Seven Star LLC, as a trusted supplier of ABB products, supports water authorities and irrigation network operators across Oman and the GCC with AquaMaster3 specification, installation guidance for the fully submersible IP68 enclosure in flooded chambers, and ongoing coordination with ABB on documentation and lead times for larger utility-scale metering rollouts. We help plan phased deployments so a utility’s remote metering investment is targeted first at the specific network sections where the resulting data will have the most immediate operational value and the clearest return.

Request a Quote for ABB am3 AquaMaster3

Contact Seven Star LLC to specify an ABB AquaMaster3 for a remote or battery-powered water metering point in Oman and the GCC.
