KRACHT

Gear technology runs through the whole KRACHT catalog: gear pumps to move oil, gear flow meters to measure it, gear motors to drive with it, and the valves that protect the circuit. The company was established in 1911 and is based in Werdohl, Germany. Seven Star LLC lists KRACHT pumps, flow meters, valves and hydraulic motors, and sources them by type key for machinery and marine users in Oman.

Show sidebar

Brand profile

About KRACHT

All brands →

Founded: 1911
Headquarters: Werdohl, Germany
Speciality: Gear pumps and flow measurement devices
Listed with us: 16 products in 4 categories

KRACHT pumps, flow meters and valves listed

The listing follows four product groups, pumps, fluid measurement, valves and drives:

Pump technology: KF gear pumps for transfer of lubricating and other fluids, the KF-F version for fuels, and KP high pressure gear pumps

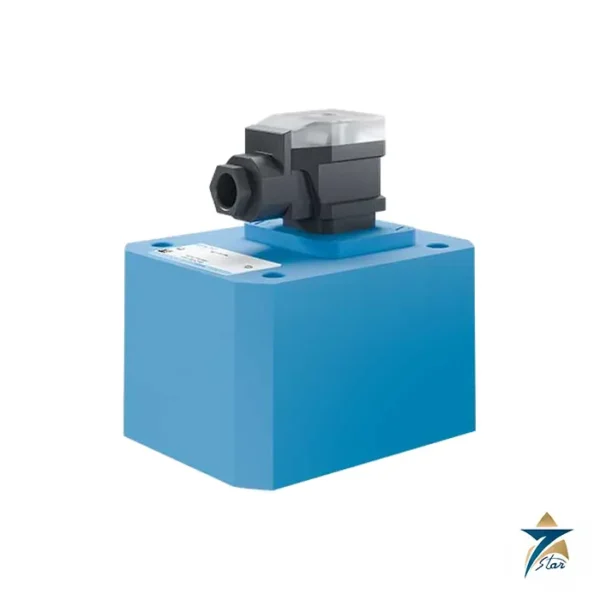

Fluid measurement technology: gear type flow meters such as the VCA in aluminum
Valve technology: SPV and SPVF pressure relief valves, the DBD directly controlled poppet valve, HV and HVF pilot operated valves and the DV B hydraulically pilot controlled valve
Drive technology: KM hydraulic gear motors

Where KRACHT equipment is used

KRACHT equipment serves the marine, renewable energy, process technology and hydraulics industries. In practice that means lube oil and fuel oil transfer on engines, gearboxes and compressors, oil supply units, and metering of oils, resins, paints and other viscous media with gear flow meters in dosing and test bench systems. Enquiries from the GCC are mostly for a KRACHT pump or valve fitted to an imported machine or a ship’s auxiliary system.

Ordering KRACHT parts: what we need

KRACHT products carry a type key on the nameplate that encodes size, direction of rotation, shaft end, housing and seal material, connections and special numbers. An example from this page is SPV 10 L1G 1 A 12. Send the complete key and the serial or order number shown with it. If the plate is damaged, send the fluid and viscosity, flow rate, operating pressure and temperature, drive speed, port type and size, and photos with main dimensions. For KRACHT flow meters add the measuring range and the pickup or electronics required. We compare the key with KRACHT documentation and supply the manufacturer’s data sheet on request.

KRACHT products by category

Request a Quote for KRACHT Products

Looking for KRACHT parts not listed here, or pricing for a project? Send us the part numbers and quantities. Seven Star LLC sources genuine KRACHT products for customers across Oman and the GCC and replies with a formal quotation.

Free, no-obligation quotation · takes about 1 minute

Other enquiries: [email protected] · WhatsApp

Frequently Asked Questions

How do I read the type key on a KRACHT gear pump?

The key starts with the series, such as KF, followed by the nominal size, which reflects the displacement per revolution. Further characters define direction of rotation, shaft and flange version, housing material, seal type and material, and the port design. A special number at the end marks a non-standard build. Copy the full key from the nameplate when asking for a quotation.

What must match when replacing a KRACHT pump on an existing motor?

Displacement, direction of rotation, shaft end, mounting flange and port positions all have to match, or the pump will not fit the bell housing and coupling. Seal material must suit the fluid and temperature. If the pump has a built-in pressure relief valve, its setting range matters too. The type key covers these points, so send it complete.

How does a KRACHT gear type flow meter work and what signal does it give?

The liquid turns a pair of measuring gears, and each tooth passing a sensor represents a fixed small volume. The meter therefore delivers a pulse signal proportional to the volume that has passed. Evaluation electronics convert pulses into flow rate or totals. Send the fluid, viscosity range, flow range, pressure and the signal your controller expects.

Which KRACHT pressure relief valve do I need?

Selection depends on flow rate, pressure setting range, whether a directly controlled or pilot operated design is required and how the valve is mounted, for example inline, on a subplate or on a pump. Series such as SPV, DBD and HV cover these cases. Send the type key of the existing valve or the circuit data and we will check it against the manufacturer's sheets.

Is Seven Star LLC a distributor of KRACHT?

No. Seven Star LLC is an independent supplier and is not an authorized distributor or trading partner of KRACHT. We source KRACHT gear pumps, flow meters, valves and motors through commercial channels, verify the type key against the manufacturer's documentation, and provide the KRACHT data sheet and manufacturer-issued certificates with the order on request.
