Brand: ABB

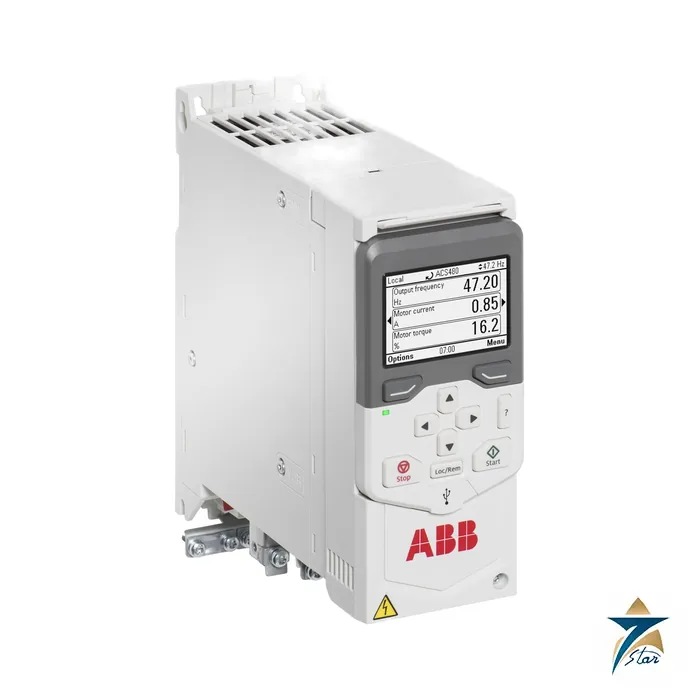

ABB ACS480-04-026A-4 General Purpose Drive 11 kW 25 A
Description
11 kW module drive on frame R3
ACS480-04-026A-4 is an ABB ACS480 general purpose drive in module construction for three-phase 380 to 480 V supplies. The hardware manual lists 11 kW at 25 A nominal output on frame R3, a body 172 mm wide, 220 mm high and 208 mm deep that weighs 2.5 kg in IP20 form. At 11 kW it completes frame R3 and covers heavier conveyor and mixer duties.
Basic equipment covers a cold configuration adapter connection for CCA-01, a front option slot and a side option slot, a standard ACS-AP-S assistant control panel and an RIIO-01 module with digital, analog and relay I/O plus EIA-485. Related products sit in AC drives; the wall-mounted sister platform is on the ABB ACS580 page.
Technical specifications
| Parameter | Specification |
|---|---|
| Type designation | ACS480-04-026A-4 |
| Series / construction | ACS480 / 04 = module, IP20 (UL open type) |
| Supply voltage | 3-phase, 380 to 480 V (code 4) |
| Frame size | R3 |
| Nominal use | 11 kW, 25 A |
| Light-duty use | 11 kW, 23.8 A |
| Heavy-duty use | 7.5 kW, 17 A |
| Maximum current | 30.6 A |
| Input current (no choke / with choke) | 31.8 A / 25 A |
| gG fuse (IEC) | 50 A, OFAF000H50 |
| gR fuse (IEC) | 80 A, 170M2699 |
| Miniature circuit breaker | S 203P-B 50 |
| Typical power loss / air flow / noise | 390 W / 128 m3/h / 66 dB(A) |
| Derating factor at 8 / 12 kHz | 0.67 / 0.51 |
| Dimensions IP20 (H x W x D) | 220 x 172 x 208 mm |
| Weight IP20 | 2.5 kg |
Ratings and overload of the ACS480-04-026A-4
For a pump or fan, light duty at 23.8 A (11 kW) normally applies; for conveyors or mixers with high starting torque, use heavy duty, 17 A (7.5 kW). ABB lists a maximum current of 30.6 A. Input current is 31.8 A without choke and 25 A with choke.
Upstream protection: 50 A gG (OFAF000H50, I2t 15500 A2s) or 80 A gR (170M2699); a breaker option is S 203P-B 50. Heat loss is about 390 W (1331 BTU/h) and air flow 128 m3/h, with noise of 66 dB(A).
Derating matters in warm or high-frequency applications: the factor for this type is 0.67 at 8 kHz and 0.51 at 12 kHz. At +50 to +60 degrees C the output current falls by 1% per additional degree, and above 1000 m by 1% per 100 m. ABB permits 4 kHz without derating.
Physical data: frame R3, 172 x 220 x 208 mm, 2.5 kg, free space 75 mm above and below. UL Type 1 kit adds hood and connection box (329 mm, 3.2 kg). Cable guidance: 100 m maximum for operation, and for EMC 30 m for category C3 and 10 m for C2 with the internal filter, or 40 m for C1, C2 and C3 with the optional external filter.
Options that change the order
ACS480-04-026A-4 is composed of ACS480 (series), 04 (module), 026A (size) and 4 (input voltage). Typical additions are K491 for FMBT-21 Modbus/TCP, K492 for FPNO-21 PROFINET IO, L511 for the BREL-01 relay module and L515 for the BIO-01 I/O module; ABB also offers printed manuals in several languages through R700-series codes.
Other manual data: a short-circuit proof motor output, natural convection on R0 and a cooling fan on R1 to R4, a choice of an IEC type or a UL (NEC) type for North America and an input frequency of 47 to 63 Hz.
Datasheet and ordering notes
All figures come from ABB’s ACS480 general purpose drives hardware manual (3AXD50000047392, revision F), linked on this page. Seven Star LLC supplies the ACS480-04-026A-4 on request from Muscat; send the motor nameplate, supply voltage and fieldbus needs with your RFQ and the quotation states availability and lead time.
Confirm before ordering: the exact type code and options, motor current at your voltage, the cabinet cooling and the derating for site temperature and altitude.
Datasheets & Documents
- acs480hw Manual Download
Reviews (0)
About brand
ABB is the Swiss-Swedish engineering group for electrification and automation: low voltage drives, motors, circuit breakers and motor control, process instruments and analysers, control systems and robots. It was formed on 5 January 1988 by the merger of two older companies. ASEA was founded in Västerås, Sweden, in 1883 by Ludvig Fredholm to make electric lighting and generators. BBC Brown Boveri was founded in Baden near Zurich in 1891 by Charles E. L. Brown and Walter Boveri. ABB Ltd is incorporated in Switzerland, headquartered in Zurich and listed on the SIX Swiss Exchange and Nasdaq Stockholm.
ABB company profile
| Formed | 5 January 1988, by the merger of ASEA (Sweden) and BBC Brown Boveri (Switzerland), each holding 50% |
|---|---|
| ASEA | Founded 1883 in Västerås, Sweden, by Ludvig Fredholm; first products electric lighting and generators |
| Brown, Boveri & Cie | Founded 1891 in Baden, Switzerland, by Charles E. L. Brown and Walter Boveri |
| Headquarters | Zurich, Switzerland; ABB Ltd became the group holding company in 1999 |
| Ownership | Public company listed on SIX Swiss Exchange and Nasdaq Stockholm |
| Brands in the group | Baldor (US motors, acquired 2011), B&R (machine automation, acquired 2017), K-TEK level instruments, Endura and Navigator analysers, SACE breakers |
| Product families | Low and medium voltage drives (ACS series), motors, SACE Tmax and Emax breakers, contactors and soft starters, flow, pressure, temperature and level instruments, liquid and gas analysers, Contrac actuators, AC500 PLCs, Ability System 800xA and S800 I/O, protection relays, robots |
Milestones
- 1883: ASEA is founded in Västerås, Sweden.
- 1891: Brown, Boveri & Cie is founded in Baden, Switzerland.
- 1987–1988: The merger is announced on 10 August 1987; ABB Asea Brown Boveri starts operating on 5 January 1988.
- 1999: ABB Ltd, incorporated in Switzerland, becomes the single holding company of the group.
- 2011 and 2017: Baldor Electric and B&R join ABB.
- 2020: ABB sells its power grids business to Hitachi, focusing on electrification, motion, process and machine automation.
Choosing an ABB drive
ABB's ACS drive codes are easy to read once you know the pattern. In ACS580-01-046A-4, "ACS580" is the drive family, "01" means a wall-mounted single drive, "046A" is the rated output current (about 46 A) and "-4" means a 380–480 V supply. The family is chosen by application: ACS355 for compact machinery, ACS310 for simple pumps and fans, ACS580 as the general-purpose drive, ACQ580 for water and wastewater with pump functions such as pipe fill and dry-run protection, and ACS880 for heavy industrial duty with direct torque control. Size the drive on the motor's full-load current, not only its kW rating, and allow derating for the high ambient temperatures common in Gulf electrical rooms.
Where ABB products are used
In Oman and the GCC, ABB drives and motors run pumps, fans and compressors in water and wastewater plants, district cooling, oil and gas and industry. ABB flowmeters, level instruments and analysers are used in water utilities, power and desalination plants and refineries, and SACE breakers protect switchboards in buildings and plants.
ABB products we list
| Family | Examples |
|---|---|
| AC drives | ACS580, ACS580-01-046A-4, ACQ580, ACS355, ACS310, ACS880-01, FEN-31 encoder module |
| Breakers, motor control and protection | SACE Tmax XT, XT3N 250, SACE Emax 2, AF09 contactor, PSR soft starter, REM615 relay |
| Flow measurement | ProcessMaster FEP300, AquaMaster4, CoriolisMaster FCB430, VortexMaster FSV430, SwirlMaster FSS430, OriMaster FPD500 |
| Pressure, temperature and level | 266DRH, 267CS multivariable, TTH300, K-TEK AT100, LMT200, MT5000 GWR, KM26 gauge |
| Analysers | Endura AZ20, AK100 hydrogen purity, Navigator AW641 silica, AW402 chlorine, AWT210 |
| Control systems and actuators | AC500, AC500-S, S800 AI810, AC 800F SA 811F, Contrac RSD50, Contrac RHD4000 |
Ordering ABB products: what we need
Send the full type code from the nameplate (for example ACS580-01-046A-4 or 266DSH...) and, for spare parts, the ABB ID number (such as 3BSE008508R1 or 1SBL176001R3010). For drives, add the motor power and current and any option codes (+...). For instruments, send the complete order code, which sets range, materials and approvals. Baldor motors are listed on their own brand page.
Facts checked against ABB company filings and published histories of ASEA and Brown, Boveri & Cie, October 2026.
Related products
Frequently Asked Questions
What are the ratings of the ACS480-04-026A-4?
ABB lists 25 A nominal for 11 kW, 23.8 A light duty for 11 kW and 17 A heavy duty for 7.5 kW, with a maximum current of 30.6 A.
Which fuse does the manual give for the ACS480-04-026A-4?
The manual lists 50 A gG fuses of type OFAF000H50, 80 A gR fuses of type 170M2699, or the circuit breaker S 203P-B 50.
How large and heavy is the ACS480-04-026A-4?
Frame R3 measures 220 mm high, 172 mm wide and 208 mm deep in IP20 and weighs 2.5 kg; with the UL Type 1 kit it weighs 3.2 kg.
Does the ACS480-04-026A-4 need derating at higher switching frequency?
Yes. ABB gives a derating factor of 0.67 at 8 kHz and 0.51 at 12 kHz; no derating is needed at 4 kHz.
What is included in the standard ACS480-04-026A-4 unit?
The standard unit has the ACS-AP-S assistant panel, the RIIO-01 I/O and EIA-485 module, an EMC category C2 filter, Safe Torque Off and a brake chopper in IP20 module form.
