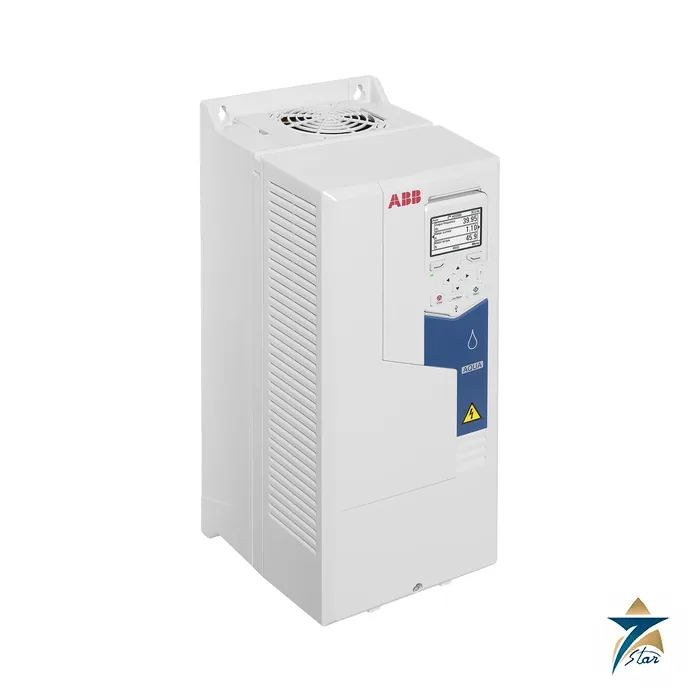

ABB ACQ580-01-05A7-4 Water Drive 2.2 kW 5.6 A

Using the ACQ580-01-05A7-4 on a pump station

It is the 2.2 kW step on frame R1, suited to small booster and dosing pumps. The catalogue type for this duty is the ACQ580-01-05A7-4: three-phase, 2.2 kW, 5.6 A nominal, frame R1. It carries the all-compatible drives platform with a Hand-Off-Auto control panel as standard, so operators in a pump house get an interface designed around manual and automatic modes.

Application software for pumping is part of the drive, for example soft pipe filling to avoid pressure peaks, quick ramps that reduce wear on submersible pumps, pump priority and auto-change for parallel pumps and multi-pump control. See related products under AC drives; the series is introduced on the ABB ACQ580 page.

Technical specifications

Duty ratings of the ACQ580-01-05A7-4

ABB’s rating table lists maximum output current 7.2 A, nominal current 5.6 A, light-duty current 5.3 A and heavy-duty current 4 A for this type, matching 2.2, 2.2 and 1.5 kW motors respectively. The overload reserves are 110% and 150% for one minute every ten minutes (derived values about 5.8 A and 6 A). The table is valid at +40 degrees C.

Cabinet data from the catalogue: heat dissipation about 85 W, air flow 43 m3/h and noise up to 59 dBA at full fan speed. Input protection is 25 A IEC (170M1561) or 15 A UL (JJS-15). ABB notes that the heat figure is for thermal design, not for Ecodesign ratings.

Mounting space for the ACQ580-01-05A7-4: 125 mm wide, 223 mm deep and 373 mm high in IP21 form, 4.6 kg. IP55 needs 128 mm by 233 mm, stands 403 mm tall and weighs 4.8 kg. With a main switch or C1 filter fitted, ABB lists the IP55 body at 403 x 128 x 255 mm and 5.4 kg.

ABB’s IE5 synchronous reluctance motor selection guide lists the ACQ580-01-05A7-4 with . The package values are ABB calculations for drive and motor together, so treat them as a guide for comparing options.

Type code and option codes

Read ACQ580-01-05A7-4 in four parts: ACQ580 is the series, 01 the wall-mounted construction, 05A7 the rating and 4 the 380 to 480 V class. The Hand-Off-Auto panel ACH-AP-H (+J400) is delivered as standard. Plus codes add features, for example +F278 for an integrated main switch (R1-R5), +E223 for an integrated C1 filter (R1-R5), +F316 for main switch plus C1 filter (R1-R5) and +C135 for flange mounting.

Add networks as plug-in adapters, for instance CANopen FCAN-01 (+K457, 68469376), Modbus RTU FSCA-01 (+K458, 3AUA0000031336) and EtherNet/IP FEIP-21 (+K490, 3AXD50000192786). The embedded EIA-485 port speaks Modbus RTU without any adapter.

ABB’s technical data for the range includes a C1 option up to 55 kW, a built-in DC or AC choke meeting IEC 61000-3-12, 6 digital inputs, 2 analog inputs, 2 analog outputs and 3 relays, a 24 V DC auxiliary output of 250 mA and -15 to +50 degrees C operation with derating from +40.

Datasheet and ordering notes

Request the ACQ580-01-05A7-4 from Seven Star LLC with your pump motor data, supply voltage and communication needs. Ratings, cooling data, dimensions and option codes on this page are taken from ABB document 3AUA0000194172 (revision I, 27.9.2024).

Confirm before ordering: type code and plus options, motor rated current, enclosure class, ambient temperature and altitude, and any newer ABB revision.
