Rittal VX25 Ri4Power Switchgear and Power Distribution System

A modular switchgear system built on the VX25 enclosure

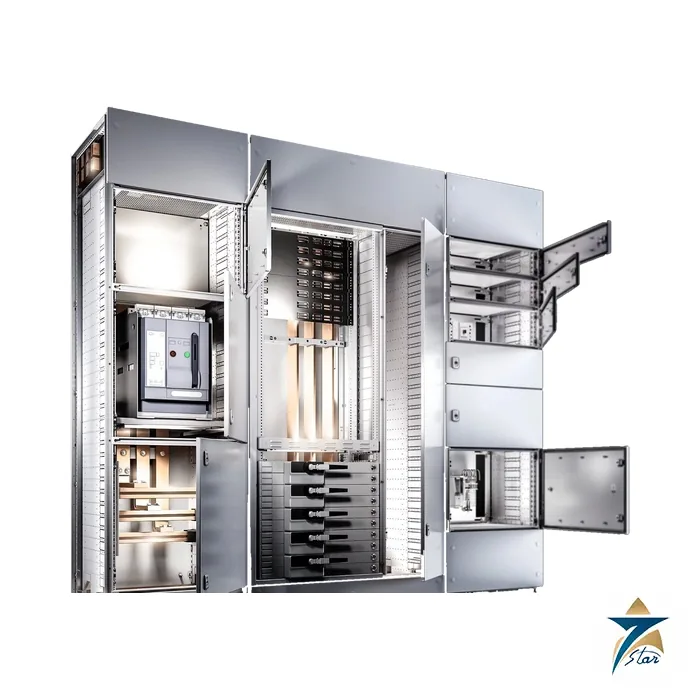

The Rittal VX25 Ri4Power is a modular system for low-voltage switchgear and power distribution assemblies, built on the VX25 baying enclosure. Rittal describes it as an enclosure and busbar system in one: the VX25 frame carries the busbars, compartment side panels and dividers, so one cabinet line can hold incoming air circuit-breakers, outgoing feeders, couplers and fused sections. It is rated for currents up to 6300 A and is intended for plant, industrial and infrastructure power rooms.

Each enclosure panel can be divided into separately configured busbar compartments, functional units and connection areas, with form separation from Form 2 to Form 4 according to the Rittal brochure. Compartment side panels run the full enclosure height, which replaces individual vertical partitions between sections and cuts the number of parts. The 25 mm enclosure pitch pattern lets horizontal compartment dividers slide in at any height without extra brackets.

Technical specifications

Section types and busbar systems

The ACB section takes the infeed or outgoing circuit of an air circuit-breaker. Rittal states that it accepts open and compact breakers from ABB, Eaton, General Electric, Mitsubishi, Schneider Electric, Siemens, LSIS and Terasaki. The outgoing section combines switchgear, power supply outlets and control units in compartments shielded from each other. The coupling section connects or separates busbar systems so that individual sub-sections can be isolated while the rest keeps running.

Fuse-switch disconnector sections use plug-in NH slimline fuse-switch disconnectors on vertical multi-terminal busbars, with a cable chamber for cable entry from above or below. An energy storage section is offered for battery energy storage installations. Pre-punched knock-outs in the compartment panels allow PE and N conductors to run straight through every section type, and bar supports screw directly to the frame, which Rittal says saves up to 50 percent of assembly time.

Planning, design verification and ordering

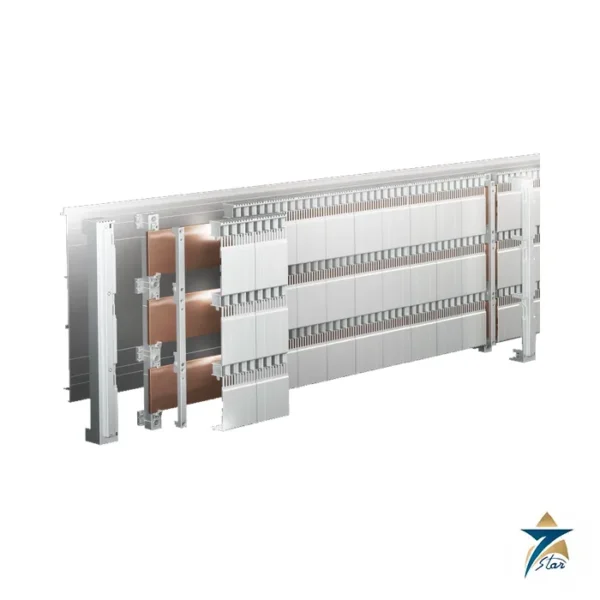

Configuration is done with Rittal Power Engineering, which also generates the design verification and drawings for copper connection kits. Before ordering, confirm the rated current and short-circuit level, form of separation, protection category, busbar position, breaker makes and frame sizes, cable entry direction and the enclosure widths and heights needed. The sheet is a system brochure and catalogue, so individual article numbers are selected in the configurator or the full Rittal catalogue. For compact assemblies up to 2100 A see also the VX25 Ri4Power 185 mm system on this site.

Documents and quotation

The Rittal VX25 Ri4Power brochure (excerpt, pages 1 to 60 of the 118-page edition) is available on this page. See the Automation Accessories category for other enclosure products, or the Rittal TS 8 system at Rittal TS 8 free-standing enclosure system. Send the single-line diagram or section list, ratings and quantities with your request for quotation.
