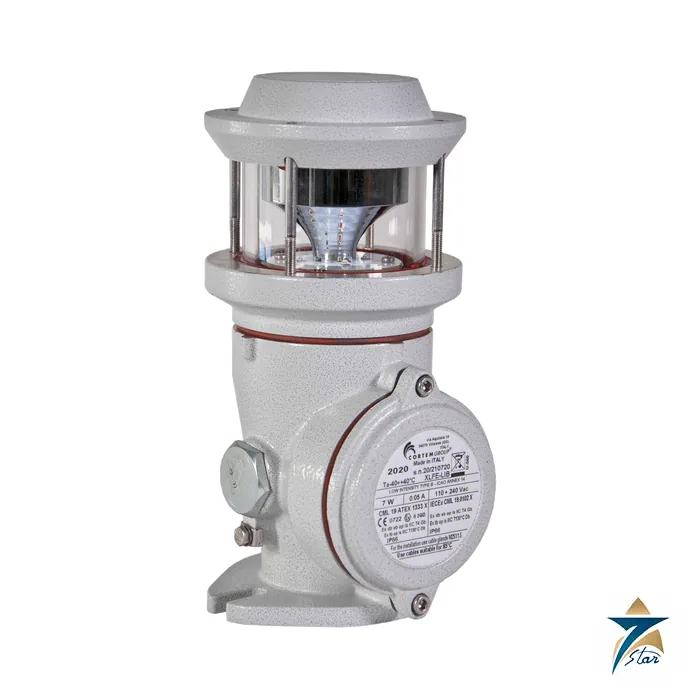

Cortem XLFE-LIB Ex Low Intensity Obstruction Light
Description
Explosion-protected low intensity red obstruction light for towers and stacks
The Cortem XLFE-LIB is a low intensity LED obstruction lighting fixture for installation on towers, stacks and tall structures in hazardous areas. It is red, steady-burning and has a luminous intensity of more than 32 candela, and Cortem states that its light distribution complies with ICAO Annex 14 for low intensity type B warning lights, equivalent to FAA L-810.
Type B low intensity lights are intended for structures with limited height above ground, below about 45 metres. Cortem also says the fixture meets the photometric and intensity requirements for type A low intensity lights. The housing is marked II 2GD Ex db eb IIC T6 Gb and Ex tb IIIC T75 °C Db for Zones 1, 2, 21 and 22, and has an IP66 rating with a borosilicate glass globe.
Technical specifications of the XLFE-LIB
| Parameter | Specification |
|---|---|
| Manufacturer | Cortem S.p.A., Italy |
| Models | XLFE-LIB-R230F, XLFE-LIB-R024F and the -IR infrared versions |
| Marking | II 2GD Ex db eb IIC T6 Gb; Ex tb IIIC T75 °C Db; IP66 |
| Certificates | ATEX CML 19 ATEX 1333X; IECEx CML 19.0102X; UKEX available |
| Standards cited | ICAO Annex 14 type B; FAA AC 150/5345-43J (L-810) |
| Light colour / mode | Red, fixed (steady) |
| Light source | 4 LEDs on a single-circuit electronic plate (plus 4 infrared LEDs on -IR versions) |
| Intensity / coverage | More than 32 cd at night; 360° horizontal; vertical beam spread above 10° |
| Power consumption | 6 W |
| Rated supply | R230F: 100 to 240 VAC +/-10 %, 50/60 Hz; R024F: 18 to 32 VDC |
| Ambient temperature | -40 to +60 °C, temperature class T6 (75 °C) |
| Body / glass | Low-copper aluminium alloy, epoxy RAL 7035 / borosilicate glass |
| Cable entries | 2 x ISO M25; 3 entries with 2 PLG2IB plugs on special versions |
| Weight / dimensions | 2 kg / 232 x 125 x 125 mm |
| LED life | Estimated 100,000 hours |
Infrared (IR) versions
The -IR versions add four infrared LEDs emitting at 800 to 900 nm with an intensity above 4 mW/sr and a vertical beam above 10 degrees, designed to be visible through night vision goggles and to follow FAA guidance on NVG-compatible obstruction lighting. The visible red output is unchanged.
Code R230F-IR and R024F-IR are the infrared versions of the AC and DC models. All four codes share the same 6 W power consumption and housing size.
Choosing and installing the fixture
Select the 230 V AC type where mains is available at the structure and the 24 V DC type where the lights are fed from a low-voltage or battery-backed system. Make sure the lighting class required by the aviation authority is confirmed by the project, since obstruction lighting requirements depend on the structure height and local rules.
Mount it using the dimensional drawing and bracket in the catalogue, use NAV25IB or NEV25IB glands for armoured or non-armoured cable, keep the connection compartment sealed after wiring, and follow the Cortem instructions. For larger structures or intermediate heights, Cortem also offers medium intensity types such as the XLFE-MIA.
Documents and quotation
The attached document is the Cortem XLFE-LIB low intensity LED obstruction lighting fixture datasheet from the Cortem lighting and signalling catalogue (page B.84 to B.87, ED.2026). Certificates are published separately by Cortem.
For a quotation, send the model code, supply voltage and whether the infrared option is required. For related items see Automation Accessories.
