Cortem EJBX Stainless Steel Ex d Junction Box IIB+H2

Name: Cortem EJBX Stainless Steel Ex d Junction Box | Seven Star LLC
Brand: Cortem
SKU: EJBX

Description

Welded 316L stainless steel flameproof junction boxes for gas group IIB+H2

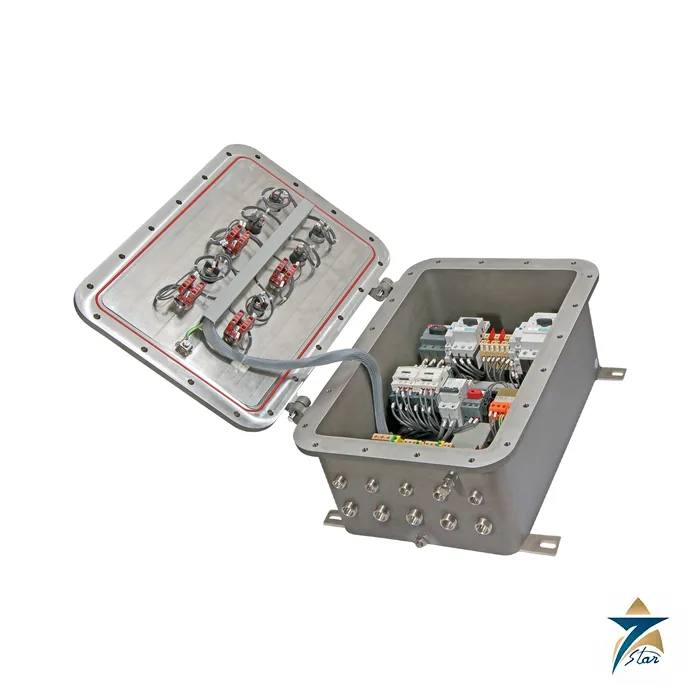

The Cortem EJBX series are flameproof junction boxes made from welded AISI 316L stainless steel sheet for plants where there is a risk of explosion or combustible dust, classified as Zone 1, 2, 21 or 22. They carry gas group IIB+H2, so they can be used where hydrogen may be present, and the datasheet states that the equipment can be used in an explosive atmosphere with hydrogen.

Cortem lists the boxes as junction boxes with connection terminals, as enclosures for fuses, transformers and reactors, as monitoring and signalling boards, light and power boards, and as motor starter boxes. They are built to customer configuration, with the empty enclosure certified as a component and the completed assembly certified for its contents.

Technical specifications of the EJBX series

Parameter	Specification
Manufacturer	Cortem S.p.A., Italy
Series	EJBX junction boxes, 17 sizes in the family (20 codes)
Material	Body and lid in AISI 316L stainless steel, quartz sand blasted
Hazardous areas	Zones 1 and 2 (gas); Zones 21 and 22 (dust); Group I (mining) M2
Marking, empty enclosure	II 2 GD Ex db IIB+H2 Gb, Ex tb IIIC Db, IP66/67; I M2 Ex db I Mb
Certificates, empty enclosure	CESI 00 ATEX 036U; IECEx CES 14.0017U; FIDI 25 ATEX 0001U and FIDI 25.0003U for EJBX-8 codes
Certificates, with terminals	CESI 01 ATEX 027X; IECEx CES 16.0012X
Protection	IP66/67 (IP66 with Cortem M-0 series control and signalling devices)
Ambient temperature, with terminals	-20 (-60) to +40 °C for T6/T85 °C; -20 (-60) to +55 °C for T5/T100 °C
Gasket	Silicone, between body and lid
Hinges / handle	Lost-wax cast hinges welded to the enclosure; steel or plastic lid handle depending on size
Earthing	M6 stainless steel earth screws inside and outside the body and on the lid
Mounting	Four feet welded to the body
Standards	EN 60079-0, EN 60079-1, EN 60079-31, EN 60529 and Directive 2014/34/EU

EJBX sizes and weights

Cortem publishes an enclosure selection chart. The table gives the outside dimensions A x B x C in millimetres and the weight in kilograms for each code.

Code	Outside A x B x C (mm)	Weight (kg)
EJBX-01	272 x 212 x 166	20
EJBX-01B	272 x 212 x 142	18
EJBX-1	312 x 212 x 201	25
EJBX-2	432 x 232 x 201	37
EJBX-3	372 x 292 x 261	45
EJBX-3B	372 x 292 x 201	38
EJBX-4	432 x 332 x 284	65
EJBX-4B	432 x 332 x 214	57
EJBX-45	562 x 382 x 284	92
EJBX-45B	562 x 382 x 234	90
EJBX-5	632 x 432 x 324	120
EJBX-5B	632 x 432 x 254	107
EJBX-55	710 x 510 x 318	170
EJBX-55B	710 x 510 x 218	150
EJBX-6	860 x 640 x 409	268
EJBX-6B	860 x 640 x 309	235
EJBX-7	1000 x 700 x 338	310
EJBX-8	1170 x 870 x 525	694
EJBX-8B	1170 x 870 x 450	664
EJBX-8BB	1170 x 870 x 375	631

Options, drilling and selection

Accessories on request include hinges on the short side, a breather valve or drain valve code ECD-210S, a 2.5 mm stainless steel internal mounting plate, windows in the lid for instruments, external paint in a chosen colour, and NPT, ISO 7-1 gas or ISO 261/965 metric thread entries. Cortem states that it manufactures custom enclosures to customer specifications within the certification data.

Entry holes are drilled by Cortem or by a partner holding an ATEX production notification, with maximum hole quantities by size listed in the datasheet. Select the size from the terminal and component layout, the heat dissipated inside the enclosure and the temperature class needed, then confirm the cable gland type with the certificate of the finished assembly. Cortem also marks its products with a hologram label and a unique code as an anti-counterfeit measure.

Documents and quotation

The attached document is the Cortem EJBX stainless steel junction boxes datasheet (catalogue sheet, edition 2026). Certificates for ATEX, IECEx and other schemes are published by Cortem.

For a quotation, send the required size code, the internal components, the number and type of cable entries and the zone and temperature class. See Automation Accessories for related hazardous-area equipment.

Datasheets & Documents

Datasheet Cortem EJBX Stainless Steel Junction Boxes datasheet (ED.2026) Download
