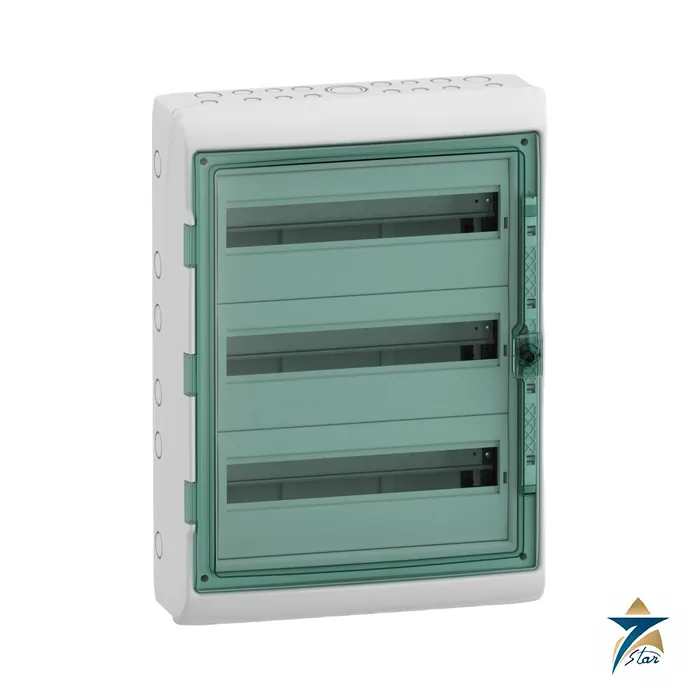

Schneider Electric Kaedra Modular Enclosure System

Overview

The Schneider Electric Kaedra Modular Enclosure System is a modular enclosure range designed for small to medium power distribution boards, offering a scalable structure that can be extended by simply adding modules rather than replacing an undersized cabinet. For electrical contractors across Oman and the GCC, Kaedra provides a fast, tool-efficient way to build up distribution boards of varying capacity from a common set of standardized modules.

With fast quotation turnaround and technical support, Seven Star LLC proudly supplies the Schneider Electric Kaedra Modular Enclosure System modular plastic and steel enclosure system for distribution boards to industrial, commercial, and utility customers across the Sultanate of Oman and the wider GCC. Units are supplied on request with full technical documentation and application support for panel builders and facility engineers in Oman specifying a modular plastic and steel enclosure system for distribution boards.

Design Principle

The Kaedra system is built on a base module that can be joined side-by-side with additional modules using integrated connection points, so the overall enclosure width grows in fixed increments to match the number of DIN rails or device rows required. This building-block approach lets an installer size the enclosure precisely to the distribution board’s device count without leaving excessive dead space or running out of room mid-installation.

Because each Schneider Electric Kaedra module carries its own mechanical strength and IP protection features, joined assemblies maintain consistent structural and ingress protection across the full width of the distribution board. Internal busbar and wiring channels are designed to pass cleanly between adjoining modules, keeping the assembled enclosure electrically and mechanically coherent despite being built from multiple individual pieces.

Engineering Design of the Schneider Electric Kaedra

The Kaedra range is available in both surface-mount and flush-mount versions, with door and cover options suited to residential, commercial, and light industrial distribution boards across Oman’s rapidly growing housing and commercial construction sector. Removable gland plates and knockouts at the top and bottom of each module simplify cable entry during first-fix electrical work.

Internal accessories for the Schneider Electric Kaedra system include DIN rail supports, cable management channels, and separation barriers that allow power and control wiring to be segregated within the same enclosure where local wiring regulations require it. The modular joining mechanism also allows enclosures to be extended after initial installation if a building’s electrical load grows, avoiding a full panel replacement.

Key Features

The Schneider Electric Kaedra Modular Enclosure System is built around design priorities that matter most to modular distribution enclosures specifiers in Oman and the GCC:

• The Kaedra system extends by adding modules rather than replacing an undersized enclosure.
• Each module maintains consistent mechanical strength and IP protection when joined to adjoining sections.
• Surface-mount and flush-mount versions suit residential, commercial, and light industrial installations.
• Removable gland plates and knockouts simplify cable entry during first-fix wiring work.
• Internal separation barriers allow power and control wiring to be segregated within one enclosure.
• Post-installation expansion is possible by adding modules as building electrical load grows.
• DIN rail supports and cable management channels are integrated into the modular design.
• Seven Star LLC supplies this item on request with the manufacturer documentation, and availability and lead time are confirmed at quotation.

Industrial Applications

The Schneider Electric Kaedra Modular Enclosure System is widely specified in residential towers, retail fit-outs, and light commercial buildings across Muscat and other growing Omani cities, wherever a distribution board needs to be sized precisely to the final device count without over-ordering enclosure capacity. Electrical contractors favor Kaedra for its ability to be expanded later if a tenant fit-out adds circuits beyond the original design.

With engineering support in Muscat, Seven Star LLC distributes the Schneider Electric Kaedra Modular Enclosure System to panel builders, MEP contractors, and plant operators throughout Muscat, Sohar, and Salalah, supporting district cooling plants, RO desalination facilities, oil and gas installations, commercial towers, and hospital complexes across the GCC. Specifiers in Oman can source the Schneider Electric Kaedra Modular Enclosure System through Seven Star LLC on request, with lead time confirmed at quotation and technical support with selection.

Technical Specifications

The table below summarizes the key technical parameters of the Schneider Electric Kaedra Modular Enclosure System relevant to specification and procurement.

Request a Quote for Schneider Electric Kaedra Modular Enclosure System

Facility engineers and procurement teams in Oman and across the GCC can request a formal RFQ for the Schneider Electric Kaedra Modular Enclosure System directly from Seven Star LLC’s instrumentation and low-voltage division. We supply on request with lead time confirmed at quotation, provide the full technical datasheet on request, and offer pre-sales engineering support to confirm compatibility before order placement. Backed by manufacturer datasheet documentation, Seven Star LLC supports the Schneider Electric Kaedra Modular Enclosure System across its full lifecycle, from specification and quotation through delivery, commissioning assistance, and after-sales spares.

Because the Schneider Electric Kaedra modular platform shares common accessories across its enclosure sizes, electrical wholesalers and contractors in Oman can standardize stock across many project types rather than holding separate enclosure lines for residential, commercial, and light industrial work. Seven Star LLC supplies Kaedra modules and accessories on request to support fit-out projects across Muscat.
