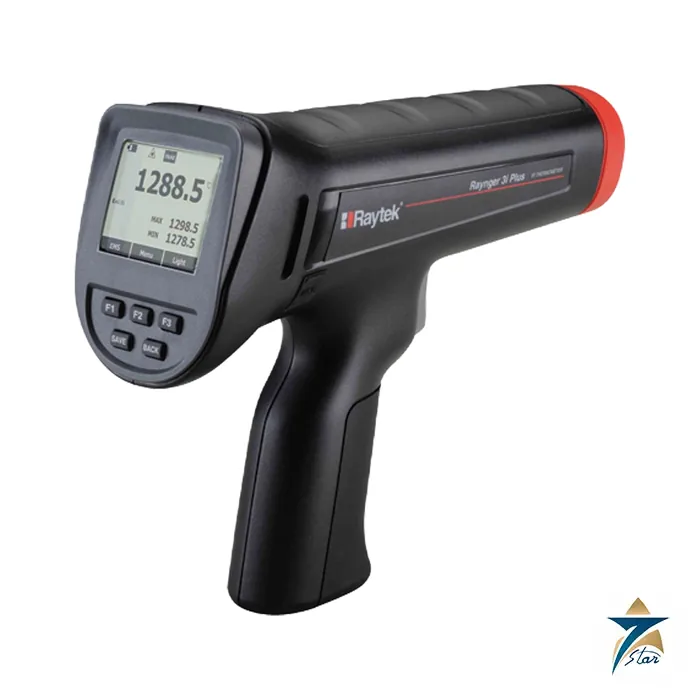

Raytek Raynger 3i Plus High-Temperature IR Thermometer
Description
A rugged handheld infrared thermometer for furnaces and hot process surfaces
The Raytek Raynger 3i Plus is a handheld, gun-style infrared thermometer for high-temperature work: foundries, steel and metal refining, ceramics, heat treatment, chemical and petrochemical furnaces and power plant boilers. It is built for readings taken from a safe distance, with a 250:1 distance-to-spot ratio, dual laser aiming and an optional scope that remains usable when a red-hot target hides the laser dot.
Two models cover the range. The 3i-1M works at 1.0 um spectral response for 700 to 3000 degC, and the 3i-2M works at 1.6 um for 400 to 2000 degC. As a rule, the shorter wavelength suits the hottest targets, while the 2M reaches lower into the process range.
Technical specifications
| Parameter | Specification |
|---|---|
| Model numbers | 3i-1M and 3i-2M, laser or scope sighting; Bluetooth versions available |
| Temperature range | 3i-1M: 700 to 3000 degC (1292 to 5432 degF); 3i-2M: 400 to 2000 degC (752 to 3632 degF) |
| Spectral response | 3i-1M: 1.0 um; 3i-2M: 1.6 um |
| System accuracy | +/-(0.5 % of reading + 1 degC) below 2700 degC; +/-2 % of reading above 2700 degC |
| Repeatability | +/-(0.3 % of reading +/-1 degC) |
| Response (exposure) time | 40 ms |
| Optical resolution (D:S) | 250:1 |
| Emissivity | 0.10 to 1.00, adjustable |
| Signal processing | MAX, MIN, DIF and AVG temperatures; reflected energy compensation |
| Display | Backlit LCD, degC or degF selectable; 0.1 degC resolution below 1000 degC |
| Alarms | Audible alarms for target temperature, ambient temperature and low battery |
| Data logging | Up to 4,900 readings with location, date and time stamp |
| Outputs | USB 2.0; Bluetooth 4.0 optional (standard on USA and Canada units) |
| Aiming | Dual laser, Class 2 (EN 60825, FDA Class II); scope models add Red Dot sighting |
| Sensor protection | Heat-resistant Red Nose warning detector with alarm |
| Power | Single-cell Li-ion, 3.6 V, 2500 mAh, or via USB 2.0; about 24 hours per charge |
| Operating / storage temperature | 0 to 50 degC; -20 to 60 degC without batteries |
| Relative humidity | 10 to 90 % RH, non-condensing at 30 degC |
| Dimensions / weight | Laser models 218 x 172 x 74 mm, 700 g; scope models 218 x 222 x 74 mm, 950 g |
| Drop rating | 1 m (3.2 ft) |
Safety and aiming features that matter at high temperature
The Red Nose is a heat-resistant plastic nose with a temperature sensor inside. If it reaches a critical temperature the LCD alarms, which helps the operator stay clear of radiant heat and protects the instrument. Where the target is small, the dual laser marks the measured spot with two points. Where the target glows so brightly that a laser dot disappears, the scope models use a Red Dot in the sight line to show the measured area.
The locking trigger, tripod mounting and reflected energy compensation make the thermometer practical for repeat surveys. Readings can be stored and moved to a PC through USB or, on Bluetooth versions, to a phone running the DataTemp mobile app.
Choosing between the 1M and 2M
Pick the 3i-1M for molten metal, glowing billets and furnace walls above 700 degC. Pick the 3i-2M if the same instrument must also read cooler hot work between 400 and 700 degC, for example soaking furnaces or forged parts leaving the heat. Emissivity has to be set for the surface, and it changes with oxide, scale and surface finish, so confirm the value you will use for your material. Applications are listed by the manufacturer across iron, steel, metal refining, foundry operations, ceramics, semiconductors, chemical and petrochemical furnaces. For fixed, continuous measurement on the same duty, see the Raytek Compact CI infrared pyrometer, or browse portable test and measurement instruments.
Confirm before ordering: the model (1M or 2M), laser or scope sighting, whether Bluetooth is needed, and the target temperature, size and distance so the 250:1 spot size suits the job.
Documents and quotation
The attached brochure is the manufacturer product brochure for the Raynger 3i Plus (specifications table included). It is a brochure rather than a full datasheet, so ask for the operator manual if you need the setup menus, alarm limits or software notes.
Seven Star LLC is an independent supplier in Muscat. Send the model, sighting option, quantity and delivery location for a quotation.
