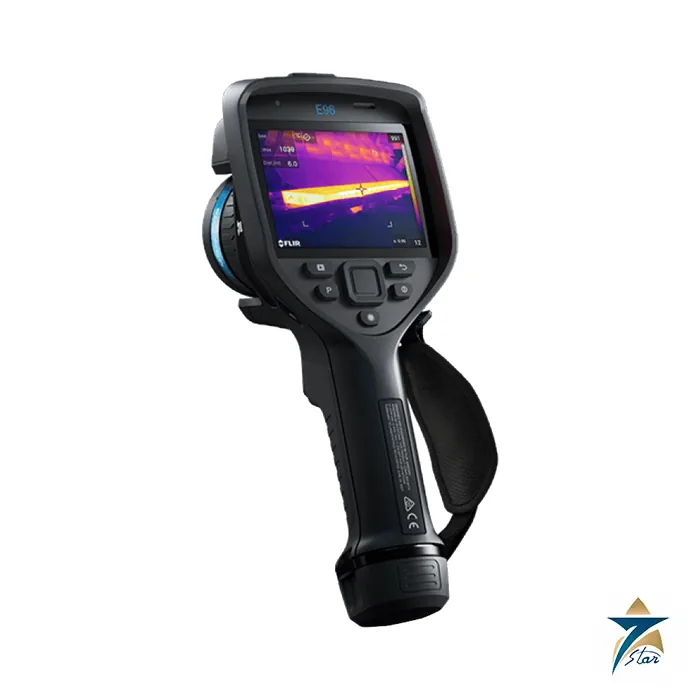

FLIR E96 Advanced Thermal Imaging Camera

Overview

The FLIR E96 advanced thermal imaging camera is a pistol-grip infrared camera built for inspectors who need to survey high-voltage electrical equipment and rotating mechanical assets safely, quickly and at long range. With full 640 × 480 (307,200 pixel) thermal resolution and thermal sensitivity below 30 mK, it resolves fine temperature differences on busbars, terminations, bearings and process equipment that lower-resolution cameras miss. Seven Star LLC supplies the genuine camera to industrial, utility and inspection service customers across Oman and the wider GCC, with full manufacturer documentation and calibration support suited to demanding Gulf operating environments.

Key Features of the FLIR E96 Thermal Camera

• 640 × 480 pixel IR resolution with FLIR UltraMax® and MSX® (Multi-Spectral Dynamic Imaging) for sharp, easy-to-interpret thermal images
• Interchangeable AutoCal™ lenses (14°, 24°, 42°, 80°) with automatic lens identification and a FlexView® dual field-of-view option for switching between wide-area and telephoto scanning in one push
• Wide object temperature measurement range: -20 to 120°C, 0 to 650°C, and 300 to 1500°C, with accuracy of ±2°C or ±2% of reading
• Thermal sensitivity (NETD) as low as <30 mK at 30°C, letting the FLIR E96 camera pick out subtle heat signatures on overloaded connections and failing bearings
• 1 to 8x continuous digital zoom, laser distance meter, and 5 MP built-in digital camera with LED photo/video lamp for reference imagery alongside every thermal capture
• 4-inch, 640 × 480 pixel touchscreen LCD with auto-rotation, Wi-Fi, Bluetooth®, USB 2.0, and DisplayPort connectivity for on-site review and reporting
• Built-in FLIR Inspection Route feature to run pre-planned survey routes across large or multi-site facilities, with voice annotation and GPS tagging on every image

Applications of the FLIR E96

The E96 is widely used for electrical preventive maintenance, identifying loose or corroded connections, overloaded circuits and failing switchgear components before they cause an unplanned outage or fire. In mechanical predictive maintenance programs, it monitors bearing temperature, motor windings, gearboxes and steam traps, flagging developing friction or lubrication issues early. Its extended 1500°C range and rugged pistol-grip design also suit high-temperature process monitoring in oil and gas, petrochemical, power generation and heavy manufacturing facilities in Oman’s demanding desert environment.

Reliability engineers also rely on the FLIR E96 for routine condition-based maintenance rounds, where consistent, repeatable thermal survey data builds a historical trend of asset health over time. Combined with FLIR’s Inspection Route feature and voice/GPS annotation, technicians using the FLIR E96 can walk a pre-planned survey path across a substation, process unit, or production line and generate a fully documented thermal report without manual note-taking, cutting inspection time significantly on large industrial sites.

FLIR E96 Specifications

The FLIR E96 camera specifications reflect its position as a top-tier advanced diagnostic imager in the FLIR Exx series:

Each FLIR E96 camera ships complete with lens, two batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, an 8 GB SD card, USB and HDMI cables, and a FLIR Thermal Studio Starter license, giving inspectors everything needed to start surveying immediately after unboxing without sourcing additional accessories separately.

Why Choose Seven Star LLC for the FLIR E96

Getting real diagnostic value from an advanced thermal imaging camera depends on selecting the correct lens and resolution configuration for your specific inspection work, whether that is electrical panel surveys, mechanical predictive maintenance, refractory and process vessel inspection, or building envelope diagnostics, since the wrong lens angle can mean missing the fine thermal detail that actually matters most on a critical electrical panel or mechanical inspection target. Seven Star LLC works closely with your reliability and inspection teams to confirm the correct FLIR E96 lens and resolution configuration for your specific survey requirements before order confirmation, drawing on our trusted Teledyne FLIR suppliership across Oman and the wider GCC.

Seven Star LLC works directly with industrial, utility, and inspection service customers across Oman and the GCC to supply genuine Teledyne FLIR instrumentation, ensuring every FLIR E96 camera comes with full manufacturer traceability, calibration documentation, and after-sales support suited to local project, insurance, and regulatory compliance requirements throughout the entire GCC region. We also support inspection service providers across Muscat, Sohar, and Salalah with battery and accessory planning, so field survey teams stay equipped for extended inspection campaigns without downtime, and our technical team can advise on Thermal Studio software licensing tiers appropriate for reporting requirements ranging from routine predictive maintenance surveys to formal, certified inspection reports required for insurance or regulatory compliance purposes across the region.
