Druck DPI 620G Genii Advanced Modular Multifunction Calibrator

Overview

The Druck DPI 620G Genii is an advanced modular multifunction calibrator built at the heart of the Genii Advanced Modular Calibration System, drawing on more than fifty years of Druck pressure measurement expertise. The Druck DPI 620G combines simultaneous measurement and source capability for pressure, electrical signals, frequency and temperature in a single rugged handheld instrument, letting one technician set up, test and calibrate transmitters, transducers, gauges, indicators, switches, proximity detectors, counters, RTDs, thermocouples and valve positioners without switching tools. Interchangeable pressure modules snap on and off without special tooling, so the same base unit covers ranges from 25 mbar up to 1,000 bar as plant requirements change.

As the official authorized partner and exclusive regional representative for Druck, Seven Star LLC proudly supplies the DPI 620G Genii to instrumentation and maintenance teams across Oman and the wider GCC. Facilities in Muscat, Sohar and Salalah rely on this calibrator to keep transmitter fleets, safety instrumented systems and HART-based control loops within traceable accuracy, and our regional stock and technical support mean replacement modules and calibration accessories are never far away.

Measurement Principle

At the core of the DPI 620G is a piezo-resistive silicon pressure sensor engineered and manufactured in-house by Druck, giving the instrument accuracy as tight as ±0.005% of reading depending on the fitted module. Pressure modules are automatically recognized when connected, and the calibrator applies the corresponding calibration coefficients so the displayed reading is immediately traceable without manual re-ranging. The electrical measurement channels independently source and measure mA, V, resistance, and frequency signals, while a built-in HART and Fieldbus communicator lets the technician interrogate a connected transmitter’s configuration and trim its output while simultaneously viewing the applied reference pressure on the same screen.

Because the DPI 620G measures and sources at the same time on independent channels, loop calibration that once required two people and two instruments – one applying pressure, one reading milliamps – is reduced to a single technician working from one touchscreen. This closed-loop verification approach eliminates transcription error between separate gauges, shortens calibration intervals, and produces a documented as-found/as-left record directly from the instrument for audit and compliance purposes.

Engineering Design of the Druck DPI 620G

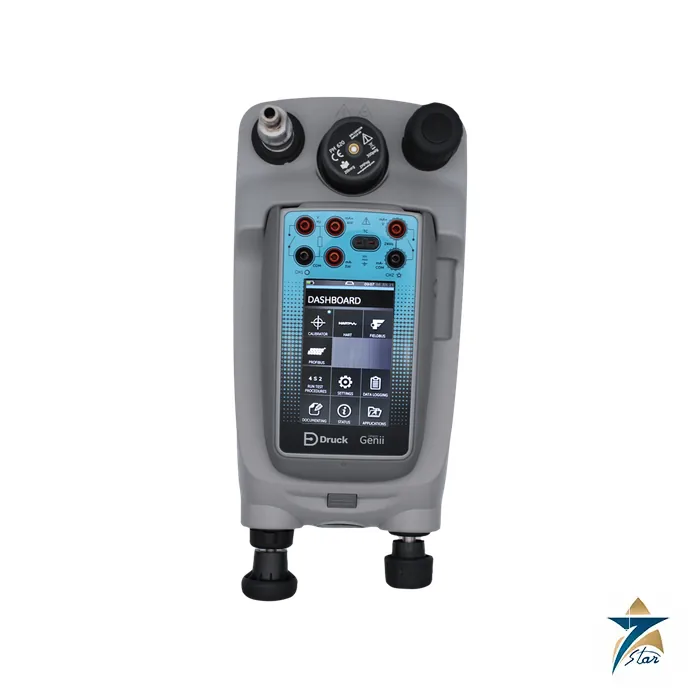

The Druck DPI 620G is built into a rugged, ergonomic handheld enclosure with a full-color touchscreen dashboard giving direct access to calibrator, HART, Fieldbus, profile, run-test-procedures, settings and data logging functions from a single home screen. Two color-coded electrical test lead ports and a top-mounted pressure module connector allow rapid reconfiguration between test setups, while the modular pressure module simply screws onto the top of the unit and is automatically identified by the electronics. A lithium-polymer battery pack provides extended field runtime, and the compact 183 mm x 114 mm x 42 mm, 1.1 kg footprint keeps the calibrator practical for confined valve galleries, rooftop HVAC plant and offshore platform walkways alike.

Three variants extend the platform to different site conditions: the general-purpose DPI620G, the DPI620G-IS intrinsically safe version certified ATEX, IECEx and ETL for use in classified hazardous areas where flammable gases may be present, and the DPI620G-B companion unit with a single electrical channel designed to pair with a separate pressure station. A free licence of 4Sight2 Lite calibration management software ships with the kit, giving technicians a simple path to log, review and export calibration certificates back at the workshop.

Key Features

The DPI 620G Genii brings proven field productivity and traceable accuracy to every calibration task; the Druck DPI 620G is engineered around field productivity and traceable accuracy. Key features include:

• Accuracy of up to ±0.005% of reading with interchangeable, auto-recognized pressure modules covering 25 mbar to 1,000 bar.
• Simultaneous measurement and source of pressure and electrical parameters on independent channels for true one-person loop calibration.
• Integrated HART and Fieldbus communicator for reading and trimming transmitter configuration alongside live pressure reference.
• ATEX, IECEx and ETL certified intrinsically safe DPI620G-IS variant for use in classified hazardous areas.
• Lithium-polymer battery power with a full-color touchscreen dashboard for calibrator, HART, Fieldbus and data-logging functions.
• Onboard data logging with automatic as-found/as-left documentation for audit-ready calibration records.
• Compact, rugged 1.1 kg handheld enclosure rated for -10°C to 50°C ambient operation.
• Bundled 4Sight2 Lite calibration management software licence for certificate generation and asset tracking.

Industrial Applications

The Druck DPI 620G is deployed wherever process transmitters, switches and control valves need periodic verification against a traceable pressure standard. In Oman’s upstream and midstream oil and gas facilities, instrumentation teams use the DPI 620G-IS to calibrate wellhead pressure transmitters, pipeline pressure switches and safety instrumented system inputs directly inside hazardous process areas without gas-freeing the unit under test. Downstream, refinery and petrochemical maintenance groups use the calibrator to verify HART-enabled transmitters on distillation and cracking units, confirming both the pressure reading and the 4-20 mA loop output in a single pass.

As the officially authorized partner for Druck, Seven Star LLC distributes the DPI 620G Genii to power generation plants, desalination facilities and district cooling operators throughout the Sultanate of Oman and the GCC, supporting scheduled preventive maintenance programs and third-party calibration service providers alike. From the Sohar and Salalah industrial and free zones to offshore platforms in the Gulf, plant reliability engineers depend on Seven Star LLC for genuine Druck pressure modules, calibrated accessories and prompt technical support that keeps calibration schedules on track.

Technical Specifications

The table below summarizes the principal specifications of the Druck DPI 620G Genii multifunction calibrator, and every Druck DPI 620G shipped by Seven Star LLC includes full supporting documentation.

Call To Action

Facility engineers and calibration teams in Oman and across the GCC can submit a formal RFQ to Seven Star LLC for the Druck DPI 620G Genii; the Druck DPI 620G remains the preferred calibration standard for teams that need traceable, single-technician loop verification, including intrinsically safe DPI620G-IS variants and interchangeable pressure modules held in regional warehouse stock for fast dispatch. Technical datasheets, instruction manuals and application guidance are available on request from our instrumentation division, and as the authorized partner for Druck in Oman and the GCC, Seven Star LLC backs every calibrator with genuine factory warranty and local calibration support.
