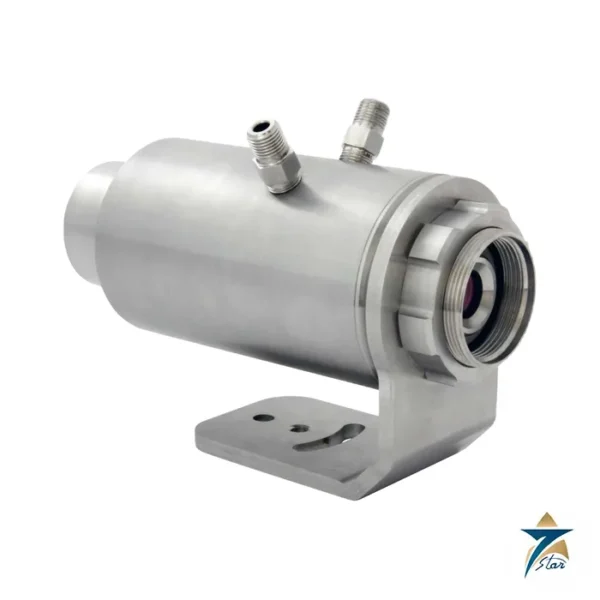

Raytek Endurance Series Fixed Infrared Pyrometer

Name: Raytek Endurance Series Fixed IR Pyrometer – Datasheet
Brand: Raytek
SKU: Endurance Series

Description

High-resolution fixed pyrometers for hot, demanding metal and furnace processes

The Raytek Endurance Series is a family of fixed-mount infrared pyrometers for very high temperature processes, from 50 up to 3200 degC. It combines a rugged stainless steel IP65 / NEMA 4 head with optical resolution up to 300:1, through-the-lens sighting, networking and a 4 year manufacturer warranty.

Single-colour (M) and two-colour (R) models are offered. Two-colour operation is used where dust, steam or a partially obscured target would otherwise bias a single-colour reading, and the dirty-window alarm warns when the optics are contaminated.

Technical specifications

Parameter	Specification
Series	Endurance, fixed pyrometer; single-colour (M) and two-colour (R) models
Overall temperature range	50 to 3200 degC (122 to 5792 degF)
E1R / E1RL / E1RH	600 to 1800 degC (two-colour), 550 to 1800 degC (single colour); E1RH 1000 to 3200 degC; 1.0 um
E2R / E2RL	250 to 1200 degC; 1.6 um
E1M / E1ML / E1MH	400 to 1740 degC; E1MH 540 to 3000 degC; 1.0 um
E2M / E2ML / E2MM / E2MH	250 to 1100 degC; E2MM 250 to 1400 degC; E2MH 450 to 2250 degC; 1.6 um
E3M / E3ML / E3MH	50 to 1000 degC; E3MH 150 to 1800 degC; 2.4 um
Optical resolution	Up to 300:1 depending on model (75:1, 100:1, 150:1, 160:1 and 300:1 listed)
Response time	2 ms (E1M family) to 20 ms; 10 ms for E1R
Lens options	F2 600 mm to infinity, F1 300 to 600 mm, F0 190 to 300 mm
Sighting	Visual with laser, video camera or LED, through the lens
Emissivity / E-slope	0.100 to 1.100 / 0.850 to 1.150 (two-colour models)
Outputs	Ethernet, Profinet, EtherNet/IP, 0/4 to 20 mA (500 ohm max), RS485 two-wire, programmable relay 48 V 300 mA
Power supply	20 to 48 VDC, 500 mA, or Power over Ethernet
Ambient temperature	0 to 65 degC without cooling (0 to 60 degC for E2R); 120 degC with air cooling; 175 degC with water cooling; 315 degC with ThermoJacket
Enclosure / weight	IP65 (IEC 529) / NEMA 4; optical head 1220 g, air/water cooled housing 2980 g
Manufacturer warranty	4 years

Interfaces, software and diagnostics

The sensor can be configured and monitored remotely with Endurance software and offers a LAN/Ethernet interface with ASCII, video and web server access. Optional Profinet and EtherNet/IP interfaces allow direct fieldbus connection. The unique dirty-window alarm, fail-safe alarm and programmable relay support unattended monitoring of furnaces, heat treatment, induction heating and forging.

Signal processing includes peak hold, valley hold, averaging and ambient background temperature compensation. The isolated analog inputs and outputs allow emissivity, e-slope and background temperature to be set from the control system.

Selecting the model and what to confirm before ordering

Start with the target: bright metal at high temperature usually calls for a 1.0 um model (E1), lower-temperature metal for 1.6 um (E2) and cooler surfaces for 2.4 um (E3). Choose the R versions where the target may be partly obscured, otherwise the M versions. Options such as water cooling with air purge collar and Profinet or EtherNet/IP must be specified at time of order.

Confirm the full model code, lens (F0, F1 or F2), sighting type, cooling, communication interface and mounting accessories such as brackets, sighting tubes and ThermoJacket. See the Raytek Compact CI for a lighter-duty alternative, or browse temperature instrumentation.

Documents and quotation

The attached datasheet for the Endurance Series is the manufacturer document (dated 10/2020 in the footer) with the model matrix, dimensions, accessories and options. Request the operator manual separately for wiring and setup.

Seven Star LLC is an independent supplier in Muscat. Send the model code, lens, sighting, cooling and interface needs with the quantity for a quotation.
