Delta REG2000 Power Regenerative Unit

Name: Delta REG2000 Power Regenerative Unit – Catalog & Quote
Brand: Delta
SKU: REG2000

Returning braking energy to the mains instead of burning it

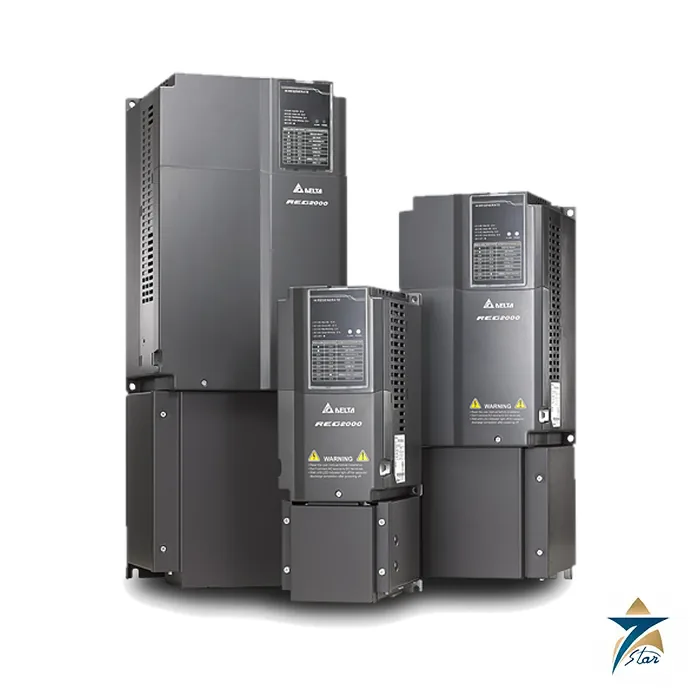

The Delta REG2000 series power regenerative unit replaces the traditional brake unit and brake resistor on AC motor drives and servo systems with a DC bus. Instead of dissipating regenerative energy as heat, it converts it into usable power and returns it to the mains with more than 95 percent power regeneration efficiency, which reduces heat in the panel and saves energy.

The catalogue (June 2021) highlights a compact design with the reactor included, a 50 percent space saving against a drive plus brake unit plus brake resistor for a 55 kW 400 V example, RS-485 Modbus communication for real-time monitoring of regenerated energy, and braking capability improved up to 150 percent from the 125 percent of braking resistors. It needs no parameter setting for general applications.

Technical specifications

Data from the Delta REG2000 catalogue (20210607 edition).

Parameter	Specification
230 V models	REG___A23A-21: 075, 110, 150, 185, 220, 300, 370 (7.5 to 37 kW)
460 V models	REG___A43A-21: 075, 110, 150, 185, 220, 300, 370, 450, 550 (7.5 to 55 kW)
Rated input current (DC bus), 230 V	24.0, 39.0, 46.0, 59.8, 73.2, 97.6, 122 A
Rated input current (DC bus), 460 V	12.8, 20.7, 24.4, 30.5, 39.0, 52.5, 59.8, 73.0, 91.5 A
Rated output current, 230 V	20, 32, 38, 49, 60, 80, 100 A AC
Rated output current, 460 V	10.5, 17, 20, 25, 32, 43, 49, 60, 75 A AC
DC bus activation range	270 to 390 VDC (230 V); 516 to 780 VDC (460 V); adjustable via Pr.01-08
Mains	3-phase 200 to 240 VAC or 380 to 480 VAC (-15 to +10 percent), 50/60 Hz
Frames and weight	Frames A, B and C; net weight from 7.5 kg to 29.5 kg
Control method	SVPWM
Brake torque	80 percent of rated current continuously; 100 percent for 1 minute at 25 percent ED
Overload capacity	150 percent of rated current for 10 seconds at 10 percent ED
Signals	5 generic inputs 24 VDC 6 mA; 2 outputs 48 VDC 50 mA; 1 relay output
Cooling and enclosure	Forced air; IP20 / NEMA 1
Operating temperature	-10 to 40 deg C; storage -25 to +70 deg C; humidity below 90 percent RH
Parallel operation	Up to 4 units at 20 percent derating

Where regeneration pays back

The catalogue names large-inertia loads (centrifuges, industrial laundries, heavy duty conveyors, roving machines, gantry machine tools), four-quadrant loads (elevators, cranes and hoists, pumpjacks), quick braking applications (machine tools, bag making, automatic storage and retrieval, presses) and long-term energy feedback (printing machines, escalators). Worked examples show a hoist saving about 32 percent of energy per cycle and an elevator about 31 percent, using Delta’s own assumptions and tariffs.

One REG2000 can serve several drives on a shared DC bus, and several REG2000 units can serve one large drive; the catalogue shows wiring with a DC choke. Always check the drive DC bus voltage against the activation range.

Selecting and confirming

Size the unit from the drive power rating, bus voltage and duty cycle, and confirm that the connected drive has accessible DC terminals. Delta drives such as the Delta C2000 Plus vector control drive and the Delta CH2000 crane drive are named in the catalogue wiring examples. More drive-related products are in the AC drive category.

Documents and quotation

The REG2000 catalogue is available as a download here. Seven Star LLC is an independent supplier in Muscat; send the drive model, DC bus voltage and duty cycle in your RFQ.
