Delta DVP Series Programmable Logic Controllers (ES3, ES2, EH3, SS2, SA2, SE, MC)

The Delta DVP family of compact PLCs

The Delta DVP Series is Delta’s long-running range of programmable logic controllers. The catalogue (September 2022) covers standard PLCs (DVP-E series: EC3, ES2, EX2, ES3 and EH3), slim PLCs (DVP-S series: SS2, SA2, SX2, SE and SV2), general motion controllers (DVP-PM), multi-axis motion controllers (DVP-MC), extension modules and the TP series touch and text panels with built-in PLC. It also describes the ISPSoft editing software.

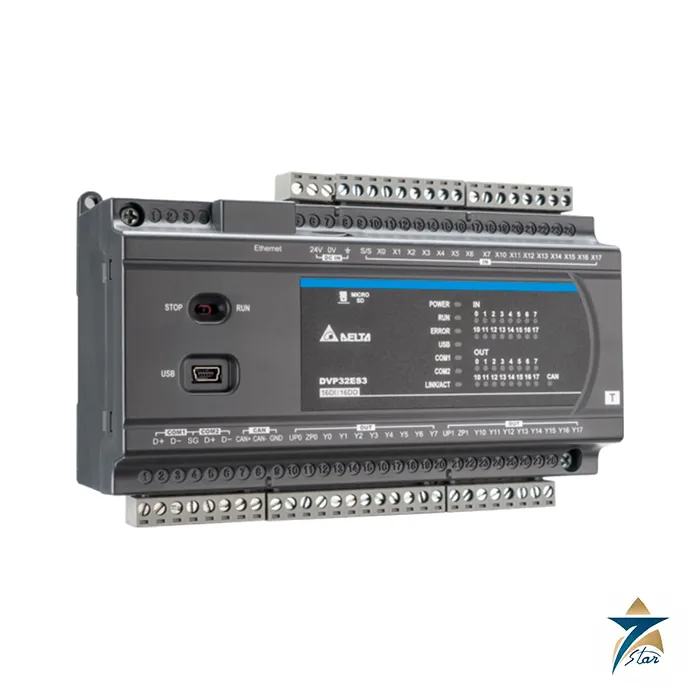

The newest standard model in the catalogue is the 3rd generation DVP-ES3, which adopts the high performance processor of the AS series with a 25 ns basic instruction time, built-in 32, 48, 64 or 80 I/O points, built-in RS-485, Ethernet and CANopen, and support for Modbus, Modbus TCP and EtherNet/IP. The catalogue says ES3 offers 64k steps of program capacity against 16k steps on ES2.

Technical specifications

Data from the Delta DVP and TP series catalogue (20220906 edition). Models marked below are quoted from the catalogue series pages and ordering tables.

Choosing a DVP series

The catalogue function overview helps match power supply, I/O count, program capacity, output type, communication ports, positioning and high-speed counting to a series. EC3 suits basic sequence control, ES2 and EX2 standard machines with RS-485 and Modbus, EH3 and SV2 demanding multi-axis positioning, SS2 and SA2 compact slim applications, and SE small Ethernet-connected systems. Extension modules include digital and analog I/O, temperature, load cell, positioning and communication modules; DVP-S series modules fit slim PLCs and ES3, ES2 and EX2 use the E2 module family.

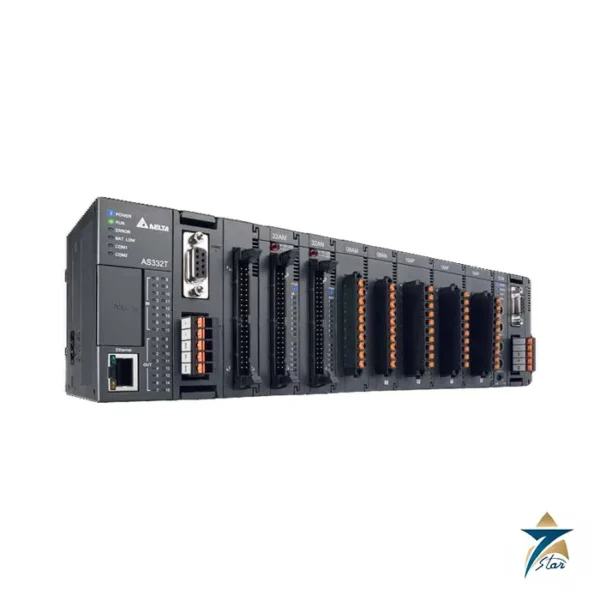

For a single module, see the Delta DVP04AD-S2 analog input module in our range. For new designs with more modules or EtherNet/IP, the Delta AS series is the newer platform.

Points to confirm

State the full model code (power, output type and options), hardware version, extension modules and the programming software in an RFQ. Check that the selected series supports the communication protocol needed, for example CANopen on ES2 variants with the C suffix. For more PLC and I/O items see the PLC and I/O category.

How the DELTA-DVP works

A DVP controller reads its input points, runs the user program and then writes its output points. The program is written and edited in the ISPSoft software. Larger models add network ports, high-speed counters and pulse outputs so the same controller can also drive motion.

Where the DELTA-DVP is used

• Machine control
• Packaging lines
• Small process skids
• Multi-axis motion systems
• Panels that need a touch screen with a built-in PLC

Selection checklist for the DELTA-DVP

• Number of I/O points
• Program size
• Relay or transistor outputs
• Supply voltage
• Communication ports
• Analog needs
• Motion axes
• Extension modules

Installation, commissioning and maintenance notes for the DELTA-DVP

Mount the controller in a clean panel with room for ventilation. Wire the supply, the inputs and the outputs according to the catalogue. Load the program from ISPSoft and test each input and output. Back up the program after commissioning.

Requesting a quotation for the DELTA-DVP

Please send the model, the number of I/O points, the output type and the supply voltage. Seven Star LLC serves industrial customers in Oman and the GCC and replies with a quotation based on the information provided.

DELTA-DVP standard range

The standard PLCs are the EC3, ES2, EX2, ES3 and EH3.

DELTA-DVP slim range

The slim PLCs are the SS2, SA2, SX2, SE and SV2.

DELTA-DVP motion controllers

The catalogue also covers general motion controllers and multi-axis motion controllers.

DELTA-DVP touch panels

The TP series touch and text panels have a built-in PLC.

DELTA-DVP software

The catalogue describes the ISPSoft editing software.

DELTA-DVP newest standard model

The newest standard model is the third generation DVP-ES3.

DELTA-DVP ES3 speed

The ES3 has a 25 ns basic instruction time.

DELTA-DVP ES3 I/O

The ES3 has built-in 32, 48, 64 or 80 I/O points.

DELTA-DVP ES3 networks

The ES3 has built-in RS-485, Ethernet and CANopen.

DELTA-DVP ES3 protocols

The ES3 supports Modbus, Modbus TCP and EtherNet/IP.

DELTA-DVP ES3 program size

The ES3 offers 64k steps of program capacity against 16k steps on the ES2.

DELTA-DVP EC3 basic model

The EC3 is a basic PLC with 4k steps and 10 to 60 I/O.

DELTA-DVP ES2 and EX2

The ES2 and EX2 have 16k steps and 16 to 80 I/O.

DELTA-DVP EX2 analog

The EX2 has built-in analog I/O.

DELTA-DVP EH3 and SV2

The EH3 and SV2 have 30k steps and 4-axis pulse output.

DELTA-DVP SA2

The SA2 has 2-axis interpolation.

DELTA-DVP SX2

The SX2 has 4 analog inputs and 2 analog outputs built in.

DELTA-DVP SE

The SE has Ethernet and Modbus TCP.

DELTA-DVP MC series

The MC controllers use CANopen or EtherCAT for multiple axes.

DELTA-DVP AC supply

The AC supply is 100 to 240 VAC at 50 or 60 Hz.

DELTA-DVP DC supply

The DC supply is 24 VDC.

DELTA-DVP digital inputs

The digital inputs are 24 VDC and can be wired as sink or source.

DELTA-DVP outputs

Outputs are relay or transistor.

DELTA-DVP relay rating

A relay output is rated 2 A per point.

PLC records for the DELTA-DVP

Record the model, the program version and the date of each program backup.

Choosing the right DELTA-DVP model

Choose the model from the I/O count, the program size and the networks the machine needs.

Documents and quotation

The full DVP and TP catalogue is hosted here as the manufacturer file. Seven Star LLC is an independent supplier in Muscat; send the exact DVP model codes or nameplate details with your RFQ.
