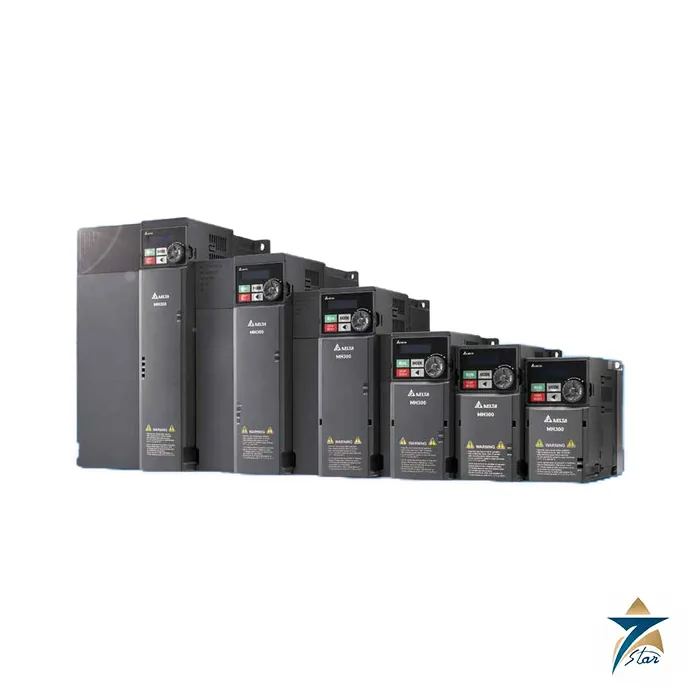

Delta MH300 High Performance Compact Vector Control Drive
Description
A compact vector drive that is 40 percent smaller
The Delta MH300 is the new generation high performance compact vector control drive from Delta, reduced in size by 40 percent compared with the previous generation. The catalogue (July 2021) lists built-in essentials as standard: PLC capacity of 5k steps for simple programming, two communication option slots, a USB port, support for both induction (IM) and permanent magnet (PM) motors, an STO function and screwless control terminal wiring.
Delta quotes a 71 percent size reduction against its earlier VFD150B43A for the VFD32AMH43ANSAA comparison, and side-by-side installation with zero spacing at ambient temperatures up to 40 deg C. Typical targets are rewinders, slitters, printing, drawing and coil winding machines, machine tools, woodworking and textile machines.
Technical specifications
Data from the Delta MH300 catalogue (20210722 edition).
| Parameter | Specification |
|---|---|
| Voltage classes | 115 V single-phase; 230 V single-phase (with or without EMC filter); 230 V 3-phase; 460 V 3-phase (with or without EMC filter) |
| Power range | 115 V: 0.2 to 0.75 kW; 230 V 1-phase: 0.2 to 2.2 kW; 230 V 3-phase: 0.2 to 37 kW; 460 V 3-phase: 0.4 to 75 kW |
| Frame sizes | A to I |
| Control methods | V/F, SVC, FOC, V/F+PG, FOC+PG, TQC+PG |
| Motors | IM, IPM and SPM |
| Max. output frequency | 599 Hz |
| Starting torque (IM, HD) | 150 percent at 3 Hz (V/f, SVC); 200 percent at 0.5 Hz (FOC); 200 percent at 0 Hz (FOC+PG) |
| Overload | Normal duty 120 percent for 60 s and 150 percent for 3 s; heavy duty 150 percent for 60 s and 200 percent for 3 s |
| Carrier frequency | 2 to 15 kHz (default 4 kHz) |
| Built-in | Brake chopper (frames A to F standard), 5k steps PLC, RS-485 Modbus, CANopen, USB, removable keypad, 24 VDC power option via card |
| Option cards | PG cards (ABZ line driver, open collector, resolver), I/O cards, relay cards, PROFIBUS DP, DeviceNet, Modbus TCP, EtherNet/IP, EtherCAT |
| Safety | STO: EN ISO 13849-1 Cat3 PLd, EN 61508 SIL2, EN 62061 SIL CL2 |
| Operating temperature | IP20: -20 to 50 deg C (to 60 deg C with derating); IP40: -20 to 40 deg C (to 50 deg C with derating) |
| Certifications | CE, RCM, REACH, RoHS, TUV, UL |
| Ordering code example | VFD32AMH43ANSAA (see model name explanation in the catalogue) |
Features that matter on the machine
MH300 supports 4 independent induction motor parameter sets, or up to 8 using the built-in PLC, for multi-motor switching. Built-in tension control offers coil diameter calculation, two PID parameter sets, tensile taper calculation, auto lap changing and friction and inertia compensation, in open or closed loop, torque or speed modes. Deceleration Energy Control can shorten braking time without a brake resistor, and Deceleration Energy Backup brings the motor to a controlled stop on power loss.
The drive has 100 percent PCB coating to IEC 60721-3-3 class 3C2, IP40 models for dusty fibre environments, a removable fan and removable RFI jumper. Pulse input up to 33 kHz allows simple closed loop control without a PG card.
Selection and links
Pick voltage, phase, EMC filter option and frame from the standard model tables, and say whether heavy duty or normal duty ratings apply. For larger or fan and pump duty see the Delta CP2000 fan and pump drive and the Delta C2000 Plus vector control drive; for basic compact duty see the Delta MS300 compact AC motor drive. Confirm option cards and braking resistor needs in your RFQ. More drives are in the AC drive category.
Documents and quotation
The MH300 catalogue can be downloaded from this page. Seven Star LLC is an independent supplier in Muscat. Please send the nameplate code (for example VFD32AMH43ANSAA), motor data and option card needs with your RFQ.
Datasheets & Documents
- Catalogue Delta MH300 Series Catalogue (2021-07-22) Download
Reviews (0)
About brand
Delta, founded in 1971 in Taiwan, is known on the factory floor for compact PLCs, drives and power supplies. Its DVP controllers are small PLCs often seen in machine panels. Seven Star LLC lists the Delta DVP04AD-S2 analog input module and the ESR-48/30D rectifier module, and sources Delta PLC modules and power parts for panel builders and maintenance teams in Oman and the GCC.
Delta PLC families and the DVP slim line
Delta's controller program runs from the DVP series through the modular AS series to the AH series. Inside the DVP series, the slim CPUs (among them DVP-SS2, SA2, SX2, SV2 and SE) take slim expansion modules on their right side. The DVP04AD-S2 is one of these: a four-channel analog input module for voltage or current signals, which the CPU reads with FROM and TO instructions.
Ordering Delta parts: what we need
For PLC modules, send the complete type from the side label, including the suffix, and the CPU model it will join. For a rectifier module, send the type, the DC output voltage and current, the AC input, and the model of the power shelf or system it plugs into.
