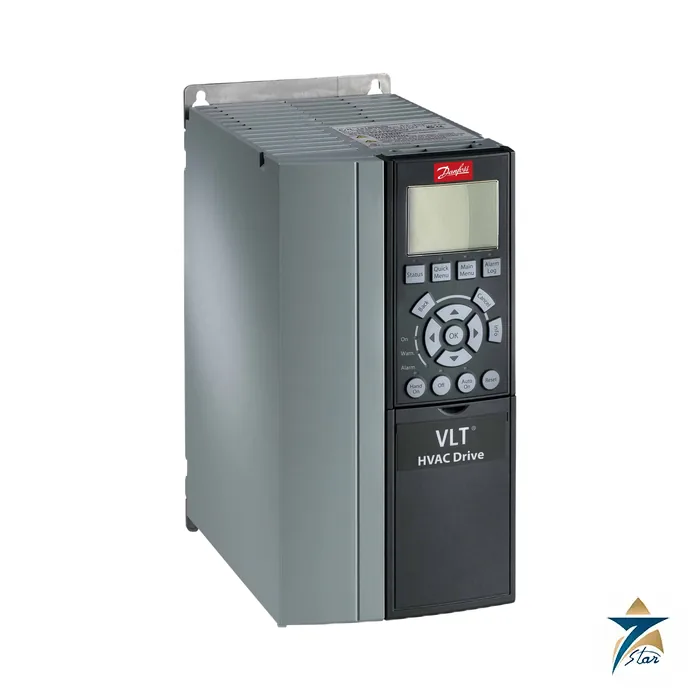

Danfoss 131B4246 FC 102 HVAC Drive 11 kW 380-480 V IP21

Name: Danfoss 131B4246 FC 102 HVAC Drive 11 kW | Seven Star LLC
Brand: Danfoss
SKU: 131B4246

Description

FC 102 11 kW with IP21 backplate: for drives that live inside a panel or plant room

The 131B4246 is an FC-102P11KT4P21H1XG drive, 11 kW (15 HP) on 380 to 480 V mains. The enclosure code P21 means IP21 / Type 1 with a backplate: the drive is built into a cabinet or mounted in a clean, dry electrical room. The B1 frame is 494 mm high, 243 mm wide and 261 mm deep, and weighs about 22 kg.

The RFI filter is class H1 (A1/B, C1 category), a low-emission class that matters in commercial buildings, hospitals and schools where the drive shares a supply with sensitive equipment. The store gives 16.6 kVA, 278 W loss and 24 A continuous output at normal overload.

Technical specifications

Parameter	Specification
Danfoss code number	131B4246
Type code	FC-102P11KT4P21H1XGXXXXSXXXXAXBXCXXXXDX
Series	VLT HVAC Drive FC 102
Power rating	11 KW / 15 HP
Mains voltage	380 – 480 VAC
Enclosure	IP21 / Type 1 Backplate
RFI filter	RFI Class A1/B (C1)
Brake chopper / safe stop	No brake chopper
Control panel / display	Graphical Loc. Cont. Panel
PCB coating	Not coated PCB
Mains option	No Mains Option
B option	No B Option
Frame size	B1
Dimensions	494 x 243 x 261 mm (H x W x D)
Continuous current, normal overload	24 A
Intermittent current, normal overload	26.4 A
Apparent power	16.6 kVA
Power loss	278 W
Net weight	21.91 kg
EAN	= 5702427229365

Cabinet heat and cable planning

A loss of 278 W inside a panel must be removed by ventilation or an air conditioner. As a rule of thumb the heat has to be added to that of the contactors, filters and power supplies, and the cabinet temperature must remain within the drive’s ambient limit. The manufacturer guide explains the derating at higher temperature and altitude, which is important for rooftop plant in Oman.

The B1 frame is the first one for which many sites change from single motor cables to heavier conductors. Check the terminal capacity in the guide against the cable you plan to use, and size input fuses according to the national rules and the guide, not by the motor kW alone.

Decoding the options

In FC-102P11KT4P21H1XGXXXXSXXXXAXBXCXXXXDX the G is the graphical control panel, and the string of X positions means no brake chopper, no coated boards, no mains option, standard cable entries and no option cards. H1 selects the class A1/B RFI filter. P21 is the IP21 backplate version, which differs from E21 or E55 housings that carry other code numbers.

If you need a drive for a wet or dusty location, the IP55 version of the same power has a different code, so state the enclosure when you ask for a quotation.

If 131B4246 is needed for an urgent repair, say so in your first message and name the machine that is stopped. We will check what can be confirmed quickly, although delivery times are never promised until the supplier has answered the enquiry in writing.

Ordering notes

Confirm the mains voltage, motor data, enclosure and RFI class before ordering. Seven Star LLC is an independent supplier in Muscat and can quote 131B4246 on request. The attached file is the Danfoss FC 102 design guide AJ299549559248; more drives are listed under AC drives.

Datasheets & Documents

Design Guide Danfoss VLT HVAC Drive FC 102 Design Guide AJ299549559248, 1.1-90 kW, sizes A-C (manufacturer, unaltered) Download
