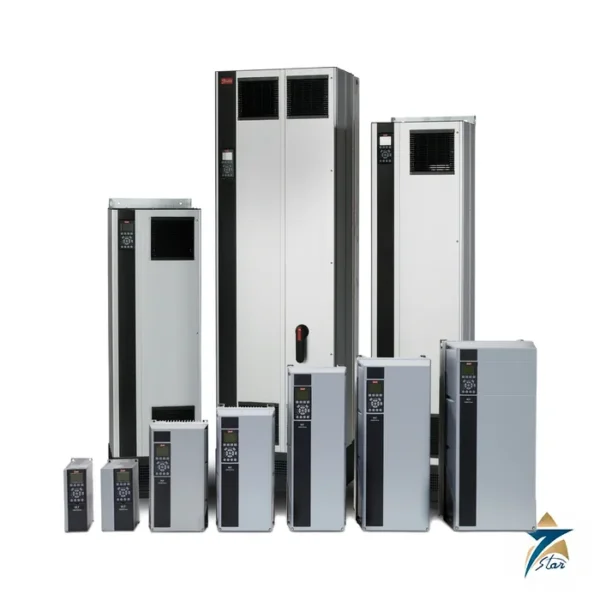

Danfoss 131F2674 FC 202 AQUA Drive 37 kW 380-480 V IP21

Name: Danfoss 131F2674 FC 202 AQUA Drive 37 kW | Seven Star LLC
Brand: Danfoss
SKU: 131F2674

Description

FC 202 37 kW in the C1 frame: a 50 HP AQUA drive for main pumping stations

The 131F2674 is an FC-202P37KT4P21H3XG, 37 kW (50 HP), 380 to 480 V with IP21 / Type 1 backplate in the C1 frame. It is a typical size for the main pumps of a water-supply station, a sewage lift or the circulating pumps of an industrial cooling system.

Current at high overload is 61 A continuous and 91.5 A for 60 s; at normal overload it is 73 A and 80.3 A. The apparent power is 50.6 kVA, and losses are 570 W and 698 W.

Technical specifications

Parameter	Specification
Danfoss code number	131F2674
Type code	FC-202P37KT4P21H3XGXXXXSXXXXAXBXCXXXXDX
Series	VLT AQUA Drive FC 202
Power rating	37 KW / 50 HP
Mains voltage	380 – 480 VAC
Enclosure	IP21 / Type 1 Backplate
RFI filter	RFI Class A1/B (C1)
Brake chopper / safe stop	No brake chopper
Control panel / display	Graphical Loc. Cont. Panel
PCB coating	Not coated PCB
Mains option	No Mains Option
B option	No B Option
Frame size	C1
Dimensions	685 x 308 x 311 mm (H x W x D)
Continuous current, high overload	61 A
Intermittent current, high overload	91.5 A
Continuous current, normal overload	73 A
Intermittent current, normal overload	80.3 A
Apparent power	50.6 kVA
Power loss	698 W
Net weight	40.78 kg
EAN	= 5710107133840

Handling and cabinet integration

This is a heavy unit at 40.78 kg and 685 x 308 x 311 mm (H x W x D), so lifting equipment is useful and the cabinet back plate must be rated for the weight. The RFI filter is the H3 version, listed for class A1/B (C1) emissions, and the P21 housing is a backplate version intended to be built into an enclosure.

The heat of up to 698 W has to be removed by cabinet fans or a heat exchanger. The manufacturer guide gives the minimum free space above and below the heat sink, which in a crowded motor-control centre is often the limiting dimension.

Pump functions worth using

The AQUA guide includes the cascade controller for several pumps, sleep mode, short-cycle protection and an energy log. On a 37 kW pump set with an operating schedule that changes through the day, sleep mode and the cascade function can reduce the running hours of the pumps; the effect on energy use is plant-specific and has to be measured.

The type code ends in a string of X characters, which means no brake chopper, uncoated boards, no mains option and no option cards. Variants with a brake chopper, coated boards or a fieldbus have other code numbers.

For a station with duty and standby pumps, order identical drives for both, so that spare parts and parameter files can be shared. Keep a spare control card and fans on the shelf if the site is remote, since replacing a cooling fan is a routine maintenance item for drives of this size and a stocked part shortens the repair.

Before you order 131F2674, compare it with the nameplate of the unit you intend to replace. Photographs of the nameplate help us to confirm the exact code quickly, and we will tell you plainly if a different version of the same family looks like a better fit for your duty.

Ordering notes

Please confirm supply, motor nameplate and ambient temperature before ordering. Seven Star LLC is an independent supplier in Muscat and can quote 131F2674. The attached file is the Danfoss FC 202 operating guide AQ267037400115; more drives are listed under AC drives.

Datasheets & Documents

Operating Guide Danfoss VLT AQUA Drive FC 202 Operating Guide AQ267037400115, 0.25-90 kW (manufacturer, unaltered) Download
