Danfoss 131B0001 FC 302 AutomationDrive 4 kW 380-500 V IP20

FC 302 4 kW without a panel: the machine-builder base unit with 160 % overload

Danfoss 131B0001 is an FC-302P4K0T5E20H1XX drive: 4.0 kW (5 HP), 380 to 500 V, IP20 chassis, A2 frame and RFI class A1/B. The “5” in the T5 position is what separates the FC 302 from a 380-480 V drive, because the supply range extends to 500 V. The store lists the rating at high overload, 160 %, with a continuous 10 A and an intermittent 16 A.

Because the LCP position reads X, there is no local control panel in this code. The drive is parametrised from a panel ordered separately, from a PC tool over the USB port, or from a fieldbus. That keeps the price and the stock simple for OEMs who set up many identical drives by downloading a parameter file.

Technical specifications

Where the FC 302 is chosen over a pump or HVAC drive

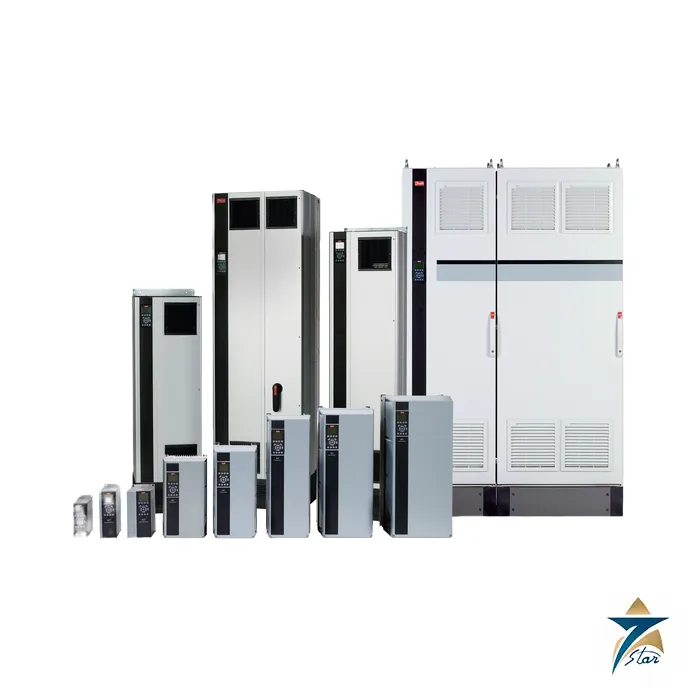

The AutomationDrive is the Danfoss platform for conveyors, mixers, extruders, packaging lines and test benches: loads that need torque control, positioning or tight speed regulation. The operating guide that we attach covers the FC 301 and FC 302 in enclosure sizes A to C, 0.25 to 75 kW, and explains the control terminals, the wiring and the commissioning steps.

The A2 housing is 268 x 90 x 205 mm (H x W x D) and weighs 4.5 kg. Power loss at high overload is 124 W, which is a modest heat load for a panel.

Reading the type code

FC-302P4K0T5E20H1XXXXXXSXXXXAXBXCXXXXDX: P4K0 = 4.0 kW, T5 = three-phase 380 to 500 V, E20 = IP20 chassis, H1 = RFI class A1/B, X = no brake chopper, X = no control panel, X = uncoated boards, and X in all option positions. Codes with a brake chopper, a panel or an option card are different products and have other numbers.

If you replace an existing unit, copy the whole type code from the nameplate, since small differences in the options may change the terminals and the firmware.

For repeat purchases of 131B0001, tell us the quantity you expect to use each year and the delivery point in Oman. That helps us to plan the enquiry with the manufacturer channel and to give you a realistic lead time, which we confirm only when we quote.

We prefer to confirm the application before quoting 131B0001: the medium or load, the supply or pressure, the ambient temperature and the standards that apply. A short message with these points avoids the wrong variant being ordered and keeps the project schedule safe.

Ordering notes

Confirm supply, motor data, options and the programming method before ordering. Seven Star LLC is an independent supplier in Muscat and can quote 131B0001 against your data. The attached file is the Danfoss FC 301 / FC 302 operating guide; related drives are under AC drives.
