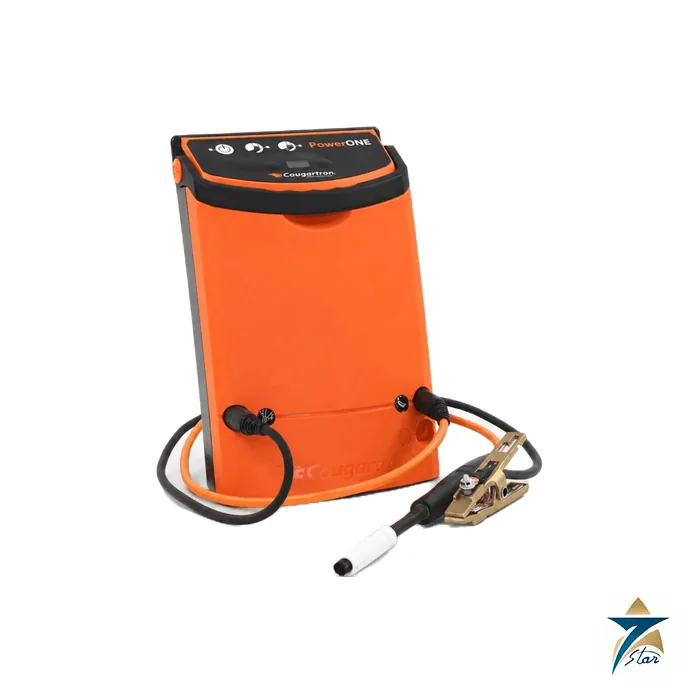

Cougartron PowerONE Entry-Level Weld Cleaning Machine

Overview

The Cougartron PowerONE is the entry point to the Cougartron weld-cleaning range. Cougartron introduced it as a brand-new entry-level machine and stresses that no shortcuts were taken: it carries the same safety and design features that buyers expect from the brand’s larger units. The machine focuses on two jobs, removing heat tint from stainless steel welds and marking parts, and leaves polishing to the higher models. That narrower scope keeps the unit simple to learn, light to carry and quick to put to work in a workshop that is moving away from pickling paste for the first time.

Seven Star LLC supplies the Cougartron PowerONE to small and medium fabrication shops, maintenance departments and installation contractors in the Sultanate of Oman and the GCC, with engineering support in Muscat. For teams that are new to electrochemical cleaning, we explain how the process fits their quality procedures, which consumables to keep on the shelf, and when it makes sense to step up to a polishing-capable model.

Working Principle

As a general description of the technology, the discoloured oxide that forms beside a stainless steel weld is thinner in chromium than the parent metal, and if left in place it becomes the starting point for rust spots and pitting. Electrochemical weld cleaning removes it by passing a low-voltage current from the machine, through a carbon-fibre brush wetted with cleaning fluid, into the workpiece. At the contact point the oxide dissolves quickly, and the cleaned surface is then able to rebuild its passive chromium-rich film in air.

The Cougartron PowerONE applies this principle with an AC cleaning output of 10 V and current adjustable from 0 up to 80 A, delivered through a single M8 Fury brush on a twist-shroud wand. A separate mark mode at 10 A and 10 V AC allows stencil marking of logos, batch codes or tag numbers. The machine is rated at 100% duty cycle, so it does not need rest periods during a normal shift. As general good practice, cleaned areas should be neutralised and wiped to remove any remaining fluid.

Engineering Design of the Cougartron PowerONE

The Cougartron PowerONE cabinet is compact: 15 inches high with the handle up, 9 inches wide and 7 inches deep, with an IP51 enclosure and CE, UL and CSA certification. Cougartron highlights an excellent power-to-weight ratio, and the complete Starter Set weighs 19 lbs. The control panel is a splash-proof membrane that is easily wiped clean, with power, clean and mark functions and a digital display. The handle is fixed rather than detachable.

Input is dual voltage, so the same Cougartron PowerONE works on a 110 V or 230 V supply; the US datasheet rates the 110 V connection at 8 A, 50/60 Hz, with a 6 ft supply cord. The output side uses 12 ft cables with x-connectors rated at 80 A and 6 AWG conductors, one carrying the brush handle and one ending in a ground clamp. For higher-volume work, the machine integrates easily with the FL21 fluid feed system (WELC1077), which keeps the brush wet automatically.

Key Features

The main reasons buyers choose the Cougartron PowerONE as their first weld cleaner are listed below:

• It is positioned as the entry-level model of the range while keeping the brand’s standard safety and design features.
• Operation is simple, with a clean mode and a mark mode on a clear membrane panel.
• Cleaning current is adjustable up to 80 A at 10 V AC with a 100% duty cycle.
• A 10 A marking mode supports permanent identification with Cougartron marking sets.
• Dual input voltage means one machine can be used on 110 V or 230 V supplies.
• The splash-proof membrane control panel is easy to wipe clean after contact with fluid.
• Standard 12 ft power and ground cables give useful reach around benches and assemblies.
• The unit integrates with the FL21 fluid feed system when continuous cleaning is required.

Industrial Applications

In Oman the Cougartron PowerONE is a practical choice for workshops that weld stainless steel regularly but in moderate volumes: kitchen and catering equipment makers, signage and architectural metalwork shops in Muscat, small skid and tank fabricators, and plant maintenance stores that need to treat occasional repair welds on stainless pipe and supports. Because the Cougartron PowerONE replaces pickling paste with a brush-applied process, it reduces the handling of strong acids and the need for rinse-water treatment in small premises.

The light weight of the Cougartron PowerONE also suits mobile service crews who travel between customer sites in Sohar, Nizwa, Duqm and Salalah and need to clean and mark welds on the spot. Seven Star LLC supplies the machine with replacement Fury brushes, CGT-550 cleaning fluid, marking sets, extension cables and the FL21 fluid feed, and supports customers across Oman and the GCC.

Technical Specifications

The Cougartron PowerONE data below is quoted from the manufacturer datasheet attached on this page.

The Starter Set contains the machine, cable with handle and cable with ground clamp (12 ft, 80 A), a wand and twist shroud for one M8 brush, an acid pot, a microfibre cloth, the 110 V supply cord, a large transport case with foam insert, one Fury brush, one quart of CGT-550 fluid and a small protective cover. Related welding equipment on our site includes the Lincoln Electric Power Wave S500, the ESAB Rebel EMP 285ic and the Lincoln Electric SuperArc L-59 ER70S-6 Solid MIG Welding Wire; more cleaning machines are listed under Weld Cleaning & Passivation.

Call To Action

To request a quotation for the Cougartron PowerONE, contact Seven Star LLC with your expected weekly cleaning workload and whether you need the FL21 fluid feed or marking kits. Our Muscat welding team will confirm the package, share the datasheet attached here and arrange delivery throughout Oman and the GCC.
