Cougartron Fury100XF Weld Cleaner with Integrated Fluid Feed

Overview

The Cougartron Fury100XF is the fluid-feed upgrade of the Fury100, a member of the Cougartron Heavy Duty Range. Cougartron took the proven 100 A cleaning and polishing platform and built a fully integrated fluid feed system into the cabinet, so the electrolyte reaches the brush through the torch cable instead of the operator dipping the brush into a pot every few seconds. The result is faster, more convenient cleaning with fewer interruptions on long seams. The manufacturer offers the machine in a standard 230 V version and a 110 V version, and states that even the 110 V unit cleans both light and dark MIG welds.

Seven Star LLC supplies the Cougartron Fury100XF to stainless steel fabricators, pipe spool shops and maintenance teams in the Sultanate of Oman and across the GCC, with engineering support in Muscat. We help customers confirm the input voltage version for their sites, choose between the Basic Set and the three starter sets, and plan the consumption of cleaning fluid, neutraliser and brushes for a fabrication campaign.

Why an Integrated Fluid Feed Matters

In general terms, electrochemical weld cleaning relies on a conductive brush, usually made of carbon fibre, which carries current and a mildly acidic electrolyte onto the weld. Where the wet brush contacts the heat-tinted zone, the coloured chromium-depleted oxide is dissolved and the stainless surface can rebuild its protective passive layer. The quality and speed of the process depend heavily on the brush staying properly wetted. With a manual setup the welder must stop regularly to re-soak the brush, and a dry brush cleans poorly and wears faster.

On the Cougartron Fury100XF, the fluid travels from a bottle housed inside the machine through a dedicated cable with handle (part WELC2878, 20 ft, 200 A DINSE with fluid feed) to the twist-shroud wand. The operator controls the flow while working, which keeps the brush consistently wet, cuts fluid waste and reduces drips on the workpiece. Cleaning runs on 10 to 16 V AC, polishing switches to 10 to 12 V DC for a brighter finish, and marking uses 12 V AC at low current for stencil etching.

Engineering Design of the Cougartron Fury100XF

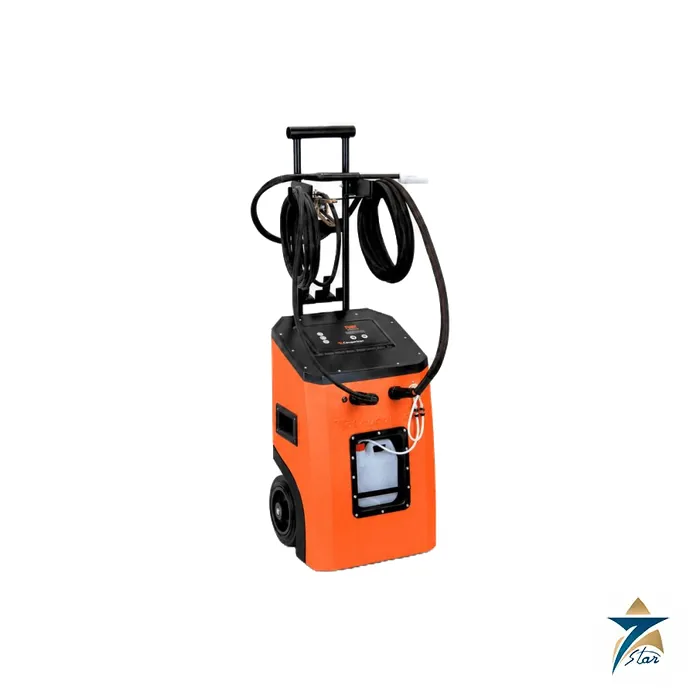

Physically the Cougartron Fury100XF shares the rugged heavy-duty cabinet of its range: 15 by 13 by 25 inches for the machine unit, rising to 46 inches with the collapsible steel handle extended, on large wheels for moving around the shop. A window in the side of the cabinet gives sight of the internal fluid bottle, and the handle is detachable. The enclosure is rated IP51, and the datasheet lists CE, UL and CSA certification.

The US datasheet attached on this page describes the 110 V Cougartron Fury100XF, with a 110 V AC, 50/60 Hz, 15 A supply through a 12 ft input cable. Output is delivered through 20 ft work and ground cables of 2 AWG section. The front panel groups a power switch, mode selector, work-mode selector, power control and display screen. Wand and twist-shroud sets for fluid feed are offered for one M8 brush (WELC2891) and two M8 brushes (WELC2892), and a 1 gallon fluid bottle with drilled cap (WELC5037) is listed for refilling.

Key Features

These are the points that define the Cougartron Fury100XF in daily use:

• The fully integrated fluid feed keeps the brush wet automatically, so cleaning continues without repeated stops to re-dip the brush.
• On the Cougartron Fury100XF, TIG weld cleaning is rated at a 100% duty cycle for continuous production work.
• MIG weld cleaning is specified for material up to 0.4 inch thickness.
• Cleaning and polishing current is adjustable from 20 to 100 A in 20 A increments, with adjustable voltage as well.
• Marking and etching are supported from 2 to 10 A and the machine is compatible with the Cougartron Basic Etching Set.
• Standard 20 ft work and ground cables give generous reach on tanks, frames and pipe spools.
• One- and two-brush adaptors are available for narrow fillet welds or wider butt welds.
• Input versions for 230 V and 110 V supplies allow the same model to suit different site power arrangements.

Industrial Applications

The Cougartron Fury100XF suits shops in Oman that clean a steady volume of stainless TIG welds every day, for example on hygienic process piping for dairy, beverage and pharmaceutical plants, water and wastewater skids, and instrument and chemical-injection tubing panels for oil and gas packages. Because the feed eliminates constant dipping, operators can treat long circumferential pipe welds and frame joints in one continuous pass, which is where the time saving becomes noticeable on a spool-fabrication schedule.

The Cougartron Fury100XF MIG capability up to 0.4 inch material also covers structural stainless items such as platforms, handrails, ladders and enclosures for coastal installations in Muscat, Sohar and Duqm, where heat tint left untreated can quickly turn into tea staining in the humid, salty air. Seven Star LLC supplies the Cougartron Fury100XF together with CGT-550 cleaning and polishing fluid, CGT-N5 neutralising fluid, Fury brushes and marking sets, and supports buyers throughout Oman and the GCC.

Technical Specifications

The Cougartron Fury100XF figures below are taken from the manufacturer’s US datasheet for the 110 V version.

Every set includes the large transport case with foam insert, the fluid-feed cable with handle, the ground cable and a protective cover; starter sets add fluids, wands, brushes and protective gear, and sets B and C add marking kits. For matching welding equipment see the Lincoln Electric Power Wave S500, the ESAB Rebel EMP 285ic and the Lincoln Electric SuperArc L-59 ER70S-6 Solid MIG Welding Wire, or visit our Weld Cleaning & Passivation section.

Call To Action

For a quotation on the Cougartron Fury100XF, send Seven Star LLC your required input voltage, preferred set and the type of welds you clean. Our Muscat team will confirm the configuration, provide the datasheet attached here and organise delivery to your site in Oman or elsewhere in the GCC.
