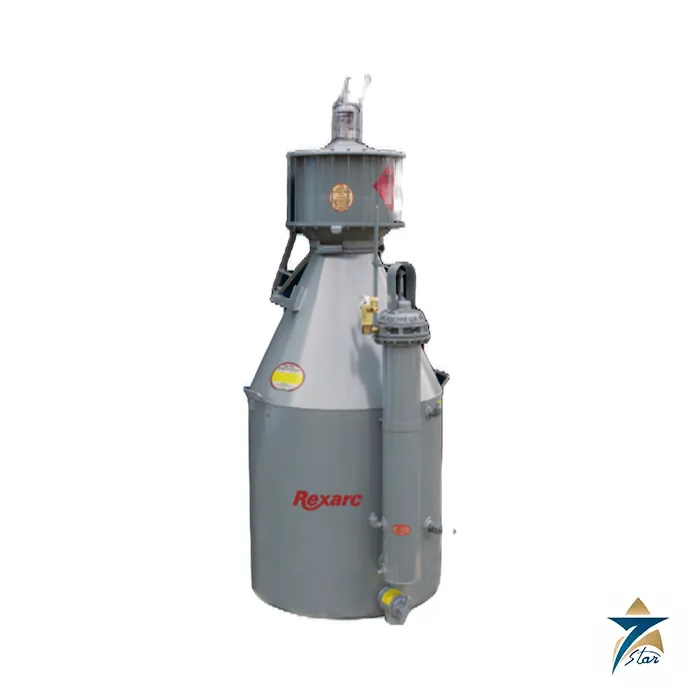

Rexarc 50-PS Portable Acetylene Generator

Name: Rexarc 50-PS Portable Acetylene Generator – Datasheet & Quote
Brand: Rexarc
SKU: 50-PS

A portable calcium carbide acetylene generator for point-of-use welding gas

The Rexarc 50-PS is a portable acetylene generator that makes acetylene on the job in the quantity required, so there are no cylinder costs and no acetylene is left unused in a cylinder. Rexarc notes that up to 15 percent of the acetylene bought in a cylinder can stay in the cylinder with its acetone solvent. The generator operates at any chosen pressure up to 1.05 kg/cm2 (15 psig), and the pressure can be held within close limits.

It is charged with 23 kg of 14ND carbide and 190 litres of water and is rated at 2.8 m3 per hour. Safety features include carbide feeding that stops when generation exceeds demand or the operating lever is closed, a factory-set pressure relief valve, and a safety check and flashback arrester.

Technical specifications

Parameter	Specification
Manufacturer / model	Rexarc International / 50-PS portable acetylene generator
Part numbers	4-12-0018A generator only; 4-12-0022A with hand truck; 3-08-0009 hand truck only
Rated capacity	2.8 m3 per hour
Carbide per charge	22.8 kg (14ND carbide)
Water	190 litres
Maximum operating pressure	1.05 kg/cm2 (15 psig)
Height	1702 mm
Diameter	661 mm
Net weight	77.1 kg
Charged weight	282 kg
Truck wheels (4-12-0022A)	400 mm rear, 150 mm front
Safety	Pressure relief valve, safety check, flashback arrester, check valve

Inside the generator

The flyer labels the working parts: a pressure-adjusting screw, operating lever, spring and diaphragm drive an interface arm and feed rod that meter carbide into the water, with a breech lock, tip protector, service outlet valve, safety check, pressure relief valve, outlet pipe, filter, baffles, flashback arrester, agitator, check valve and tank drain valve. Because the feed responds to the diaphragm, generation follows demand.

Applications and points to confirm

The 50-PS suits remote sites and workshops with low acetylene use where cylinder logistics are costly. The Rexarc documents give the gas per charge differently (the flyer says about 7 m3 or 7000 litres, the web page about 2.8 m3), and the shipping weight also differs between sources, so those two values are not relied on here; confirm gas per charge and shipping data with the supplier. Check local rules for generator use, carbide storage and residue disposal before ordering, and train operators on the manufacturer instructions.

Documents and quotation

The Rexarc 50-PS portable acetylene generator flyer is attached under Datasheets & Documents. Related equipment is in our Oxy-Fuel Cutting Equipment category.

For a quotation, send the part number (with or without hand truck), quantity and destination.

Rexarc is a US manufacturer of acetylene generation, cylinder filling and industrial gas distribution equipment, founded in 1924 and based in West Alexandria, Ohio. Seven Star LLC is an independent supplier in Muscat and lists Rexarc acetylene plants and liquid flashback arresters for workshops, gas fillers and fabrication plants in Oman and the GCC.

Rexarc equipment listed on this page

Acetylene plants: Model 925 and the ATX Series cylinder filling plants, and the 50-PS portable generator.
Safety devices: liquid flashback arresters in Models 3 to 150.

Ordering Rexarc equipment: what we need

Send the model, the required acetylene output or number of cylinders to fill, the site utilities available and the quantity. For flashback arresters, state the gas, the flow and the pipe size. We check the model against the manufacturer documents before quoting.
