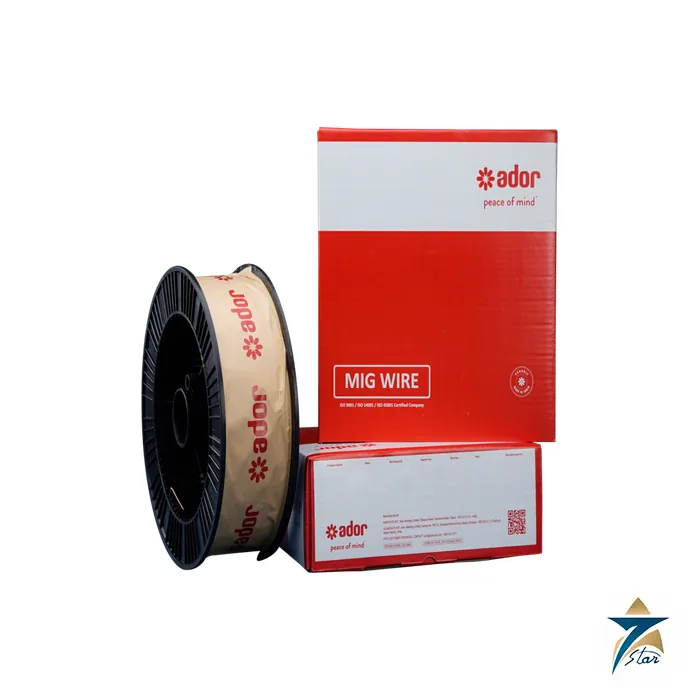

Ador Miginox 2209 ER2209 Duplex Stainless MIG Welding Wire

Overview

Ador Miginox 2209 is an extra low carbon 22Cr/9Ni/3Mo/N duplex stainless steel solid wire for gas metal arc welding, produced by Ador Welding Limited and classified to AWS A/SFA 5.9 ER2209 and EN ISO 14343-A G 22 9 3 N L. The wire gives an austenitic-ferritic weld deposit that the manufacturer says combines high strength with resistance to chloride-induced stress corrosion cracking and pitting, and it can be applied at operating temperatures up to 200°C. CE approval is printed on the official data sheet. For shops producing duplex spools, vessels and skids in volume, a MIG wire raises productivity well beyond what stick electrodes or TIG rods can achieve on fill and cap passes.

Seven Star LLC supplies the Ador Miginox 2209 to fabricators and maintenance contractors in Oman and the wider GCC. The manufacturer datasheet is attached so engineers can confirm the wire chemistry, shielding gas options and mechanical minimums before committing it to a procedure qualification.

Semi-Automatic Welding of 2205 Duplex

As general welding knowledge, MIG welding of duplex stainless is commonly performed in pulsed spray or short-circuit modes with argon-based gases containing small additions of oxygen or carbon dioxide to stabilise the arc. The filler is enriched in nickel compared with 2205 base metal so that the weld develops enough austenite during cooling. The typical bare wire analysis of the Ador Miginox 2209 is 0.015 C, 1.5 Mn, 0.4 Si, 22.5 Cr, 8.7 Ni, 3.3 Mo and 0.15 N; the very low carbon level helps protect against sensitisation.

Heat input control remains important with any duplex filler, and in general practice welders aim to keep both heat input and interpass temperature inside qualified limits to avoid either excessive ferrite or intermetallic precipitation. Modern pulsed MIG power sources make that control easier, which is a reason why semi-automatic duplex welding has spread in pipe shops and on fabrication lines.

Wire feeding is another practical consideration. Stainless and duplex wires are stiffer than mild steel wire, so feed rolls, liners and contact tips suited to stainless are generally recommended, and the liner should be kept clean to prevent erratic feeding. Using a dedicated feeder or liner for stainless work also avoids carbon steel contamination being carried into the weld. Gas coverage must be checked regularly, since draughts in open fabrication bays can disturb shielding and lead to porosity or surface oxidation that would need removal before inspection.

Engineering Design of the Ador Miginox 2209

The wire is offered in 1.2 mm and 1.6 mm diameters on 12.5 kg spools. Ador specifies DCEP polarity and all-position use, with shielding of either 98 percent argon plus 2 percent oxygen or argon with 1 to 5 percent carbon dioxide at 15 to 22 litres per minute. The storage instruction is to keep the wire dry and follow the handling guidance printed on the box.

Specification minimum properties for as-welded all weld metal are 690 MPa ultimate tensile strength and 20 percent elongation. Those values align with the strength level of 2205 duplex plate and pipe, so the Ador Miginox 2209 can be used on load-bearing and pressure-retaining joints without becoming the weaker part of the assembly. Exact acceptance criteria, including any hardness or ferrite limits, are set by the project specification.

Key Features

The following features of the Ador Miginox 2209 are taken from the data sheet.

• Extra low carbon 22Cr/9Ni/3Mo/N duplex stainless steel MIG wire.
• Austenitic-ferritic weld deposit for duplex 2205 and 2209 grades.
• Excellent combination of high strength and resistance to chloride induced SCC and pitting.
• Can be applied for operating temperatures up to 200°C.
• Radiographic quality welds.
• All-position operation on DCEP.
• Two shielding gas options: Ar/2O2 or Ar with 1-5 percent CO2.
• CE approval printed on the datasheet.

Industrial Applications

Ador lists the welding of 2205 and 2209 type duplex stainless steels and similar grades, pipelines transporting chloride-bearing products and sour gases, cladding on carbon and low alloy steels, cast pumps, valve bodies and seawater handling equipment, as well as chemical equipment, heat exchangers and offshore platforms. In the Omani market, typical users include spool fabricators supplying gas plants and oil field stations, tank builders for chemical terminals, and contractors producing duplex piping for seawater cooling at power stations. The Ador Miginox 2209 is particularly suited to shop fabrication, where pipe can be rolled and welded efficiently. Positioners and rotators allow welders to keep the joint in the flat position, which supports consistent bead shape and reduces rework.

Overlay and cladding work is a further use. Buttering carbon steel components with a duplex layer is a known way to improve corrosion resistance at a lower cost than solid duplex construction. Seven Star LLC supplies the Ador Miginox 2209 for these jobs and can provide the related Ador duplex fillers, such as Tiginox 2209 rods and Betanox 4462 electrodes, for roots and site repairs on the same project. Combining consumables from one manufacturer simplifies traceability documents and material certificates for the client.

Technical Specifications

The table lists Ador Miginox 2209 values from the official data sheet.

Related Welding Products

For pulsed MIG welding of duplex stainless, many shops use an advanced power source like the Power Wave S500; a lighter option is the ESAB Rebel EMP 285ic. Carbon steel framework on the same skid can use ER70S-6 SuperArc L-59. See more MIG solid wires.

Call To Action

For an Ador Miginox 2209 quotation, please share the wire diameter, number of 12.5 kg spools and the delivery location in Oman or the GCC. The Ador Miginox 2209 datasheet is downloadable on this page, and the Seven Star LLC welding team in Muscat can advise on gas selection and companion duplex consumables.
