JUMO TYA 203 Three-Phase Thyristor Power Controller

Name: JUMO TYA 203 Three-Phase Thyristor Controller | Seven Star
Brand: JUMO
SKU: TYA 203

Description

Three-phase thyristor controller for heating and transformer loads

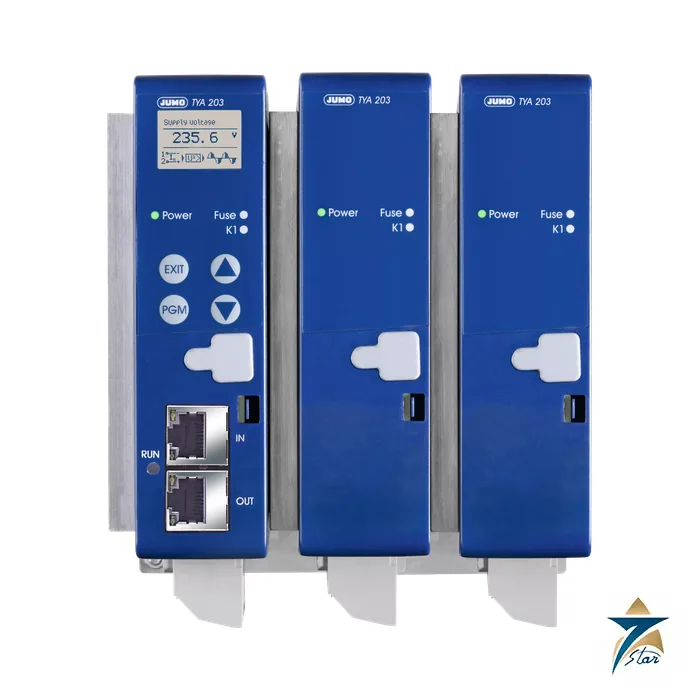

The JUMO TYA 203 (type 709063) is a three-phase thyristor power controller that switches resistive and resistive/inductive (transformer) loads through a three-wire circuit. The load can be wired in star with or without neutral, in delta, or as an open delta with six conductors. A microprocessor controller shows all parameters on a backlit LCD with an info line, and four front keys operate it.

The data sheet names industrial furnace construction and plastics processing as typical uses. The device runs in phase-angle or burst-firing mode, and in burst firing the first half-wave can be cut so that transformers can also be driven. Every unit is fitted with a semiconductor fuse. Load currents are 20, 32, 50, 100, 150, 200 and 250 A, and the 20 A unit can be clipped to a 35 mm rail or fitted to a plate while larger units are wall-mounted.

Technical specifications

Parameter	Specification
Data sheet type	709063
Load current (rms)	20, 32, 50, 100, 150, 200, 250 A
Load circuits	Three-wire: star with or without N, delta, open delta
Operating modes	Phase-angle control, burst firing, alpha start for transformer loads
Subordinate control	U, U2, I, I2 or P control
Setpoint	Standard signals 0 to 10 V, 2 to 10 V, 0 to 5 V, 1 to 5 V, current, or interface
Interfaces	RS422/485, PROFINET, PROFIBUS-DP, JUMO mTRON T system bus, EtherCAT; USB for setup
Cooling	Natural convection up to 200 A; forced convection with fan above 200 A
Ambient temperature	0 to 45 C self-cooled; 0 to 40 C with fan (250 A)
Protection	IP20
Weight	About 3.3 kg (20 A) to about 30 kg (250 A)
Approval as printed	UL 508 (file E223137, load current 20 A listed)

Control features

Soft start limits inrush, current limiting protects the load and a base load can be preset. Load monitoring by Teach-In detects partial load failure or a shorted load, and rotating-field detection is built in. For molybdenum disilicide heating elements there is resistance monitoring and limitation.

Dual energy management optimises network load when several controllers share a supply, and close side-by-side mounting is permitted for compact cabinets.

Ordering and cabinet design

Choose the load current from the heater power and mains voltage, then the control mode, interface and options. As a derived example, a 30 kW furnace on 400 V draws about 43 A per phase, which points to the 50 A rating once cabinet temperature and margin are checked.

The 250 A unit needs the fan, so plan air flow and filters. The device must be earthed according to the rules of the local supplier, and the data sheet reminds that the cooling body can reach 110 C. Confirm the full type code and the approval of the chosen rating before ordering.

Fuse coordination, the mains frequency, the heater type and whether a transformer is switched all influence the choice between phase angle and burst firing, so state them in your request.

Documents and quotation

Open the attached JUMO TYA 203 data sheet 709063 (EN) for the complete data and dimension drawings. Before you place an order, confirm the load current, mains voltage and interface with the system designer, then submit your request with the exact code; our team prepares the quotation. Related items are listed under Power Modules.
