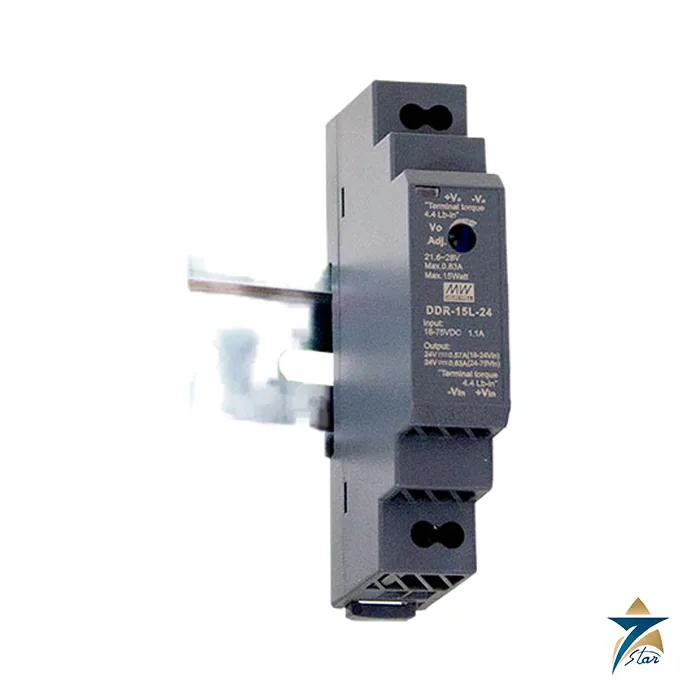

Mean Well DDR-15L-24 DIN Rail DC-DC Converter

Name: Mean Well DDR-15L-24 DIN Rail DC-DC Converter – Datasheet
Brand: Mean Well
SKU: DDR-15L-24

A 17.5 mm DIN rail DC-DC converter with 4:1 input range

The Mean Well DDR-15L-24 is a 15 W DIN rail DC-DC converter that turns an 18 to 75 Vdc input into a regulated 24 V DC output at 0.63 A. The DDR-15 series is only 17.5 mm wide, one standard unit on the rail, and Mean Well specifies a 4:1 ultra-wide input range, -40 to +85 C operation and 4 kVdc isolation between input and output.

The L-type covers 18 to 75 Vdc input and the G-type covers 9 to 36 Vdc, so a 24 V, 48 V or 72 V battery or bus can feed the converter directly. Typical efficiency is 87% at 24 V output. The converter includes input reverse polarity protection with an internal MOSFET, input under-voltage lockout (on at 18 V or above, off at 17 V or below), overload hiccup protection and overvoltage shutdown.

Technical specifications

Parameter	Specification
Manufacturer / series	Mean Well, DDR-15 (L-type)
Model	DDR-15L-24
DC output	24 V DC / 0.63 A
Power rating	15 W
Trim range	21.6 to 28 V
Ripple (max.)	100 mVp-p
Setpoint tolerance	+/-2.0%
Regulation (line / load)	+/-0.5% / +/-0.5%
Mains input	18 to 75 Vdc
Typical efficiency	87%
Input DC current (typ.)	0.4 A at 48 Vdc
Inrush (typ.)	15 A at 48 Vdc
Hold-up (typ.)	16 ms at 48 Vdc input
Maximum external capacitance	680 uF
Overload behaviour	110 to 150%, hiccup mode, automatic recovery
Overvoltage limit	28.8 to 32.4 V, shut down; re-power to recover
Reverse polarity protection	Internal MOSFET, automatic recovery
Under-voltage lockout	On at 18 V or above; off at 17 V or below
Ambient operating range	-40 to +85 C, with derating curve
Isolation	Input-output 4 kVdc withstand
Size (W x H x D)	17.5 x 90 x 54.5 mm
Mass	68 g

Where a DIN rail DC-DC converter is used

A converter in the control cabinet creates a regulated, isolated rail from a battery bank, a DC bus or a 48 V telecom supply. Mean Well lists industrial control systems, factory automation, electro-mechanical equipment, wireless networks and telecom systems as applications, and also mentions the converter as a voltage-drop compensator along long cables. The 4 kVdc isolation keeps the load rail separate from the source, which helps with ground loops.

Sizing and installation

Only 15 W is available, so total the load current: 0.63 A at 24 V is the limit and the supply goes into hiccup protection at 110 to 150% of rated power. Check the capacitance of the load against the 680 uF maximum external capacitance, or start-up may fail. The datasheet limits the altitude to 2000 m for L-type units and the safety standards listed are IEC 62368-1 and AS/NZS 62368.1, with design referring to UL 508. The unit snaps on TS-35/7.5 or TS-35/15 rail. Check the polarity of the DC source before connection and use a fuse in the input line sized to the 0.4 A typical input current at 48 Vdc.

Documents and quotation

The datasheet attached to this page belongs to the DDR-15 family and includes dimensions, derating information and the model table. To obtain a quotation for DDR-15L-24, tell us the quantity, the voltage and frequency of the site supply, the real load profile, the cabinet temperature and the approvals that apply. Browse Power Modules for alternatives.

Mean Well power supply families

The catalogue covers DIN rail power supplies from 15 W to several hundred watts in single-phase and three-phase versions, enclosed chassis supplies with fan or convection cooling, medical-standard supplies, DIN rail DC-DC converters and many other formats. Each series has a datasheet that lists all output voltages, derating curves and approvals. The standard catalogue format suits machine builders, panel builders and maintenance teams that need a documented, replaceable supply rather than a custom design.
