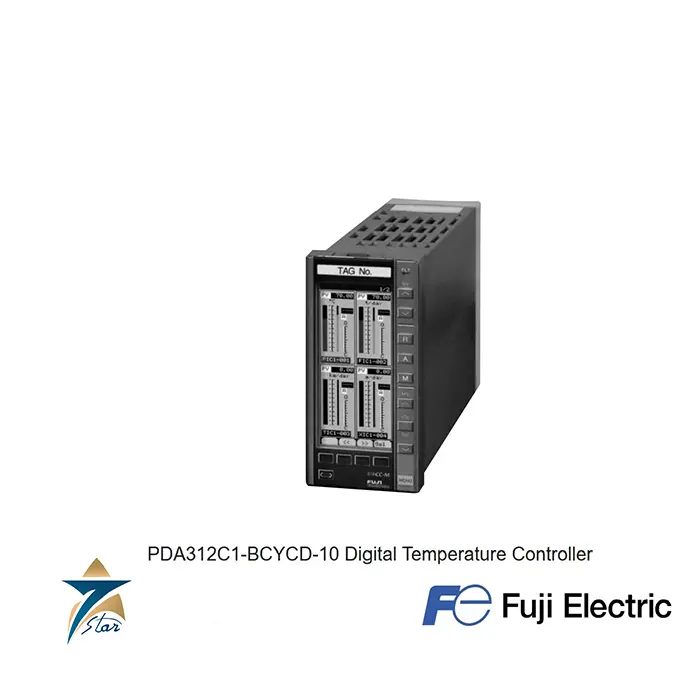

Fuji Electric France PDA312C1-BCYCD-10 Digital Temperature Controller
Overview
The Fuji Electric France PDA312C1-BCYCD-10 Digital Temperature Controller is engineered to provide reliable and accurate temperature control in industrial environments. As part of Fuji Electric’s wide range of temperature control products, this controller supports diverse input types including thermocouple and analog signals and delivers precise continuous control outputs essential for maintaining process conditions.
Programmable and configurable, the PDA312 series integrates communication capability via RS485 and features both analogue input and analogue output channels, making it suitable for integration with PLCs, DCS, and SCADA systems. This controller is often used in manufacturing, processing, HVAC automation, and laboratory applications where temperature stability and control accuracy are critical.
Technical Features & Configuration
-
Model: PDA312C1-BCYCD-10 (Programmable continuous output type)
-
Control Loops: 1 loop with 1 control output
-
Input Type: Thermocouple or 1–5 VDC analogue input
-
Output: Continuous analogue output with optional current output configurations
-
Power Supply: 24 VDC (Usable range 20–30 VDC)
-
Communication: RS485 interface for remote monitoring and control
-
Modes: Cascade-Auto-Manual changeable type
-
Included Accessories: 250 Ohm shunt resistor for DC current input (20 pcs), communication cable set (5 pcs)
-
Analogue I/O: 5 analogue inputs and 5 analogue outputs (1–5 VDC range)
This flexible configuration allows the PDA312C1-BCYCD-10 to adapt to a wide variety of industrial control scenarios requiring programmable temperature regulation with data interfacing capabilities.
Industrial Applications
The PDA312C1-BCYCD-10 temperature controller is widely used in industrial processes where precise heat control and automation are required, including:
-
Manufacturing and processing plants requiring temperature stability for product quality
-
HVAC and climate control systems in commercial and industrial facilities
-
Laboratory and test equipment requiring repeatable temperature control
-
Industrial ovens, furnaces, and kilns where programmable control improves process efficiency
This controller’s programmable nature and communication interfaces make it suitable for complex systems where integrated control and monitoring are essential.
Installation & Integration
Installation is typically performed in panel-mount configurations with secure electrical and sensor connections. The RS485 communication enables remote control, configuration, and integration into broader automation systems. Correct wiring and calibration ensure reliable control and optimal performance for the specific application.
Request a Quote for Fuji Electric France PDA312C1-BCYCD-10 Digital Temperature Controller
Request a quote for the Fuji Electric France PDA312C1-BCYCD-10 Digital Temperature Controller to enhance your industrial temperature control systems. Contact Seven Star LLC for pricing, availability, and technical support.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Fuji Electric France |
| Model | PDA312C1-BCYCD-10 |
| Series | PDA3 series, Compact Controller M (CC-M) |
| Input Types | Thermocouple or 1–5 VDC analogue input |
| Power Supply | 24 VDC (usable range 20–30 VDC) |
| Communication | RS485 |
| Control Modes | Cascade-Auto-Manual changeable type |
| Included Accessories | 250 Ohm shunt resistor for DC current input (20 pcs), communication cable set (5 pcs) |
| Status | Discontinued (May 2010) |
Technical Overview
The Fuji Electric PDA312C1-BCYCD-10 belongs to Fuji Electric’s PDA3 series, marketed by Fuji Electric France as the "Compact Controller M" (CC-M) — a multi-loop programmable process controller rather than a simple single-loop temperature controller. Per Fuji Electric’s own official documentation, the PDA3 series supports configurable analog inputs (1–5V DC), thermocouple inputs, and Pt100 RTD inputs across multiple channels, with output options including up to 4 analog outputs, up to 10 digital/relay outputs, and up to 4 manipulating outputs for control signaling.
The controller supports PID control including cascade configurations (primary plus secondary PID loops), handling up to 4 control loops or 8 PID modules in a multi-loop configuration, and features a color graphic LCD display capable of showing real-time trend data for process variable, setpoint, and output signals. Fuji Electric’s own official "Discontinued Products" listing confirms the PDA3/CC-M series was discontinued in May 2010, with no directly listed factory replacement model; Seven Star LLC notes this plainly so customers can plan accordingly, whether sourcing genuine remaining stock for an existing installation or considering Fuji Electric’s current PXR/PXF/PXG single-loop controller lines for a new design. The precise meaning of the full ordering-code suffix "BCYCD-10" on this specific unit was not independently decoded against an official Fuji Electric ordering-code table during this review; customers should confirm the exact input/output configuration encoded in this suffix against their existing unit’s nameplate or with Seven Star LLC before ordering a replacement.
Applications
The PDA3/CC-M series is used for multi-loop industrial temperature, pressure, and flow process control in applications requiring soft-logic programmability (via ISaGRAF) and integrated data logging, historically common in French and European industrial process plants using Fuji Electric’s instrumentation range.
Why Seven Star LLC
For a discontinued controller like the PDA3 series, Seven Star LLC helps customers across Oman and the GCC weigh the tradeoff between sourcing genuine remaining stock to maintain compatibility with an existing installation’s wiring and configuration, versus migrating to Fuji Electric’s current-generation single-loop or multi-loop controller platforms for a new or upgraded control panel design.
Request a Quote for Fuji Electric France PDA312C1-BCYCD-10 Digital Temperature Controller
Contact Seven Star LLC to discuss availability of the Fuji Electric PDA312C1-BCYCD-10 controller, or to request a quotation for a current-generation Fuji Electric process controller as a replacement. Our team supports configuration verification and reliable delivery across Oman and the wider GCC region.
Ordering Notes
When requesting a quotation, please provide the full nameplate details of your existing PDA3/CC-M unit, including the complete ordering code, so Seven Star LLC can attempt to confirm an exact match against available genuine stock, or recommend the closest compatible current-generation Fuji Electric controller for your control panel’s wiring and I/O requirements.
Migration Planning
Because the PDA3/CC-M series has been discontinued for over a decade, plants still relying on this controller for critical process loops should treat continued reliance on remaining stock as a temporary bridge rather than a long-term strategy. Seven Star LLC can help develop a phased migration plan to a current-generation Fuji Electric controller, timed to coincide with a scheduled control panel upgrade or maintenance shutdown, minimizing the risk of an unplanned control loop outage when the last available legacy units are eventually exhausted.
Related Products
Fuji Electric instruments for process control
The instrumentation program of Fuji Electric France covers PID temperature controllers such as the PXF series, SCR power controllers, pressure transmitters including the FCX-AIV series, ultrasonic and electromagnetic flow meters, temperature probes and transmitters, and gas analyzers. A panel-mounted controller reads a thermocouple or RTD and drives a heater, valve or power controller to hold a setpoint. Furnaces, dryers, extruders and utility skids in the GCC are typical places to find one.Ordering Fuji Electric controllers: what we need
Fuji order codes are position coded: front size, input type, control output, alarm and communication options and supply voltage each have their own character. Send the complete code from the side label, such as PDA312C1-BCYCD-10, together with the serial number. If the code can no longer be ordered, tell us the sensor type, output type, supply voltage and panel cutout so the manufacturer's current equivalent can be matched.Browse Fuji Electric products by category: Controllers & Data Acquisition.
