Woodward 505XT Digital Governor Steam Turbine Control System
Overview
The Woodward 505XT is the current-generation digital governor and control system for single-valve or split-range steam turbines, purpose-built to regulate speed, load, and process variables such as inlet or extraction pressure with the accuracy demanded by generator and mechanical-drive turbine applications. It directly succeeds the earlier Woodward 505 platform, replacing legacy hardware with minimal wiring changes while adding a larger 8.5-inch color touchscreen-style display, Ethernet connectivity, and expanded protection and monitoring functions, making the 505XT the model Woodward and its distributors now recommend for new steam turbine control projects and for retrofitting older 505 installations.
As a supplier of Woodward products, Seven Star LLC supplies the 505XT digital governor to power generation, refining, and process utility customers across Oman, Muscat, and the wider GCC, backing every unit with locally available technical assistance.
Control Principle
The Woodward 505XT runs three independent, fully configurable control channels in parallel: a primary speed/load PID loop that compares actual turbine speed against setpoint and drives the steam admission valve accordingly; an auxiliary channel that can act as either a second controlling loop or a limiting function on parameters such as extraction pressure, temperature, or load; and a cascade channel that adjusts the speed setpoint automatically in response to an external process signal such as header pressure. Two configurable speed inputs accept magnetic pickups or proximity probes, giving the control system redundant, high-integrity speed sensing for overspeed protection and normal governing alike.
This three-channel architecture lets a single 505XT handle straightforward speed governing on a mechanical-drive turbine or a fully cascaded pressure-and-load control scheme on a cogeneration turbine-generator set, without external logic solvers. Because the control algorithms, valve linearization curves, and start-up sequencing are all resident in the 505XT firmware, the practical consequence for the plant is a single, self-contained panel that replaces a rack of discrete relays, indicators, and analog controllers formerly required to safely start, load, and protect a steam turbine.
Engineering Design of the Woodward 505XT

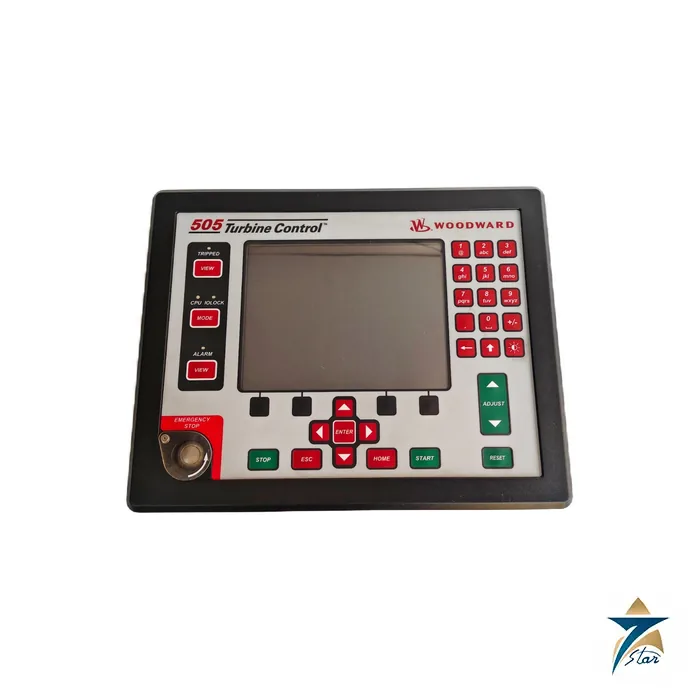

The Woodward 505XT is housed in a panel-mount enclosure with an 8.5-inch, 800×600 pixel color LCD display, front-panel keypad, and dedicated tripped/alarm/CPU-status indicators, giving operators clear at-a-glance status without needing a separate HMI station. The unit accepts either AC power (88–264 V, 50/60 Hz) or DC power (90–150 V), and is rated for an operating and storage temperature range of -30°C to +70°C in an IP20 enclosure, suitable for typical turbine-hall control room and local panel installations.
I/O capacity mirrors the demands of a full turbine control application: six programmable 4-20 mA analog inputs, sixteen contact inputs (four dedicated, twelve configurable), two linearized actuator driver outputs, six 4-20 mA analog outputs, and eight Form-C relay contacts. Communications are provided over dual Modbus ports (RS-232, RS-422, or RS-485, ASCII or RTU) plus Ethernet and CANopen, allowing the 505XT to report to a plant DCS or SCADA system while also supporting direct field programming and diagnostics, and the unit is designed as a drop-in replacement for legacy 505 installations with minimal rewiring.
Key Features
The Woodward 505XT brings a proven steam turbine control architecture up to current digital and communications standards. Key features include:
- Three independent control channels – speed/load, auxiliary, and cascade – configurable for single-valve or split-range turbines.
- 8.5-inch color display with dedicated tripped, alarm, and CPU-status indicators for fast operator diagnosis.
- Dual redundant speed inputs supporting magnetic pickups or proximity probes for reliable overspeed protection.
- Six analog inputs, sixteen contact inputs, and eight Form-C relay outputs for full turbine I/O coverage.
- Ethernet, Modbus (RS-232/422/485), and CANopen communications for DCS/SCADA integration.
- Automatic, semiautomatic, or manual start modes with hot/cold start differentiation and critical speed avoidance.
- Designed as a direct, minimal-rewiring replacement for legacy Woodward 505 governor installations.
- AC or DC power input flexibility (88–264 VAC or 90–150 VDC) for varied plant electrical standards.
Industrial Applications
The Woodward 505XT is specified wherever a steam turbine drives a generator or a mechanical load and needs precise, protected speed and load control, and Seven Star LLC sees consistent demand for it across Oman’s power generation, refining, petrochemical, and district cooling sectors, including cogeneration turbine-generator sets at industrial estates, back-pressure turbines feeding process steam headers, and mechanical-drive turbines powering large compressors and pumps in the Sohar and Salalah economic zones. Retrofits of aging legacy 505 governor panels onto the 505XT platform are equally common as plants extend the operating life of existing turbine trains.
As the trusted supplier for Woodward, Seven Star LLC supplies the 505XT digital governor to EPC contractors, rotating-equipment engineers, and plant maintenance teams across Oman and the GCC, supplying genuine control panels together with the application engineering support needed to configure the correct control channels, I/O mapping, and communication protocol for each turbine.
Technical Specifications
The table below summarizes the principal Woodward 505XT specifications for this digital governor and steam turbine control system, useful for retrofit and new-build reference.
| Parameter | Specification |
|---|---|
| Model | Woodward 505XT |
| Product type | Digital governor / steam turbine control system |
| Control channels | Speed/load, auxiliary, and cascade – three independent PID channels |
| Speed inputs | 2 x configurable magnetic pickup or proximity probe inputs |
| Analog I/O | 6 x 4-20 mA analog inputs, 6 x 4-20 mA analog outputs, 2 x actuator driver outputs |
| Contact I/O | 16 contact inputs (4 dedicated, 12 configurable); 8 Form-C relay outputs |
| Communications | Ethernet, dual Modbus (RS-232/RS-422/RS-485), CANopen |
| Display | 8.5″ color LCD, 800 x 600 pixels |
| Power input | 88–264 VAC (50/60 Hz) or 90–150 VDC |
| Operating temperature | -30°C to +70°C |
| Enclosure rating | IP20, panel mount |
| Dimensions / Weight | 14 x 11 x 4 in (W x H x D); 4.1 kg (9.1 lb) |
Request a Quote for Woodward 505XT
Seven Star LLC invites power generation and process engineering teams across Oman and the GCC to submit a formal RFQ for the Woodward 505XT digital governor. We supply on request with lead time confirmed at quotation, can provide the full manufacturer product specification and technical datasheet on request, and our instrumentation and rotating-equipment division is available to help configure the correct control channels, I/O, and communications for your steam turbine. In Oman and the GCC, Seven Star LLC provides dependable local technical support for every 505XT supplied.
Browse the full Woodward range or see more Controllers & Data Acquisition products supplied by Seven Star LLC in Oman and the GCC.
- datasheet Woodward 505XT Product Specification Download
Woodward products listed
Three items show the spread of the industrial line. The 505XT is a digital governor for industrial steam turbines, the larger sibling of the 505. The SPM-D10 is a synchronizing unit that matches a generator to a bus before the breaker closes. The TecJet 50 Plus is a gas fuel control valve with built-in actuator and electronics, used to meter fuel on gas engines. Buyers who search for Woodward gas valves or Woodward governor control systems usually need one of these families.Ordering Woodward parts: what we need
Woodward identifies hardware by an eight-digit part number in the form 8xxx-xxxx, printed on the nameplate with a revision letter and serial number. Send all three. For a 505XT, add the supply voltage version and whether the turbine has extraction or admission. For a synchronizer, give the measuring voltage and the exact SPM-D10 variant. For a TecJet, state the fuel gas, the flow size and the control signal used by the engine controller.Browse Woodward products by category: Control Valves, Controllers & Data Acquisition.
