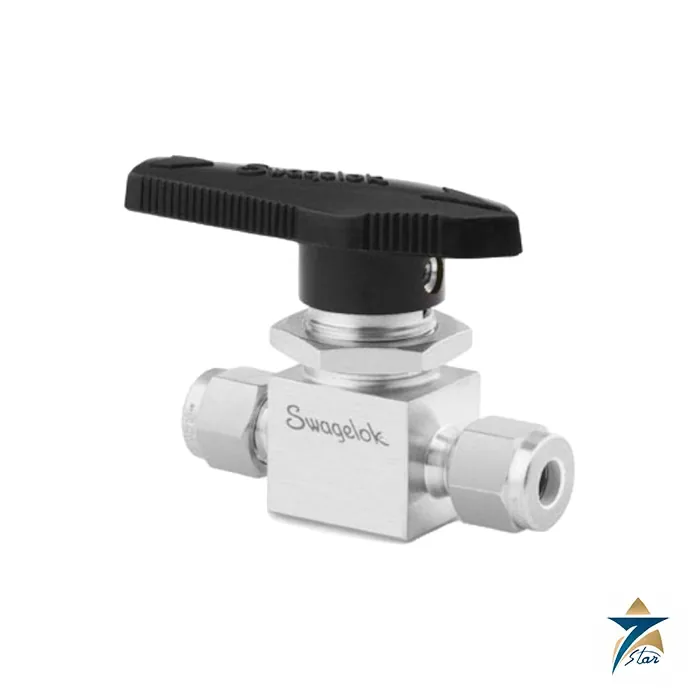

Swagelok SS-43GS4 40G Series Ball Valve
Overview
The Swagelok SS-43GS4 is a two-way, straight-pattern ball valve from the Swagelok 40G Series, built from 316 stainless steel with 1/4 in. Swagelok tube fitting ends. It has a 0.187 in. (4.75 mm) orifice and a flow coefficient of 1.4, which makes it the largest-bore 1/4 in. valve in the one-piece 40G range and a common choice where a sample or instrument line needs more flow than a 42G valve can pass. The catalog lists it as the complete ordering number SS-43GS4, and it replaces the original SS-43S4 with equivalent dimensions.
Seven Star LLC supplies the Swagelok SS-43GS4 Ball Valve and its suffix variants with availability checks at quotation and engineering support in Muscat. Industrial purchasers across Oman and the GCC can quote the part by its full ordering string, and we confirm the catalog reference, any options and the lead time before the order is placed. For the whole family, including 41G, 42G and three-way valves, see the Swagelok 40G Series page.
Working Principle
The Swagelok SS-43GS4 turns a bored ball through ninety degrees: with the bore aligned to the line the valve passes flow, and a quarter turn seats the ball against its packing to isolate the line. The one-piece ball stem keeps the stem and orifice aligned, and the directional handle with a double-flat stem shows the position of the orifice, so an operator can read the valve state from the handle alone. The seal does not depend on system pressure, so the valve closes tight at low pressure as well as high.
The packing is a single-piece encapsulated modified PTFE element held by a top-loaded, live-loaded gland with six springs on the 43G size. The springs keep load on the packing as it wears and as temperature cycles, so the Swagelok SS-43GS4 needs less frequent adjustment than a conventional design, and when adjustment is needed the packing bolt can be turned with the valve still in line using a 9 mm deep-well socket. Flow is bidirectional.
Engineering Design of the Swagelok SS-43GS4
The Swagelok SS-43GS4 body is 316 stainless steel to ASTM A276 and A479, and the ball stem is 316 stainless steel. Side rings, side discs, gland and panel nut are powdered-metal 300 series stainless steel, with S17700 springs. Wetted lubricant is silicone based, and the nonwetted surfaces carry a molybdenum disulfide coating. Overall length is 2.39 in. (60.7 mm) with the tube fitting nuts finger-tight, and the panel hole is 25/32 in. (19.8 mm) for panel mounting with a minimum panel thickness of 1/8 in. (3.2 mm).
Suffixes extend the base valve. Add -A for an angle pattern with Cv 0.90, -BL, -GR, -OG, -RD or -YW for a colored nylon handle, -SHD for a stainless steel directional handle, -NH for no handle when the valve will be mounted to an actuator, and -LH for a factory-assembled locking bracket. Production options include -PT for a customer-specified nitrogen test pressure, -SC11 for special cleaning to ASTM G93 Level C and -SG for sour gas service to NACE MR0175/ISO 15156.
Key Features
The Swagelok SS-43GS4 packs a full-flow quarter-turn valve into a compact one-piece body that fits panels and instrument racks.
- Gives the Swagelok SS-43GS4 a Cv of 1.4 in straight pattern and 0.90 in angle pattern through a 0.187 in. (4.75 mm) orifice.
- Carries a working pressure of 3000 psig (206 bar) from -65 to 150 °F, derated to 2500 psig (172 bar) at 300 °F.
- Uses live-loaded modified PTFE packing that reduces packing adjustment and improves thermal cycle performance.
- Seals without needing system pressure and allows bidirectional flow with virtually no dead space.
- Is tested at the factory with nitrogen at 1000 psig (69 bar) with a maximum seat leak rate of 0.1 std cm³/min.
- Accepts a latch-lock handle that fits padlocks with 3/16 to 5/16 in. shackles for lockout and tagout programs.
- Can be certified for Low Emissions service per API 641 on request through the manufacturer.
- Connects directly to Swagelok 1/4 in. tubing without adapters, which shortens installation time.
Industrial Applications
The Swagelok SS-43GS4 is used as an isolation, vent and sample take-off valve on 1/4 in. stainless steel tubing: analyzer sample systems, gas chromatograph supply lines, pressure transmitter and gauge isolation, hydraulic test points and compact skid manifolds. In Oman it appears on gas and oil processing units, refinery analyzer houses, power and desalination plants and pharmaceutical or laboratory installations around Muscat, Sohar and Salalah, where stainless steel resists the humid, saline coastal atmosphere.
Seven Star LLC supplies the Swagelok SS-43GS4 to panel builders, EPC contractors and plant maintenance stores across Oman and the wider GCC. Related items include Swagelok tube fittings, the Swagelok 40 Series Ball Valve and the Swagelok KPR series regulator.
Also see: Swagelok 40G Series one-piece ball valve and Swagelok 40GX Series three-way ball valve.
Technical Specifications
The table lists published Swagelok SS-43GS4 data from Swagelok catalog MS-02-331, including the neighbouring SS-42GS4 for comparison.
| Parameter | Specification |
|---|---|
| Model | Swagelok SS-43GS4 40G Series one-piece instrumentation ball valve |
| End connections | 1/4 in. Swagelok tube fitting, inlet and outlet |
| Flow pattern | Two-way on-off, straight (angle pattern with -A) |
| Flow coefficient (Cv) | 1.4 straight; 0.90 angle |
| Orifice | 0.187 in. (4.75 mm) |
| Body material | 316 stainless steel |
| Packing | Modified PTFE (UHMWPE with E in the ordering number) |
| Working pressure | 3000 psig (206 bar) at -65 to 150 °F; 2500 psig (172 bar) at 300 °F |
| Temperature range | -65 to 300 °F (-53 to 148 °C) |
| Overall length | 2.39 in. (60.7 mm), nuts finger-tight |
| SS-42GS4 for comparison | 1/4 in. tube fitting, Cv 0.60, orifice 0.125 in. (3.18 mm) |
Request a Quote for Swagelok SS-43GS4
Request a quotation for the Swagelok SS-43GS4 from Seven Star LLC. Quote the full ordering string with any suffixes, the quantity and the delivery point, and our instrumentation division will confirm the Swagelok SS-43GS4 datasheet reference, availability and lead time. Seven Star LLC supplies genuine Swagelok valves with engineering support in Muscat for customers across Oman and the GCC, including panel builders who need matched valves and tube fittings in one order.
- Catalog Swagelok One-Piece Instrumentation Ball Valves, 40G Series and 40 Series catalog MS-02-331 (covers SS-43GS4) Download
Swagelok product families listed here
The items on this page cover the small-bore components an instrument technician handles most often. Swagelok tube fittings join metric and fractional tubing without threading or welding. Swagelok ball valves are represented by the 40 series, the 40G series one-piece instrumentation ball valve (for example SS-43GS4) and the three-way pattern listed as 40GX. The SS-1RS4 is an integral bonnet needle valve from the 1 series. VCR metal gasket face seal fittings serve high-purity and vacuum lines, QC series quick-connects are used where lines are coupled and uncoupled often, and the KPR series is a pressure-reducing regulator.Where Swagelok components are used
Typical duties are transmitter hook-ups, manifolds and impulse tubing, analyzer shelters and sample conditioning panels, chemical injection skids, gas cylinder panels in laboratories, and test benches. In oil and gas service across the GCC, the usual questions are material grade, pressure rating at temperature and, for sour service, whether the manufacturer offers the item to NACE MR0175 requirements.Ordering Swagelok fittings and valves: what we need
A Swagelok ordering number carries most of the specification. In SS-43GS4, SS is 316 stainless steel, 43G identifies the valve series and size, and S4 is a 1/4 in. Swagelok tube fitting end connection. Send the complete ordering number including any suffix for handle, seat or cleaning option. If you do not have it, give us the tube outside diameter and wall thickness, body material, end connections on each port, working pressure and temperature, and the fluid. For a KPR regulator we also need inlet pressure, the outlet control range and the port configuration.Browse Swagelok products by category: Pipes & Fittings, Regulators, Fittings & Valves.
