Brand: Swagelok

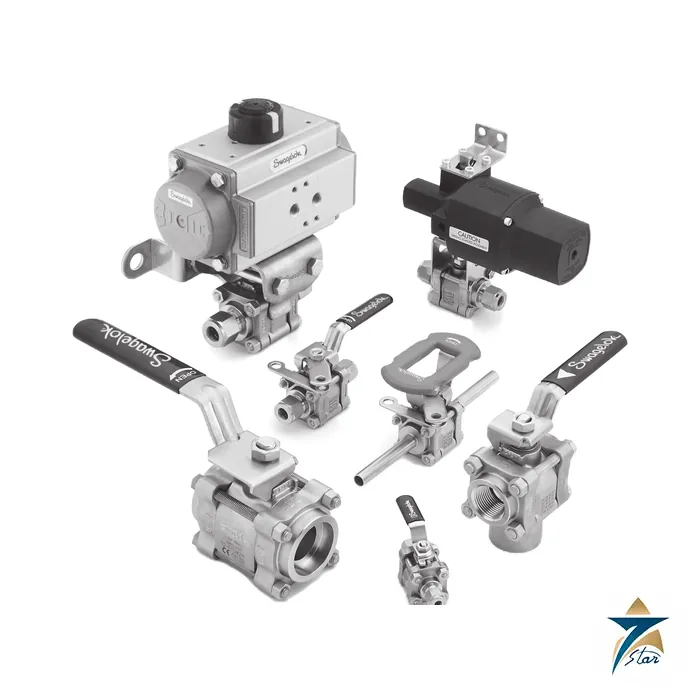

Swagelok 60 Series General Purpose Ball Valve
Description
Quarter-turn process ball valves from 1/8 to 2 in.
The Swagelok 60 Series is a family of general purpose and special application ball valves in stainless steel, carbon steel, brass and special alloys. It covers on-off (2-way) and switching (3-way) patterns with end connections from 1/8 to 2 in. and 6 to 25 mm, including Swagelok tube fittings, female pipe thread, socket weld, butt weld, VCO and VCR face seal and sanitary ends.
The valve uses coned-disc spring-loaded seats. At low pressure the springs push the seats against the ball, so no line pressure is needed to seal; at high pressure the ball moves downstream and flexes the seat to form the seal. Live-loaded two-piece chevron stem packing, a bottom-loaded stem that prevents blowout and a grounding spring for antistatic continuity are standard features.
Technical specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Swagelok Company |
| Product | 60 Series ball valves (body series 62, 63, 65, 67, 68) |
| Sizes | 1/8 to 2 in.; 6 to 25 mm |
| Flow patterns | On-off (2-way); switching (3-way, 180° actuation) |
| Orifice / Cv (tube fitting ends) | 0.188 in., Cv 1.2 (SS-62TS4) up to 1.500 in., Cv 130 (SS-68TS32) |
| Seat options | Reinforced PTFE (60T), virgin PTFE (60V), PEEK (60P), UHMWPE (60E), alloy X-750 (60M) |
| Rating, 60T stainless 2-way | 2200 psig (151 bar) for 62 to 65 series, 1500 psig (103 bar) for 67/68, at -20 to 100 °F |
| Rating, 60P stainless 2-way | 3000 psig (206 bar) for 62 series at -20 to 100 °F |
| Temperature | Up to 450 °F (232 °C) depending on seat, with derated pressure |
| Testing | Seat and shell tested with nitrogen at 1000 psig (69 bar) or maximum working pressure; plastic seats max. leak 0.1 std cm³/min |
| Low emissions | API 641 certificates available for listed series |
| Special versions | Steam, thermal, fire-tested (A60T, API 607), chlorine (C60V), all-welded, low temperature, rapid-cycle |
Selecting body series, seats and ends
Size sets the body series: 62 for small tube sizes, 63 for 1/2 and 3/4 in., 65 for 1 in., 67 and 68 for 1 1/2 and 2 in. The seat sets the pressure-temperature envelope, so check the rating table in the catalog at the actual operating temperature, not only at ambient. PEEK suits higher pressures, alloy X-750 metal seats suit higher temperatures at lower pressure, and UHMWPE is limited to 250 °F. Ordering numbers follow the pattern material, series, seat, end connection and size, for example SS-63TS8 for a 1/2 in. stainless valve with reinforced PTFE seats and tube fitting ends. For smaller instrument lines the Swagelok 40G Series ball valve is the compact alternative.
Three-way switching valves can divert flow from a common inlet to one of two outlets, or block one inlet and bleed the opposite port. Steel valves with Swagelok tube fitting ends are limited to 375 °F (190 °C). When tube fittings larger than 1 in. are installed, Swagelok specifies its MHSU hydraulic swaging unit so that the ferrules are swaged without stressing the body threads. Seal kits with seats, springs, packing and instructions are available for maintenance.
Documents and quotation
The attached Swagelok catalog MS-01-146 includes materials, all rating tables, dimensions per end connection, special application valves, handle options, seal kits and actuators. Send the full ordering number, or the size, end connection, material, seat and service conditions, for a quotation. Related items are listed under Pipes and Fittings.
Datasheets & Documents
- Catalog Swagelok Ball Valves, General Purpose and Special Application, 60 Series catalog (MS-01-146, rev AH) Download
Reviews (0)
About brand
Two-ferrule tube fittings made Swagelok a familiar name on instrument air headers, impulse lines and analyzer sample systems. The company has made fluid system components since 1947 and is based in Solon, USA. Seven Star LLC sources and supplies Swagelok tube fittings, ball valves, needle valves, quick-connects, face seal fittings and pressure regulators for plants in Oman, checking every ordering number against the manufacturer's catalog before an offer is made.
Swagelok product families listed here
The items on this page cover the small-bore components an instrument technician handles most often. Swagelok tube fittings join metric and fractional tubing without threading or welding. Swagelok ball valves are represented by the 40 series, the 40G series one-piece instrumentation ball valve (for example SS-43GS4) and the three-way pattern listed as 40GX. The SS-1RS4 is an integral bonnet needle valve from the 1 series. VCR metal gasket face seal fittings serve high-purity and vacuum lines, QC series quick-connects are used where lines are coupled and uncoupled often, and the KPR series is a pressure-reducing regulator.
Where Swagelok components are used
Typical duties are transmitter hook-ups, manifolds and impulse tubing, analyzer shelters and sample conditioning panels, chemical injection skids, gas cylinder panels in laboratories, and test benches. In oil and gas service across the GCC, the usual questions are material grade, pressure rating at temperature and, for sour service, whether the manufacturer offers the item to NACE MR0175 requirements.
Ordering Swagelok fittings and valves: what we need
A Swagelok ordering number carries most of the specification. In SS-43GS4, SS is 316 stainless steel, 43G identifies the valve series and size, and S4 is a 1/4 in. Swagelok tube fitting end connection. Send the complete ordering number including any suffix for handle, seat or cleaning option. If you do not have it, give us the tube outside diameter and wall thickness, body material, end connections on each port, working pressure and temperature, and the fluid. For a KPR regulator we also need inlet pressure, the outlet control range and the port configuration.
Browse Swagelok products by category: Pipes & Fittings, Regulators, Fittings & Valves.
Related products
Frequently Asked Questions
Which sizes does the Swagelok 60 Series cover?
The catalog lists 1/8 to 2 in. and 6 to 25 mm end connections, across body series 62, 63, 65, 67 and 68.
What seat materials are available?
Reinforced PTFE (60T), virgin PTFE (60V), PEEK (60P), UHMWPE (60E) and alloy X-750 metal seats (60M).
What is the maximum pressure rating?
With PEEK or UHMWPE seats the 62 series stainless steel 2-way valve is rated 3000 psig (206 bar) at -20 to 100 °F; ratings fall with size and temperature.
Is the 60 Series certified for low emissions?
Certificates to API 641 are available for listed variants including 60T, 60M, 60P, 60E and A60T.
Can the valves be automated?
Yes. Swagelok offers pneumatic actuators, ISO 5211-compliant actuators and electric actuators for the 60 Series.
