Brand: Swagelok

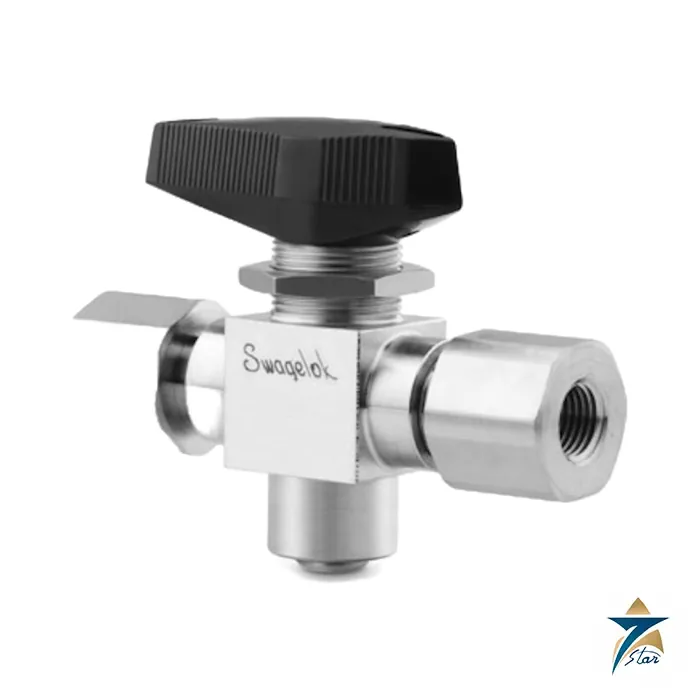

Swagelok SS-H83PF4 High-Pressure Ball Valve, 1/4 in. FNPT, PEEK
Description
The Swagelok SS-H83PF4 takes the 83 series trunnion ball valve to 10 000 psig (689 bar). It uses PEEK seats instead of the PCTFE of the standard 83 series, which also raises the seat temperature rating to 450 F, and has 1/4 in. female NPT ports. It is aimed at high-pressure gas, hydraulic-test, injection and sampling lines where the 6000 psig valve is not enough.
Technical specifications
| Parameter | Specification |
|---|---|
| Part number | SS-H83PF4 |
| Description | 3-piece high-pressure ball valve, 2-way, PEEK seats |
| Series | H83 |
| Body material | 316 stainless steel |
| Connections | 1/4 in. female NPT x 1/4 in. female NPT |
| Flow coefficient Cv | 1.0 |
| Orifice | 0.187 in. (4.7 mm) |
| Seat material | PEEK |
| Working pressure at 100 F (37 C) | 10 000 psig (689 bar), as listed on the data page |
| Seat temperature rating | 0 to 450 F (-17 to 232 C) for PEEK |
| Service class | High pressure service |
| Dimensions A x B | 3.93 in. (99.8 mm) x 1.97 in. (50.0 mm) |
| Handle | Black phenolic handle |
| Testing | To Swagelok WS-22, as listed on the data page |
What changes in the H83 series
The H83 shares its features with the 83 series: a trunnion-style ball, a bottom-loaded stem, spring-loaded seats and low operating torque. The differences are the seat material and the pressure class. The catalog lists H83 working pressures of 6000 to 10 000 psig depending on the end connection, with PEEK seats at 0 to 450 F, and the data page gives 10 000 psig (689 bar) at 100 F for this 1/4 in. female NPT valve.
The body is larger than the 83 series equivalent: A is 3.93 in. (99.8 mm) and B is 1.97 in. (50.0 mm) in the catalog table, against 2.94 in. and 1.47 in. for SS-83KF4. Allow the extra length in tight panels.
Pressure, fluids and operation
The catalog gives Cv 1.0 for the 1/4 in. 2-way valve with a 0.187 in. orifice. As with all Swagelok ball valves, the valve is designed for fully open or fully closed use, and a valve that has not been cycled for some time may need higher initial actuation torque. PEEK resists many process fluids, but check chemical compatibility for aggressive media. Hydrogen, high-pressure gas and test-rig service are typical reasons to use a 10 000 psig class valve; verify ratings at the actual operating temperature using the catalog.
The valve is tested to Swagelok WS-22 per the data page. The catalog technical-data table gives H83 ratings for 316 stainless steel only, with no alloy 400 rating.
Ordering
SS-H83PF4 reads stainless steel, H83 series, PEEK seats (P), female NPT (F), 1/4 in. (4). The catalog lists SS-H83PF2 for 1/8 in. ends and SS-H83PS4 for tube-fitting ends. High-pressure NPT ends are rated to the pipe thread table of the catalog family, and in a 10 000 psig system all connected components must be rated to the same pressure. Specify the exact code and any handle or panel options.
Install and test the system in accordance with your own pressure-system procedures, and confirm that tubing and fittings used with the valve are rated for the same pressure.
Documents and quotation
Source document: Swagelok trunnion ball valves 83 and H83 series catalog MS-01-166 (EN), attached for download. It carries the tables this summary draws on. To get a quote for SS-H83PF4, reply with the quantity and any options, and we will check the code against the document first. Seven Star LLC is an independent supplier in Muscat.
Related items: product category.
Datasheets & Documents
- Catalog Swagelok trunnion ball valves 83 and H83 series catalog MS-01-166 (EN) Download
Reviews (0)
About brand
Swagelok is the American maker of tube fittings and small-bore valves, best known for its two-ferrule compression tube fitting. Fred A. Lennon and Cullen B. Crawford founded it in Cleveland, Ohio, in July 1947 as Crawford Fitting Company to make that fitting. Lennon bought the whole business and the patent in 1948, and the company has been based in Solon, Ohio, since the mid-1960s.
Seven Star LLC is an independent supplier in Muscat. We list Swagelok tube fittings, needle, ball, check, relief and metering valves, filters, regulators and sample cylinders, and supply them for instrument tubing and analyser systems in Oman and the GCC by exact part number.
Swagelok company profile
| Established | July 1947, Cleveland, Ohio, as Crawford Fitting Company |
|---|---|
| Founders | Fred A. Lennon and Cullen B. Crawford; Lennon bought out Crawford in 1948 |
| Headquarters | Solon, Ohio, since the mid-1960s |
| Product families | Tube fittings and adapters, face seal fittings, needle, ball, plug, check, relief and diaphragm valves, filters, regulators, quick-connects, sample cylinders and hoses |
Milestones
- 1947: Fred A. Lennon and Cullen B. Crawford found Crawford Fitting Company in Cleveland in July.
- 1948: Lennon buys out Crawford.
- Mid-1960s: Headquarters move to Solon, Ohio.
Swagelok products we list
| Family | Models | Typical use |
|---|---|---|
| Tube fittings | Overview, SS-810-6 union, SS-810-3 tee, SS-810-9 elbow, SS-810-4 cross, SS-810-1-8 male connector, SS-810-7-8 female connector, SS-810-61 bulkhead, SS-12M0-6 metric union, VCR face seal | Leak-tight connections on instrument and process tubing |
| Needle and metering valves | SS-1RS4, SS-1RF4, SS-18RF6, SS-6NBS6, SS-20VS4, SS-4MG | Isolation and fine flow adjustment on instrument lines and sample systems |
| Ball and plug valves | 40G, 40GX 3-way, 60 Series, 83 Series, P4T plug | Quick quarter-turn shut-off and switching |
| Check, relief and sealed valves | SS-4C-1, CH, R3A, RL3, SS-4BK bellows, SS-DLS4 diaphragm | Backflow prevention, overpressure relief and leak-free sealing for toxic or high-purity media |
| Filters, regulators, sampling | SS-4F-2, SS-4TF-7, KPR regulator, sample cylinders, QC quick-connects | Analyser sample conditioning and gas or liquid sampling |
A Swagelok part number can be read directly. In SS-810-6, "SS" is 316 stainless steel, "810" means a 1/2 in. tube fitting (8 sixteenths of an inch, 10 series), and "-6" is a union. A suffix such as "-8" adds a 1/2 in. NPT end, and "M0" marks metric tube, as in SS-12M0-6 for 12 mm. Tube fittings must be made up the same way every time: finger-tight, then 1 1/4 turns for most sizes. A gap inspection gauge confirms the fitting has been pulled up.
Where Swagelok products are used
In Oman and the GCC, Swagelok fittings and valves are used on instrument impulse lines, analyser sample systems, hydraulic and pneumatic control tubing, chemical injection and gas sampling in oil and gas, refining, petrochemical, power and laboratory installations.
Ordering Swagelok products: what we need
Send the full Swagelok part number (for example SS-810-6 or SS-1RS4), the material, and the tube size in inches or millimetres. For valves, add the end connections and any options. For sample cylinders, add the volume, pressure rating and end configuration.
Facts checked against Swagelok company history, October 2026.
Browse Swagelok products by category: Pipes & Fittings, Regulators, Fittings & Valves.
Related products
Frequently Asked Questions
What is the pressure rating of SS-H83PF4?
10 000 psig (689 bar) at 100 F (37 C) according to the Swagelok data page.
Why choose H83 over 83?
The H83 series has PEEK seats, higher pressure capability and a 450 F seat temperature rating, in a longer body.
What are the ports?
1/4 in. female NPT on both sides.
What are the dimensions?
Catalog A is 3.93 in. (99.8 mm) and B is 1.97 in. (50.0 mm).
Can it throttle flow?
No. Swagelok ball valves are for fully open or fully closed operation only.
