Neles Series D Trunnion Mounted Ball Valve

Overview

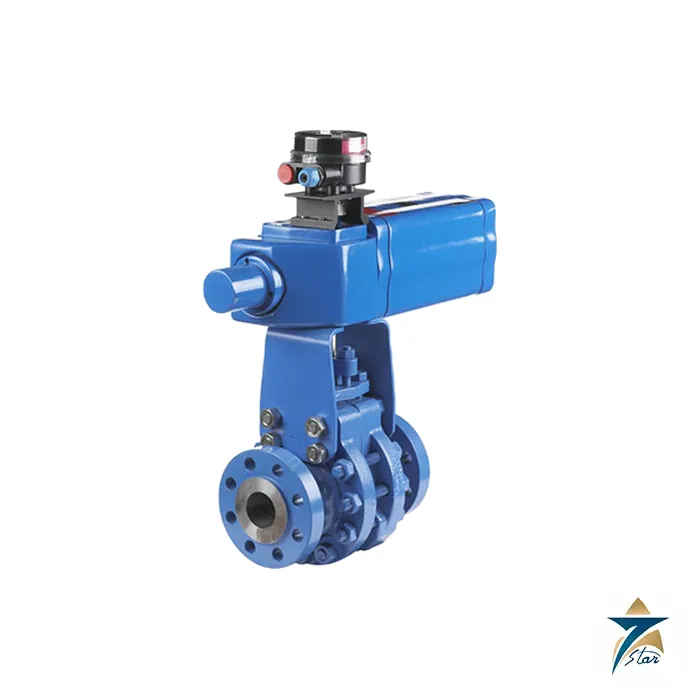

Neles Series D is a trunnion mounted ball valve designed for demanding on/off and control applications in oil and gas, refining, petrochemical and chemical plants. The design draws on several decades of metal-to-metal seat technology, application-based seat selection and a robust overall construction, which makes the valve a practical choice where soft seats cannot survive heat, solids or cycling. In control duty the same body can be fitted with rotary valve noise attenuation trims, including self-flushing Q-trim and the Q2-trim for gas applications.

Seven Star LLC supplies Neles Series D valves and actuated packages to Oman and the GCC, backed by engineering support in Muscat. Operators who already run the Neles Series X2 modular ball valve will find that the Neles Series D fills the heavier trunnion-mounted niche in the same product family, with larger sizes and higher pressure classes.

Trunnion Ball Working Principle

In a trunnion mounted valve the ball is held in position by upper and lower trunnion bearings rather than floating on the seats. The line pressure therefore pushes the seat against the ball, and the operating torque stays low even at high differential pressure. Large, low-friction bearings give a long cycle life, and the valve keeps good controllability because torque does not rise sharply as pressure increases. In the Neles Series D, spring-loaded metal seats keep continuous contact with the ball so that tightness is maintained during thermal movement and at low pressure.

The ball and stem are manufactured as one piece in the patented Stemball construction, which removes the backlash and dead band that a keyed stem would introduce. That matters when the valve is used to throttle, because there is no hysteresis between positioner output and ball position even at high differential pressure. A double seated design is tight in both directions and supports double block and bleed. In control service the full ball and two throttling stages reduce cavitation and noise, and the inherent characteristic is equal percentage with high rangeability.

Engineering Design of the Neles Series D

The body of the Neles Series D is available in stainless steel ASTM A351 CF8M or carbon steel ASTM A216 WCB, with a hard-chrome coated CF8M ball, AISI 316 trunnion bearings with cobalt-based alloy bushings for high temperature construction, and Inconel-grade seat springs. Seat options span metal seats and PTFE-based soft seats, and a graphite packing and sealing arrangement supports fire-safe duty. Fire safety to API 607 is available on selected seat designs, NACE MR-01-03 or MR-01-75 constructions can be supplied, and EN 10204-3.1 material certificates are available for body, ball and bonnet.

Sizes run from NPS 2 to NPS 36 (DN 50 to DN 900) in ASME Class 150, 300 and 600, in full bore and reduced bore versions. Tightness is ANSI/FCI 70-2 Class V for metal seats and Class VI for soft seats and selected metal seats, and the valve is ISO 15848-1 type approved for low fugitive emissions. For safety service the datasheet describes a complete ESD package from one supplier: the valve, a Neles B1 series actuator and the VG9000 intelligent safety solenoid with automated partial stroke test, with every component certified for use up to SIL 3.

Key Features

The Neles Series D combines safety, control and durability features in one valve platform:

• Certified for safety systems up to and including SIL 3 when supplied as a full ESD package with a Neles actuator and VG9000 safety solenoid.
• Metal-to-metal spring-loaded seats stay in contact with the ball and provide durable tightness with a choice of hard facings for different fluids.
• One-piece Stemball construction removes dead band and hysteresis, so throttling stays accurate under high differential pressure.
• Double seated, two-way tight design with a double block and bleed seat arrangement simplifies isolation and testing.
• Low friction and low operating torque from trunnion bearings allow compact actuators and fast stroking.
• Q-trim and Q2-trim options bring noise attenuation and anti-cavitation performance for blow down, anti-surge and gas let-down service.
• Handles solids and fibrous fluids, molecular sieve duty and steam control because the ball opening is self-cleaning.
• Oxygen, cryogenic and high temperature constructions broaden the range from LNG and industrial gases to hot hydrocarbon lines.

Industrial Applications

The manufacturer lists ESD and ESV service, HIPPS, depressurising and blow down, low-noise and anti-cavitation control, cryogenic and high temperature service, high-cycle switching, oxygen service, molecular sieves, solids handling, steam control and natural gas, LNG and LPG. In Oman these map onto wellhead and gathering station shutdown valves, gas processing trains, refinery process units in Sohar and Duqm, LNG-related facilities near Qalhat and power-plant steam and fuel gas systems.

Seven Star LLC helps project teams specify the Neles Series D by matching pressure class, seat code, trim and actuator to the duty and by confirming safety-integrity documentation for ESD installations. For control duty we can propose pairing the valve with a digital positioner such as the Metso Neles ND9000 intelligent valve controller, and for engineers comparing rotary alternatives the Fisher V300 Vee-Ball segmented ball control valve offers a useful reference. Ask us for the Neles Series D datasheet if you want to review seat codes and materials before a formal enquiry.

Technical Specifications

The table summarises main parameters of the Neles Series D from the manufacturer catalogue. Pressure-temperature ratings depend on body material and seat code, so confirm them for your project.

Request a Quote for Neles Series D

To request a quotation for the Neles Series D, send Seven Star LLC your valve size, pressure class, body material, seat requirement, fluid data and any SIL or fire-safe requirement. We supply Neles Series D valves on request with engineering support in Muscat, and we can provide the manufacturer datasheet with seat and material details for engineering and procurement teams across Oman and the GCC.
