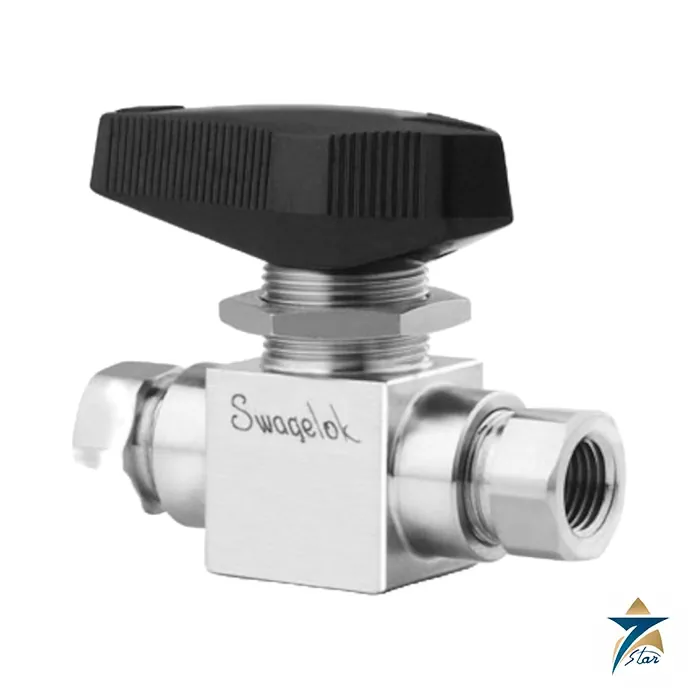

Swagelok SS-83KF4 Trunnion Ball Valve, 1/4 in. FNPT, PCTFE Seats

Name: Swagelok SS-83KF4 Trunnion Ball Valve 1/4 in. | Seven Star
Brand: Swagelok
SKU: SS-83KF4

Description

The Swagelok SS-83KF4 is a compact quarter-turn ball valve for high-pressure instrument and sample lines. It belongs to the 83 series, a trunnion-mounted ball design with spring-loaded seats and a rating of 6000 psig (413 bar) at ambient temperature, and has 1/4 in. female NPT ports in a straight 2-way pattern. PCTFE seats give tight shutoff for gases and liquids within the seat temperature range.

Technical specifications

Parameter	Specification
Part number	SS-83KF4
Description	3-piece high-pressure ball valve, 2-way, PCTFE seats
Series	83
Body material	316 stainless steel
Connections	1/4 in. female NPT x 1/4 in. female NPT
Flow coefficient Cv	1.0
Orifice	0.187 in. (4.75 mm)
Seat material	PCTFE
Working pressure at 100 F (37 C)	6000 psig (413 bar)
Seat temperature rating	0 to 250 F (-17 to 121 C) for PCTFE
Handle	Black phenolic handle
Dimensions A x B	2.94 in. (74.7 mm) x 1.47 in. (37.3 mm)
Testing	To Swagelok WS-22, as listed on the data page
Low emissions	Certified, as listed on the Swagelok data page

Trunnion design for small, high-pressure valves

In a conventional floating-ball valve the line pressure pushes the ball against the downstream seat, which raises operating torque as pressure rises. In a trunnion-style valve the ball is held by the stem and a lower trunnion, so seat loading comes from springs rather than line pressure. The catalog says the trunnion ball prevents ball blowout and contributes to low operating torque, while the bottom-loaded stem prevents stem blowout, and spring-loaded seats keep the seal leak-tight at both low and high pressure and reduce seat wear from surges.

The catalog states that Swagelok ball valves are for fully open or fully closed use only. Do not throttle with them.

Ratings and flow

The 83 series is rated at 6000 psig (413 bar) at 100 F for 316 stainless steel, and the seat material sets the temperature: PCTFE or reinforced nylon covers 0 to 250 F, while PEEK seats extend to 450 F. For 2-way valves the flow coefficient ranges from 1.0 to 1.6 depending on end connection; the 1/4 in. female NPT version has a Cv of 1.0 and a 0.187 in. orifice. Dimensions in the catalog table are 2.94 in. (74.7 mm) by 1.47 in. (37.3 mm). Panel mounting is possible, with a panel hole of 29/32 in. (23.0 mm) and a maximum panel thickness of 0.38 in. (9.7 mm).

Seat material is selected by the final letter before the end code: K is PCTFE, T is PTFE, N is reinforced nylon and P is PEEK. So SS-83KF4 becomes SS-83TF4 with PTFE seats.

Ordering and selecting

SS-83KF4 decodes as stainless steel, 83 series, PCTFE seats (K), female NPT (F) and 1/4 in. (4). The same body is offered with 1/8 in. NPT, 3/8 in. and 1/2 in. ends and in Swagelok tube-fitting versions such as SS-83KS4. Alloy 400 bodies use M in place of SS. If your pressure exceeds 6000 psig, the H83 series with PEEK seats is the next step, such as SS-H83PF4, rated up to 10 000 psig depending on end connection.

Confirm service conditions, fluid compatibility with PCTFE and the temperature before ordering, and fit actuators from the Swagelok list only if torque and mounting are checked with the ISO 5211 guidance in the catalog family.

Documents and quotation

For the full data, download the Swagelok trunnion ball valves 83 and H83 series catalog MS-01-166 (EN) attached here. Quotation requests for SS-83KF4 are matched to the exact order code, so include the quantity and any option designator. We are an independent supplier based in Muscat.
