Brand: SICK

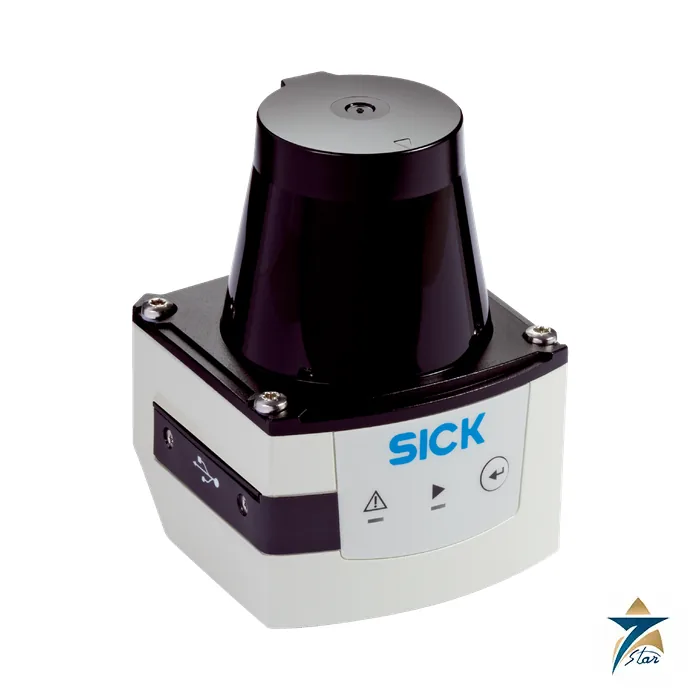

SICK TiM571-2050101 TiM 2D Lidar Sensor
Description
TiM571-2050101 is a SICK TiM 2D LiDAR sensor (part no. 1075091) that measures distances to surrounding objects along a rotating scan line. The catalogue summary lists: integrated application: Output of measurement data; measurement principle: HDDM; working range: 0.05 m … 25 m; enclosure rating: IP67; digital outputs: 1 (PNP, “SYNC”/”device ready”).
TiM571-2050101: function, principle and typical use
Range depends on the target’s reflectivity. The data sheet quotes the working range for defined remission levels, so a dark or wet surface can be seen at a shorter distance than a bright one.
These sensors are not safety devices unless the data sheet says so; they are used for navigation, volume and position measurement, anti-collision on cranes and vehicles, and for counting or classifying objects on conveyors. Echo evaluation and filtering are done in the sensor, so the data stream can contain filtered distances and optionally remission values for each beam.
Technical specifications
| Parameter | Specification |
|---|---|
| Type code | TiM571-2050101 |
| Part number | 1075091 |
| Product family | TiM |
| Application | Outdoor, Indoor |
| Measurement principle | HDDM |
| Light source | Infrared (850 nm) |
| Laser class | 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021) |
| Aperture angle: Horizontal | 270° |
| Scanning frequency | 15 Hz |
| Angular resolution: Horizontal | 0.33° |
| Working range | 0.05 m … 25 m |
| Scanning range: At 10% remission factor | 8 m |
| MTTFD | 100 years |
| Connection type | 1 x “Ethernet” connection, 4-pin M12 female connector; 1 x connection “Power/Synchronization output” 5-pin, M12 male connector; 1 x Micro USB female connector, type B |
| Supply voltage | 9 V DC … 28 V DC |
| Power consumption | Typ. 4 W |
| Output current | ≤ 100 mA |
| Enclosure rating | IP67, applies only when the plastic cover of the “Aux interface” is closed (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| Weight | 250 g, without connecting cables |
| Dimensions (L x W x H) | 60 mm x 60 mm x 86 mm |
| MTBF | > 100 years |
| Response time | 1 scan, typ. 67 ms; 2 scans, ≤ 134 ms |
| Detectable object shape | Almost any |
| Systematic error | ± 60 mm |
| Integrated application | Output of measurement data |
| Ethernet | ✔ , TCP/IP |
| USB | Yes |
| Function | Service interface, parameterization |
| Digital inputs/outputs: Inputs | 0 |
| Digital inputs/outputs: Outputs | 1 (PNP, “SYNC”/”device ready”) |
| Declarations and certificates in the data sheet | EU declaration of conformity; UK declaration of conformity; ACMA declaration of conformity; China RoHS; KC Mark certificate; cTUVus certificate; Information according to Art. 3 of Data Act (Regulation EU 2023/2854) |
Type code TiM571-2050101 and what to check before ordering
Derived from the listed angles: a 270 degree sector at 0.33 degree angular resolution corresponds to roughly 819 measuring points per scan. This is a derived value for orientation.
Electrically and for the interface, the listed values are response time is 1 scan, typ. 67 ms; 2 scans, ≤ 134 ms; current is ≤ 100 mA; resolution is 0.33°; supply is 9 V DC … 28 V DC; range is 8 m; frequency is 15 Hz; power draw is typ. 4 W.
Mechanical and environmental data for this type: storage temperature of –40 °C … +75 °C; vibration of 10 Hz … 1,000 Hz; dimensions of 60 mm x 60 mm x 86 mm; operating temperature of –25 °C … +50 °C; light source of infrared (850 nm); weight of 250 g, without connecting cables.
Outdoor use needs a sensor variant whose enclosure rating and temperature range cover it.
Check the data interface and the telegram format in the published documentation before committing to the PLC program.
Documents and quotation
The official SICK data sheet for TiM571-2050101 (part no. 1075091) is attached as a PDF. Send the type code, quantity and delivery location through the RFQ form and Seven Star LLC, an independent supplier in Muscat, will respond with a quotation. Similar products sit under Sensors & Transmitters. Confirm the full code against the device it replaces; if this page and the data sheet ever disagree, follow the data sheet.
Datasheets & Documents
- Data Sheet SICK TiM571-2050101 official data sheet (part no. 1075091) Download
Reviews (0)
About brand
SICK is the German maker of industrial sensors: photoelectric and proximity sensors, safety laser scanners and light curtains, encoders, distance sensors, code readers and gas analysers. Erwin Sick, an optics engineer, founded it in Munich in 1946, and in 1952 it introduced its first marketable accident-prevention light curtain, which protected press operators by stopping the machine when a hand broke the light beam. The company moved to Waldkirch in the Black Forest in 1956 and is still headquartered there. It is a privately held company, and has been an Aktiengesellschaft (AG) since 1996.
SICK company profile
| Founded | 1946, Munich, Germany, by Erwin Sick (1909–1988) |
|---|---|
| Headquarters | Waldkirch, Baden-Württemberg, Germany (since 1956) |
| Ownership | Privately held; after the founder's death in 1988 his widow Gisela Sick became the main shareholder. Legal form SICK AG since 1996 |
| Size | More than 12,000 employees and group revenue of about EUR 2.3 billion (company figures for 2023) |
| First breakthrough | Accident-prevention light curtain for presses, shown in Hanover in 1952 |
| International growth | First foreign subsidiary in France in 1972, United States in 1976; today sales and service companies worldwide |
| Product families | Photoelectric, inductive, capacitive, magnetic and ultrasonic sensors; safety laser scanners, light curtains, safety controllers and relays; encoders and motor feedback systems; distance sensors and LiDAR; barcode and 2D code readers and machine vision; gas analysers, dust and flow measurement for process and emissions monitoring |
Milestones
- 1946: Erwin Sick receives a licence to run his engineering firm in Munich.
- 1952: The first marketable accident-prevention light curtain is presented in Hanover and goes into series production.
- 1956: The company moves to Waldkirch with 25 employees.
- 1972 and 1976: Subsidiaries are founded in France and the United States.
- 1996: SICK becomes an Aktiengesellschaft.
- Today: Sensors for factory and logistics automation, machine safety and process analysis, with a large share of revenue outside Germany.
Choosing a SICK sensor
For object detection, the sensing principle comes first. A retro-reflective sensor (WL series) sends light to a reflector and switches when an object breaks the beam; it is reliable over long distances and easy to align. A sensor with background suppression (WTB series) detects an object at a set distance and ignores what is behind it, which suits conveyors with shiny or dark backgrounds. A through-beam pair (WS/WE) gives the longest range and the highest reliability in dust. For transparent bottles and film, use a model built for transparent objects (for example WL12G-3B or WL150-P420). The digits in the code also matter: "P" usually means a PNP output and "N" NPN, and the last digits set the connector or cable. For machine guarding, a safety laser scanner such as nanoScan3 or microScan3 protects an area, while a safety controller such as Flexi Soft combines several safety devices.
Where SICK products are used
In Oman and the GCC, SICK sensors are used in packaging and bottling lines, food and beverage plants, logistics and airport baggage handling, cement and steel plants, ports and cranes, automated warehouses, and on machines built by European OEMs. SICK safety scanners guard robots and automated guided vehicles, and its encoders give position feedback on motors, hoists and conveyors.
SICK products we list
| Family | Examples |
|---|---|
| Photoelectric sensors | WL12-3P2431, WTB12-3P2431, GTB6-P4211, VL18-4P3240, WL12G-3B2531, WS/WE100, KT5W contrast, W26 IO-Link |
| Proximity, cylinder and ultrasonic sensors | IME12-08NPSZC0S, IME18-05BPSZC0S, MZT8, UM18 4-20 mA, UM30, UFN3 fork |
| Machine safety | nanoScan3, microScan3, S300 Professional, Flexi Soft FX3-CPU1, FX3-XTIO, ReLy OSSD |
| Encoders and motor feedback | DFS60B, AFM60 PROFINET, AFS60 SSI, ATM60 PROFIBUS, SRS50, EFS50 |
| Distance sensors and code readers | DT50, DL50, DT35, Lector632 |
Ordering SICK products: what we need
Send the type code and the 7-digit SICK part number from the label (for example WTB12-3P2431 together with its part number). For a replacement sensor, add the output (PNP or NPN), connection (M8, M12 or cable) and sensing distance. For encoders, add the interface (incremental, SSI, PROFIBUS, PROFINET), resolution and shaft type. For safety scanners, tell us the model and whether the existing configuration needs to be kept.
Facts checked against SICK's published company history and annual figures, October 2026.
Browse SICK products by category: Sensors & Transmitters.
Related products
Frequently Asked Questions
What is the SICK TiM571-2050101?
It is a SICK 2D LiDAR sensor (TiM), part no. 1075091. The catalogue summary reads: Integrated application: Output of measurement data; Measurement principle: HDDM; Working range: 0.05 m ... 25 m; Enclosure rating: IP67.
What supply does the TiM571-2050101 need?
Supply voltage is 9 V DC ... 28 V DC. Check the output and interface rows in the table for the signal levels.
What protection rating and temperature range are given?
Enclosure rating: IP67, applies only when the plastic cover of the “Aux interface” is closed (IEC 60529:1989+AMD1:1999+AMD2:2013). Ambient operating temperature: –25 °C ... +50 °C. Confirm both against the site before ordering.
Does the page include the data sheet?
Yes. The official SICK data sheet for part no. 1075091 is attached as a PDF and linked on this page; where it differs from the page text, the data sheet applies.
What should be confirmed before ordering the TiM571-2050101?
Compare the full type code and part number 1075091 with the device being replaced, check supply, output or interface and mounting, and send the details through the RFQ form. Seven Star LLC is an independent supplier, not a SICK partner.
