SICK LMS511-10100 PRO LMS5xx 2D Lidar Sensor
Description

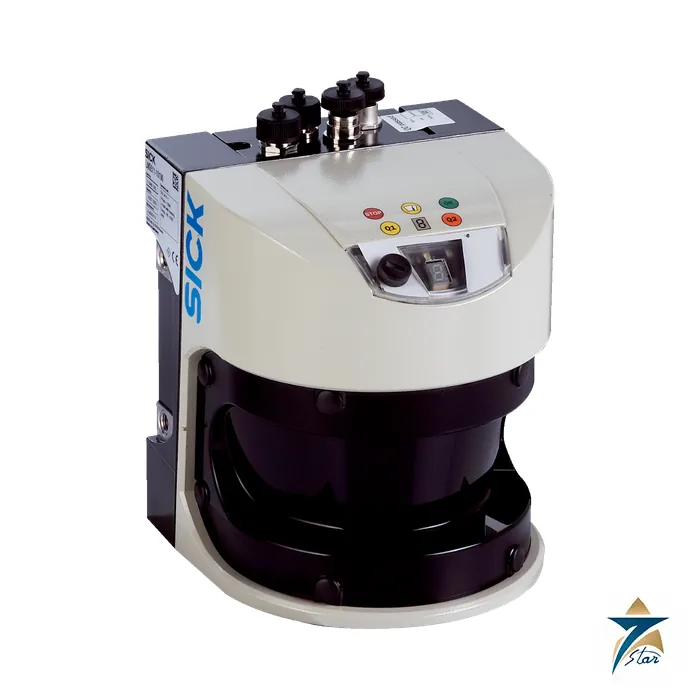

LMS511-10100 PRO, part no. 1046135, belongs to the SICK LMS5xx range of laser measurement sensors for contour detection, object tracking and navigation. The catalogue summary lists: working range: 0.2 m … 80 m; resolution power: Standard Resolution; enclosure rating: IP65, IP67; color: Gray (RAL 7032); integrated application: Field evaluation, output of measurement data.
Understanding the LMS511-10100 PRO before you specify it
Angular resolution and scanning frequency set how many points land on a small object at a given distance. These sensors are not safety devices unless the data sheet says so; they are used for navigation, volume and position measurement, anti-collision on cranes and vehicles, and for counting or classifying objects on conveyors.
Fog filters and particle filters help in dusty and humid environments, at the price of slightly reduced sensitivity to small objects. Because the sensor looks along one line, mounting height and tilt define what it sees: a few degrees of tilt can place the scan line above or below a pallet.
Technical specifications
| Parameter | Specification |
|---|---|
| Type code | LMS511-10100 PRO |
| Part number | 1046135 |
| Product family | LMS5xx |
| Application | Outdoor, Indoor |
| Variant | PRO |
| Resolution power | Standard Resolution |
| Light source | Infrared (905 nm, ± 10 nm) |
| Laser class | 1 (EN/IEC 60825-1:2014, EN 60825-1:2014+A11:2021) |
| Aperture angle: Horizontal | 190° |
| Scanning frequency | 25 Hz; 35 Hz; 50 Hz; 75 Hz; 100 Hz |
| Angular resolution: Horizontal | 0.042°, interlaced |
| Scan field flatness | Scan field flatness combined: ± 0.72°; Typical conical error: 1 sigma value – 0.11° ± 0.1°; Typical tilt: 1 sigma value + 0.15° ± 0.08° |
| Heating | Self-heating with additional integrated heating |
| Working range | 0.2 m … 80 m |
| Scanning range: At 10% remission factor | 40 m |
| Measurement accuracy | ± 24 mm |
| Spot size | Divergence: 11.9 mrad; At the viewing window: 13.5 mm; In 26 m: 322 nm; In 40 m: 489 mm |
| Amount of evaluated echoes | 5 |
| Connection type | 4 x M12 round connector |
| Supply voltage | 24 V DC, ± 20 % |
| Power consumption | 22 W, + 55 W heating (typical) |
| Housing material | AlSi12 |
| Window material | Polycarbonate, scratch-resistant coating |
| Enclosure rating | IP65 (EN 60529, Section 14.2.7); IP67 (EN 60529, Section 14.2.7) |
| Weight | 3.7 kg |
| Dimensions (L x W x H) | 160 mm x 155 mm x 185 mm |
| MTBF | > 100 years |
| MTTFd | > 100 years |
| MTTFD | > 100 years |
| Response time | ≥ 10 ms |
| Declarations and certificates in the data sheet | EU declaration of conformity; UK declaration of conformity; ACMA declaration of conformity; China RoHS; KC Mark certificate; cTUVus certificate; Information according to Art. 3 of Data Act (Regulation EU 2023/2854) |
Ordering LMS511-10100 PRO: type code, part number and fit
Derived from the listed angles: a 190 degree sector at 0.042 degree angular resolution corresponds to roughly 4525 measuring points per scan. This is a derived value for orientation.
On the electrical side, the data sheet gives supply 24 V DC, ± 20 %; response time ≥ 10 ms; connection 4 x M12 round connector; resolution standard Resolution; range 40 m; frequency 25 Hz; 35 Hz; 50 Hz; 75 Hz; 100 Hz; power draw 22 W, + 55 W heating (typical).
Before choosing the mounting position, check weight: 3.7 kg; light source: infrared (905 nm, ± 10 nm); housing: AlSi12; operating temperature: –30 °C … +50 °C; vibration: 10 Hz … 150 Hz, Amplitude 0.35 mm to 5 g, 20 cycles; storage temperature: –40 °C … +70 °C; dimensions: 160 mm x 155 mm x 185 mm; enclosure rating: IP65 (EN 60529, Section 14.2.7); IP67 (EN 60529, Section 14.2.7).
Before ordering, compare scanning range, field of view, angular resolution and scan frequency with your task, and check the interface (Ethernet, plus any I/O and encoder inputs) and the supply voltage.
Typical uses are vehicle and crane anti-collision, bulk-material volume and fill-level profiling, gate and dock monitoring and AGV navigation.
Documents and quotation
You can download the SICK data sheet for LMS511-10100 PRO (part no. 1046135) from this page. To request a quotation, submit the part number with quantity and destination in the RFQ form; Seven Star LLC is an independent supplier based in Muscat. Related SICK items are listed under Sensors & Transmitters. Check wiring, mounting and approvals against the data sheet before you order, since the data sheet is the governing document.
