SICK TIM351-2134001 TiM 2D Lidar Sensor
Description

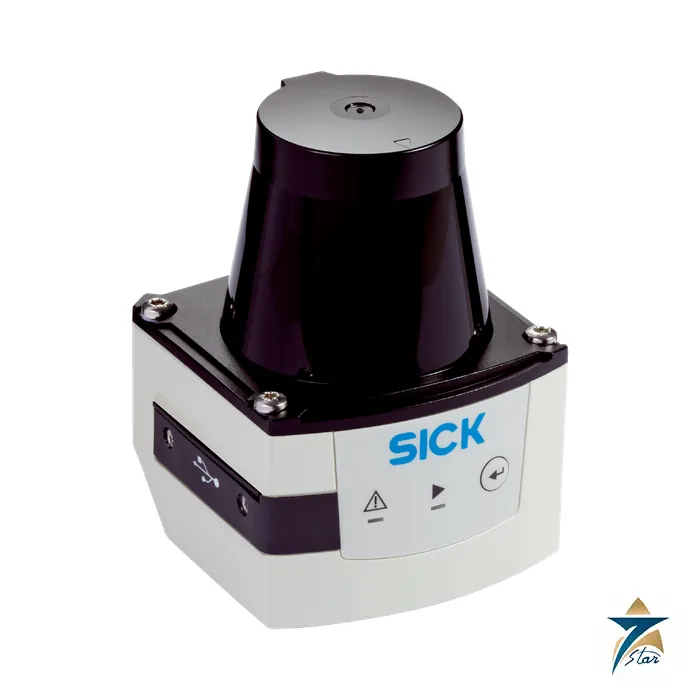

TIM351-2134001 is a SICK TiM 2D LiDAR sensor (part no. 1067299) that measures distances to surrounding objects along a rotating scan line. The catalogue summary lists: integrated application: Field evaluation; measurement principle: HDDM+; working range: 0.05 m … 10 m; number of field sets: 16; enclosure rating: IP67.
How the TIM351-2134001 works and where it fits
A 2D LiDAR emits short laser pulses into a rotating mirror and times the reflections, giving a line of distance values around the device in one plane. Echo evaluation and filtering are done in the sensor, so the data stream can contain filtered distances and optionally remission values for each beam.
Several fields can be defined in the sensor for simple switching functions, such as object present or zone free, which output to a digital line without any external computer. The scan plane is two-dimensional; to build a 3D picture the sensor must be moved or tilted, or a multi-layer type must be chosen.
Technical specifications
| Parameter | Specification |
|---|---|
| Type code | TIM351-2134001 |
| Part number | 1067299 |
| Product family | TiM |
| Application | Outdoor, Indoor |
| Measurement principle | HDDM+ |
| Light source | Infrared (850 nm) |
| Laser class | 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021) |
| Aperture angle: Horizontal | 270° |
| Scanning frequency | 15 Hz |
| Angular resolution: Horizontal | 1° |
| Working range | 0.05 m … 10 m |
| Scanning range: At 10% remission factor | 8 m |
| MTTFD | 100 years |
| Connection type | 1 x “Ethernet” connection, 4-pin M12 female connector; 1 x connection “Power”, 12-pin, M12 male connector; 1 x Micro USB female connector, type B |
| Supply voltage | 9 V DC … 28 V DC |
| Power consumption | Typ. 4 W, 16 W with 4 max. loaded digital outputs |
| Output current | ≤ 100 mA |
| Enclosure rating | IP67, applies only when the plastic cover of the “Aux interface” is closed (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| Weight | 250 g, without connecting cables |
| Dimensions (L x W x H) | 60 mm x 60 mm x 86 mm |
| MTBF | > 100 years |
| Response time | 1 scan, typ. 67 ms; 2 scans, ≤ 134 ms |
| Detectable object shape | Almost any |
| Systematic error | ± 60 mm |
| Statistical error | < 20 mm |
| Integrated application | Field evaluation |
| Number of field sets | 16 field triples (48 fields, contour as reference; 1 triple (3 flexible fields) can be configured directly at the scanner) |
| Simultaneous evaluation cases | 1 (3 fields); 2 (2 fields for detection and 1 field for contour as reference) |
| Ethernet | ✔ , TCP/IP |
| Function | Service interface, parameterization |
| Declarations and certificates in the data sheet | EU declaration of conformity; UK declaration of conformity; ACMA declaration of conformity; China RoHS; cTUVus certificate; Information according to Art. 3 of Data Act (Regulation EU 2023/2854) |
Type code TIM351-2134001 and what to check before ordering
Derived from the listed angles: a 270 degree sector at 1 degree angular resolution corresponds to roughly 271 measuring points per scan. This is a derived value for orientation.
On the electrical side, the data sheet gives range of 8 m; power draw of typ. 4 W, 16 W with 4 max. loaded digital outputs; resolution of 1°; supply of 9 V DC … 28 V DC; frequency of 15 Hz; current of ≤ 100 mA; response time of 1 scan, typ. 67 ms; 2 scans, ≤ 134 ms.
Before choosing the mounting position, check dimensions is 60 mm x 60 mm x 86 mm; storage temperature is –40 °C … +75 °C; light source is infrared (850 nm); weight is 250 g, without connecting cables; vibration is 10 Hz … 1,000 Hz; operating temperature is –25 °C … +50 °C.
Outdoor use needs a sensor variant whose enclosure rating and temperature range cover it.
Typical uses are vehicle and crane anti-collision, bulk-material volume and fill-level profiling, gate and dock monitoring and AGV navigation.
Documents and quotation
Attached to this page: the SICK data sheet for TIM351-2134001, part no. 1067299, as published by SICK. Send the type code, quantity and delivery location through the RFQ form and Seven Star LLC, an independent supplier in Muscat, will respond with a quotation. Similar products sit under Sensors & Transmitters. Confirm the full code against the device it replaces; if this page and the data sheet ever disagree, follow the data sheet.
