SICK TIM781-2174101 TiM 2D Lidar Sensor
Description

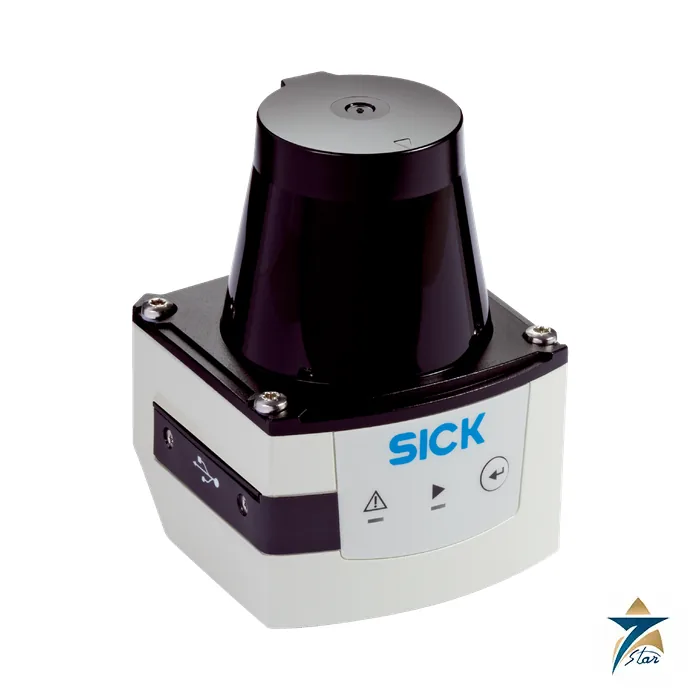

TIM781-2174101, part no. 1096807, belongs to the SICK TiM range of laser measurement sensors for contour detection, object tracking and navigation. The catalogue summary lists: integrated application: Field evaluation, output of measurement data; measurement principle: HDDM+; working range: 0.05 m … 25 m; number of field sets: 16; enclosure rating: IP67.
Understanding the TIM781-2174101 before you specify it
Range depends on the target’s reflectivity. These sensors are not safety devices unless the data sheet says so; they are used for navigation, volume and position measurement, anti-collision on cranes and vehicles, and for counting or classifying objects on conveyors.
The scan plane is two-dimensional; to build a 3D picture the sensor must be moved or tilted, or a multi-layer type must be chosen. Because the sensor looks along one line, mounting height and tilt define what it sees: a few degrees of tilt can place the scan line above or below a pallet.
Technical specifications
| Parameter | Specification |
|---|---|
| Type code | TIM781-2174101 |
| Part number | 1096807 |
| Product family | TiM |
| Application | Outdoor, Indoor |
| Measurement principle | HDDM+ |
| Light source | Infrared (850 nm) |
| Laser class | 1 (IEC 60825-1:2014, EN 60825-1:2014+A11:2021) |
| Aperture angle: Horizontal | 270° |
| Scanning frequency | 15 Hz |
| Angular resolution: Horizontal | 0.33° |
| Working range | 0.05 m … 25 m |
| Scanning range: At 10% remission factor | 8 m |
| MTTFD | 100 years |
| Connection type | 1 x “Ethernet” connection, 4-pin M12 female connector; 1 x connection “Power”, 12-pin, M12 male connector; 1 x Micro USB female connector, type B |
| Supply voltage | 9 V DC … 28 V DC |
| Power consumption | Typ. 4 W, 16 W with 4 max. loaded digital outputs |
| Output current | ≤ 100 mA |
| Enclosure rating | IP67, applies only when the plastic cover of the “Aux interface” is closed (IEC 60529:1989+AMD1:1999+AMD2:2013) |
| Weight | 250 g, without connecting cables |
| Dimensions (L x W x H) | 60 mm x 60 mm x 86 mm |
| MTBF | > 100 years |
| Response time | 1 scan, typ. 67 ms; 2 scans, ≤ 134 ms |
| Detectable object shape | Almost any |
| Systematic error | ± 60 mm |
| Statistical error | < 20 mm |
| Integrated application | Field evaluation; Output of measurement data |
| Number of field sets | 16 field triples (48 fields, contour as reference; 1 triple (3 flexible fields) can be configured directly at the scanner) |
| Simultaneous evaluation cases | 3 simultaneous fields (per field set) |
| Ethernet | ✔ , TCP/IP |
| USB | Yes |
| Declarations and certificates in the data sheet | EU declaration of conformity; UK declaration of conformity; ACMA declaration of conformity; China RoHS; cTUVus certificate; Information according to Art. 3 of Data Act (Regulation EU 2023/2854) |
Ordering TIM781-2174101: type code, part number and fit
Derived from the listed angles: a 270 degree sector at 0.33 degree angular resolution corresponds to roughly 819 measuring points per scan. This is a derived value for orientation.
Supply and signal data as listed: range 8 m; response time 1 scan, typ. 67 ms; 2 scans, ≤ 134 ms; current ≤ 100 mA; supply 9 V DC … 28 V DC; resolution 0.33°; frequency 15 Hz; power draw typ. 4 W, 16 W with 4 max. loaded digital outputs.
Fitting and site conditions are covered by these entries: storage temperature: –40 °C … +75 °C; vibration: 10 Hz … 1,000 Hz; operating temperature: –25 °C … +50 °C; light source: infrared (850 nm); weight: 250 g, without connecting cables; dimensions: 60 mm x 60 mm x 86 mm.
Before ordering, compare scanning range, field of view, angular resolution and scan frequency with your task, and check the interface (Ethernet, plus any I/O and encoder inputs) and the supply voltage.
Check the data interface and the telegram format in the published documentation before committing to the PLC program.
Documents and quotation
You can download the SICK data sheet for TIM781-2174101 (part no. 1096807) from this page. To request a quotation, submit the part number with quantity and destination in the RFQ form; Seven Star LLC is an independent supplier based in Muscat. Related SICK items are listed under Sensors & Transmitters. Check wiring, mounting and approvals against the data sheet before you order, since the data sheet is the governing document.
