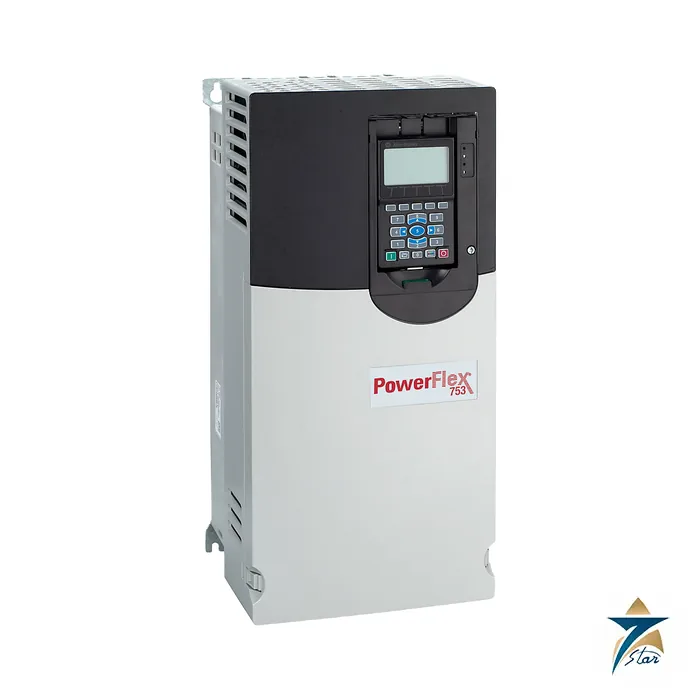

Allen-Bradley 20F11NC060JA0NNNNN PowerFlex 753 30 kW Drive

Name: Allen-Bradley 20F11NC060JA0NNNNN PowerFlex 753 | Seven Star
Brand: Allen-Bradley
SKU: 20F11NC060JA0NNNNN

Description

A frame 4 PowerFlex 753 for general-purpose 400V drives

The Allen-Bradley 20F11NC060JA0NNNNN is a PowerFlex 753 AC drive with embedded I/O, standard protection and forced-air cooling. Rockwell’s description lists AC input with DC terminals, IP20 / IP00 NEMA/UL Open Type, 60 A, 30 kW normal duty and 22 kW heavy duty at 400V AC three-phase, frame 4, filtered with the common-mode jumper installed as the preferred setting, a dynamic-braking transistor and a blank cover with no HIM.

In the 750-TD001 selection table this catalog number is the 60 A entry in the 380 to 400V list, the top of the frame 4 group that begins after 20F11NC043JA0NNNNN (43 A, 22 kW). Output current is 60 A continuous, 66 A for 60 seconds and 90 A for 3 seconds in normal duty; the heavy-duty row is 43 A continuous with the same 66 A and 90 A overload points.

Technical specifications

Parameter	Specification
Catalog number	20F11NC060JA0NNNNN
Family	Allen-Bradley PowerFlex 753 AC drive
Supply	400V AC, three-phase (380 to 400V class per the 750-TD001 table)
Normal duty	30 kW; 60 A continuous, 66 A for 60 s, 90 A for 3 s
Heavy duty	22 kW; 43 A continuous, 66 A for 60 s, 90 A for 3 s
Frame size	4
Enclosure	IP20 / IP00, NEMA/UL Open Type, forced air
Input	AC input with DC terminals
EMC	Filtered, common-mode jumper installed (preferred)
Braking	DB transistor
Operator interface	Blank cover, no HIM
Series note	PowerFlex 753: embedded I/O, three option slots, no embedded EtherNet/IP

Where the 753 fits in the 750-Series

The brochure positions the PowerFlex 753 for general-purpose speed or torque control up to 250 kW (350 Hp). It has embedded I/O and three option slots for safety, feedback, communications, 24V auxiliary power or additional I/O. The more capable PowerFlex 755 reaches 1500 kW (2000 Hp), adds an embedded EtherNet/IP port and has five option slots.

Both use a slot-based hardware architecture so the same feedback, safety and communication options are shared across the series, which reduces spare-part inventory. Add-on Profiles integrate the drive with Logix controllers, and the dual-port EtherNet/IP option module supports Device Level Ring.

Safety, feedback and diagnostics options

The brochure lists four safety option modules: hardwired Safe Torque Off (SIL3, PLe, Cat 3), networked Safe Torque Off on EtherNet/IP (SIL3, PLe, Cat 3), Safe Speed Monitor (SIL3, PLe, Cat 4) and an integrated safety functions module rated up to SIL3 and PLe Cat 4 with a GuardLogix 5580ES or Compact GuardLogix 5380ES controller.

Feedback options include universal, single encoder and dual encoder cards; the universal card supports incremental, EnDat, Hiperface, SSI and BiSS interfaces, with automatic switchover on feedback loss. DeviceLogix lets the drive handle outputs and status locally.

Ordering and documents

Order the complete 20-character catalog number, because voltage, protection, enclosure, filter, braking and HIM options are all encoded in it. Option modules for safety, feedback, I/O and communications, and the HIM, are separate order codes. The hosted brochure 750-BR001 gives the series overview; the full ratings and dimensions are in technical data 750-TD001, which is too large to host here and can be requested separately. Seven Star LLC is an independent supplier in Muscat and quotes on request; please confirm every rating against the current Rockwell documents before ordering.
