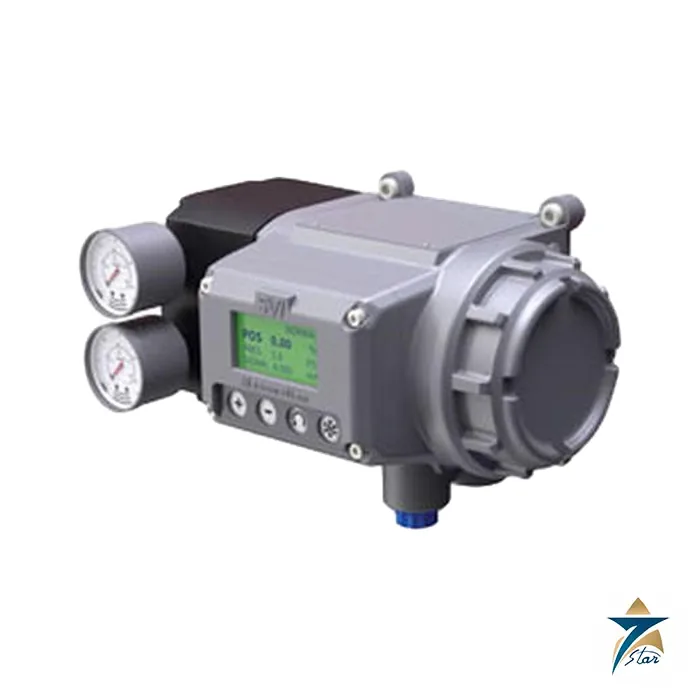

Masoneilan SVI3 Digital Valve Positioner

Name: Masoneilan SVI3 Digital Valve Positioner – Datasheet & Quote
Brand: Masoneilan

Description

Overview

The Masoneilan SVI3 is the third-generation digital valve positioner from Baker Hughes Masoneilan, designed as a user-friendly instrument for pneumatic control valves across power generation, refining, petrochemical, and midstream and upstream oil and gas facilities. Utilizing advanced control and diagnostic algorithms alongside field-proven, non-contact position sensing technology, the SVI3 delivers accurate, responsive, and reliable positioning performance built on more than twenty years and billions of hours of Masoneilan valve positioning field experience. The result is a positioner that increases plant efficiency through online valve diagnostics while remaining simple enough for a technician to commission with a single button.

With engineering support in Muscat, Seven Star LLC supplies the Masoneilan SVI3 to process plants, refineries, and gas facilities across Oman and the GCC. Instrumentation and valve maintenance teams in Muscat, Sohar, and Salalah can source Baker Hughes positioners through Seven Star LLC, with technical support and lead time confirmed at quotation to help keep control valve automation projects on schedule.

Operating Principle

The Masoneilan SVI3 operates as a closed-loop digital positioner: a non-contact position sensor continuously reports actual valve stem or shaft position back to the positioner’s internal control algorithm, which compares this measured position against the 4–20 mA HART command signal from the DCS or PLC and adjusts pneumatic output through a two-stage pneumatic relay system to drive the actuator toward the setpoint. Because the position sensing technology is non-contact, it avoids the mechanical wear associated with older potentiometer-based positioners, preserving positioning accuracy over the long service life expected of critical process control valves.

Beyond basic positioning, the SVI3 continuously executes 19 online valve diagnostics that monitor valve health while the process remains in operation — including cycle counts, step response tests, ramp tests, valve signature analysis, and overall system health indicators — without interrupting control. Up to one year of this diagnostic data is stored directly within the device, allowing maintenance teams to trend valve behavior and identify developing problems such as packing friction, actuator leakage, or positioner drift before they escalate into unplanned shutdowns. The Masoneilan SVI3’s two-stage pneumatic design also delivers a 40% reduction in steady-state air consumption alongside a 15% increase in air delivery, lowering plant instrument air demand while improving dynamic response.

Engineering Design of the Masoneilan SVI3

The Masoneilan SVI3 is housed in a copper-free aluminum enclosure as standard, with an optional 316 stainless steel housing available for corrosive coastal and offshore installations typical of GCC oil and gas terminals. The positioner carries SIL3 capability along with ATEX, IECEx, and US and Canada hazardous-area approvals covering flameproof/explosion-proof, intrinsic safety, dust ignition-proof, and increased safety classifications, making it suitable for the full range of hazardous process areas found in refining and petrochemical plants. An extended operating temperature range down to –55°C allows deployment in both extreme cold climates and the high ambient temperatures common across the Arabian Gulf.

Local commissioning is handled through the SVI3’s high-contrast graphical display and integrated pushbuttons, supporting the single-button “SMART CAL” calibration sequence that automatically strokes and tunes the positioner without requiring a separate configuration tool. HART 7 communication over the standard 4–20 mA signal integrates the Masoneilan SVI3 into virtually any control system, while Masoneilan’s ValVue software and Device Type Manager (DTM) provide full remote configuration, trend analysis, and diagnostic review from the control room. The universal design supports both linear and rotary valve actuation, with single-acting, fail-safe pneumatic action as standard, giving engineering teams a single positioner platform across diverse valve types.

Key Features

The Masoneilan SVI3 digital valve positioner combines proven position-sensing technology with modern diagnostics to reduce valve maintenance costs and improve process control performance.

Built on 20+ years and billions of hours of field-proven Masoneilan valve position sensing and control algorithm technology.
The Masoneilan SVI3 delivers 19 online valve diagnostics that continuously monitor valve health during normal process operation.
Stores up to one year of diagnostic data on-board for trend analysis and predictive maintenance planning.
Achieves a 40% reduction in steady-state air consumption alongside a 15% increase in air delivery.
Offers single-button “SMART CAL” commissioning that automates travel calibration and tuning.
Supports extended operating temperatures down to –55°C for extreme climate installations.
Carries SIL3 capability along with ATEX, IECEx, US, and Canada hazardous-area certifications.
Provides a modular platform architecture that supports future performance upgrades on the same installed device.

Industrial Applications

The Masoneilan SVI3 is deployed across steam turbine generator systems, condensers, cooling towers, and reactor and turbine buildings in power generation plants; distillation, hydroprocessing, reforming, cracking, blending, and quenching services in refineries; charge gas compression, separation, dehydration, and refrigeration systems in midstream gas plants; and pipeline integrity, loading, and regasification operations across LNG and gas transmission infrastructure. Its combination of online diagnostics and reduced air consumption makes it particularly valuable on critical control loops where unplanned valve failure carries significant production or safety consequences.

Backed by manufacturer datasheet documentation, Seven Star LLC distributes the Masoneilan SVI3 digital valve positioner to power generation, refining, and gas processing facilities throughout Oman, including the Sohar and Salalah economic zones, and across the broader GCC. Plants in Muscat and beyond rely on Seven Star LLC for genuine Masoneilan positioners, ValVue software licensing support, and rapid replacement stock that keeps critical control valve loops running with minimal downtime.

Technical Specifications

The table below summarizes the key specifications of the Masoneilan SVI3 digital valve positioner.

Parameter	Specification
Model	Masoneilan SVI3
Signal / Communication	HART 7 over 4–20 mA
Diagnostics	Positioner diagnostics, advanced diagnostics, 19 online valve diagnostics
Construction / Materials	Copper-free aluminum housing standard; optional 316 stainless steel
Operating Temperature	–55°C to +85°C
Pneumatic Action	Single acting, fail-safe; rotary and linear
Supply Pressure	20 to 120 psi
Air Delivery	410 SLPM @ 30 psi
Certification	SIL3 capable; ATEX, IECEx, US, Canada — flameproof, intrinsic safety, dust ignition-proof, increased safety
Data Storage	Up to one year of on-board diagnostic data
Air Consumption Improvement	40% reduction in steady-state consumption, 15% increase in air delivery
Applicable Industries	Power generation, refining, petrochemicals, midstream and upstream oil and gas

Request a Quote for Masoneilan SVI3 Digital Valve Positioner

To specify the Masoneilan SVI3 for a new control valve automation project or to upgrade an aging positioner, contact the Seven Star LLC instrumentation division for a formal RFQ, technical datasheet, and application review. Working closely with plant engineers in the region, Seven Star LLC supplies digital valve positioners on request, with technical support with selection, so that plants across Muscat, Sohar, Salalah, and the wider Sultanate can deploy Baker Hughes valve automation technology with confidence.

Reviews

There are no reviews yet.

How would you rate this product?

About brand

Masoneilan is a control valve brand of Baker Hughes with roots going back to 1882. Its Camflex eccentric plug rotary valve, 21000 series globe valve and SVI digital positioners are fixtures in refineries, gas plants and power stations. Every valve carries a serial number and a long model number that define the actuator, body and trim.

Seven Star LLC is an independent supplier listing Masoneilan control valves, actuators, regulators, positioners and level instruments for buyers in Oman and the GCC. We source complete valves as well as Masoneilan spare parts against that nameplate data.

Masoneilan at a glance

Origin	Mason Regulator Company, Boston area, USA (1882). It acquired the Neilan Company of California in 1931, and the two names became Masoneilan.
Ownership	Dresser Industries from 1985, then GE Oil & Gas, now Baker Hughes
Milestones the company cites	Cv flow coefficient introduced (1944), spring-diaphragm actuators (1955), Camflex rotary globe valve (1968), Lo-dB low-noise trim (1975), LincolnLog axial-flow letdown valve (1982), Varipak (1984), V-Log (1998), SteamForm steam conditioning valve (2002)
Product families	Globe, rotary, butterfly and severe-service control valves, actuators, digital positioners, self-operated regulators and displacer level instruments
Typical duty	Throttling control of steam, gas, hydrocarbons and water, high-pressure letdown, anti-cavitation and low-noise service

Masoneilan control valves and actuator series

Series	Type	Typical use
21000, 21009	Top-guided and cage-guided globe valves	General process control. Cryogenic (21000 C), bellows seal (21000 BS) and API 6A versions are also made
41005	Cage-guided globe valve	Higher pressure drop and larger sizes, up to 30-36 inch extended sizes; VRT anti-cavitation and API 6A versions
35002 Camflex II	Eccentric plug rotary control valve	Erosive, flashing and dirty service; HC high capacity, DVD low noise and GR globe replacement versions
37002 MiniTork II, 39003/39005, 33000	Butterfly control valves, high-performance and triple-offset	Large flows at low pressure drop, and tight-shutoff duty
28000 Varipak	Microflow control valve	Very small flows, with adjustable Cv
78400/18400 LincolnLog, 77000, 49000 V-Log	Severe-service multi-stage valves	High-pressure liquid letdown, anti-cavitation and gas noise reduction
84000/84003 SteamForm, DSH	Steam conditioning valves and desuperheaters	Turbine bypass and steam pressure and temperature reduction
87/88, 37/38, 51/52/53	Spring-diaphragm and piston actuators	Linear and rotary valve actuation; diaphragms and soft-goods kits are listed separately
SVI3, SVI II AP, SVi1000, SVI FF	Digital valve positioners	HART or FOUNDATION Fieldbus positioning with valve diagnostics; the SVI II ESD adds partial stroke testing
4700/4800, 8013	Pneumatic and electro-pneumatic positioners	Older installed base. Many sites move to SVI positioners at overhaul
525/526, 535/536, 171-174	Self-operated pressure regulators	Pressure reducing and back-pressure control without external power
12400, 12800	Displacer level transmitters and controllers	Digital (12400, HART, SIL 2 version 12420) and pneumatic (12800) level control on separators and vessels

Where Masoneilan valves are used

Throttling duty on steam, hydrocarbons, gas and water is the daily work of these valves. Typical services are feedwater and steam conditioning in power plants, separator and compressor loops in gas processing, high-pressure-drop letdown, cryogenic service in LNG and air separation, and general flow, pressure and level control in refineries and chemical plants.

Ordering Masoneilan valves and spare parts: what we need

For spare parts the serial number decides the order, because the factory record behind it lists the trim, materials and actuator. Send a clear nameplate photo with the serial number, model number, size and pressure class. For a new valve, add the process data: fluid, inlet and outlet pressure, temperature, minimum, normal and maximum flow, required leakage class, fail position, air supply and control signal. When an older positioner or valve series is no longer made, we quote the successor that Baker Hughes names and list the mounting kit it needs.

Facts checked against Baker Hughes Masoneilan product information and the company's published timeline, October 2026.

Browse Masoneilan products by category: Control Valves, Valve Actuator, Regulators, Valve Positioner, Level Transmitter.

FAQ

Questions about the Masoneilan SVI3 Digital Valve Positioner

Answers from our engineering team on installation, compatibility and integration.

01What makes the Masoneilan SVI3 different from earlier SVI positioners?

The Masoneilan SVI3 introduces 19 online valve diagnostics that continuously monitor valve health during normal operation, up to one year of on-board diagnostic data storage, and a two-stage pneumatic system delivering a 40% reduction in steady-state air consumption with a 15% increase in air delivery compared with earlier generations.

02How long does it take to commission a Masoneilan SVI3?

The Masoneilan SVI3 features a single-button SMART CAL calibration sequence that automatically strokes and tunes the positioner, dramatically simplifying commissioning compared with manual configuration and helping to reduce valve maintenance costs.

03Is the Masoneilan SVI3 compatible with both linear and rotary valves?

Yes. The SVI3 uses a universal design that supports both linear and rotary valve applications with single-acting, fail-safe pneumatic action, allowing one positioner platform to cover diverse control valve types across a plant.

04Can the Masoneilan SVI3 integrate with existing HART-based control systems?

Yes. The SVI3 communicates via HART 7 over the standard 4-20 mA signal and integrates with Masoneilan ValVue software and Device Type Manager (DTM), allowing full remote configuration, trending, and diagnostics from virtually any major control system or asset management platform.

05Is Seven Star LLC an experienced supply partner for Masoneilan products?

Yes, Seven Star LLC is an experienced supplier of Masoneilan and Baker Hughes valve automation products in Oman and the GCC, supplying positioners with local technical support.
