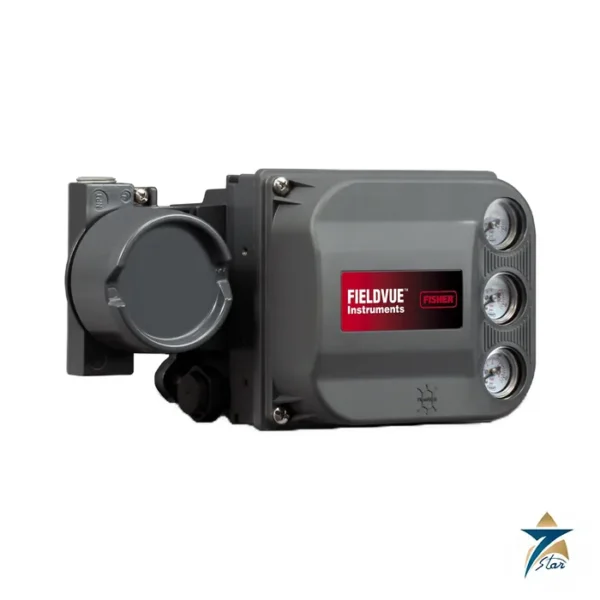

Fisher FIELDVUE DVC6200 Digital Valve Controller

Name: Fisher DVC6200 Valve Controller – Datasheet & Price Quote
Brand: Fisher

Description

Overview

The Fisher DVC6200 FIELDVUE Digital Valve Controller is Emerson’s advanced smart positioner, engineered to let a control loop run closer to setpoint through more accurate valve positioning combined with continuous online performance monitoring. Built around a linkage-less feedback system and FIELDVUE Performance Diagnostics, the DVC6200 does more than position a valve; it evaluates the health and reliability of the entire valve assembly in real time, giving maintenance teams the diagnostic visibility needed to move from reactive to predictive valve maintenance strategies. The Fisher DVC6200 is the workhorse model in this FIELDVUE family.

Seven Star LLC supplies this item on request with the manufacturer documentation, and availability and lead time are confirmed at quotation. Plants in Muscat, Sohar, and across the region can request FIELDVUE instruments through Seven Star LLC, supplied on request with lead time confirmed at quotation.

Operating Principle

The DVC6200’s linkage-less feedback system eliminates the traditional mechanical linkage between the valve stem and the positioner’s feedback sensor, removing a common source of wear, backlash, and drift that degrades positioning accuracy on conventional pneumatic positioners over time. The Fisher DVC6200 ensures that because there is no physical contact to wear, the feedback signal stays accurate over the full service life of the instrument, and the fully encapsulated electronics resist vibration, temperature extremes, and corrosive atmospheres typical of GCC process environments.

As a HART communicating device, the Fisher DVC6200 makes valve and process information accessible anywhere along the 4-20 mA loop, so technicians can interrogate diagnostics, calibration data, and travel history from the control room rather than climbing to a field-mounted valve in a hazardous or hard-to-reach location. The Fisher DVC6200 instrument provides quick responsiveness to large step changes while still delivering precise control for small setpoint adjustments, giving it the dynamic range needed for both coarse and fine process control tasks within a single positioner platform.

Engineering Design of the Fisher DVC6200

The Fisher FIELDVUE DVC6200 uses a modular internal architecture in which critical working components, such as the pneumatic relay module or the feedback sensor assembly, can be replaced without removing the instrument’s field wiring or pneumatic tubing. This modularity dramatically reduces the time and disruption involved in a positioner repair, since a technician can swap the failed module in place rather than de-installing and re-commissioning the entire instrument.

The rugged, fully encapsulated enclosure protects the internal electronics from the vibration, dust, and moisture ingress common on outdoor and coastal process units, while remaining compatible with standard Fisher pneumatic and electro-pneumatic rotary and sliding-stem actuators through common mounting kits. When the Fisher DVC6200 is installed as part of an integrated digital control system, the DVC6200’s HART connectivity and diagnostic data can be pulled directly into asset management software, delivering measurable hardware and installation cost savings compared with maintaining a separate standalone diagnostic tool for each valve.

Key Features

The Fisher FIELDVUE DVC6200 combines precision positioning with predictive diagnostics to reduce both control variability and unplanned valve maintenance.

The high-performance, linkage-less feedback system eliminates physical contact, which eliminates the wear that degrades accuracy on parts over time.
Fully encapsulated electronics resist the effects of vibration, temperature extremes, and corrosive atmospheres in demanding process environments.
The Fisher DVC6200 instrument provides quick responsiveness to large step changes alongside precise control for small setpoint changes.
As a HART communicating device, information can be accessed anywhere along the loop, reducing exposure to hazardous field locations.
The modular design allows critical working components to be replaced without removing field wiring or pneumatic tubing.
Installing the Fisher DVC6200 in an integrated control system can achieve significant hardware and installation cost savings for plant operators.
FIELDVUE Performance Diagnostics monitor valve operation online to evaluate ongoing performance and reliability.
The Fisher DVC6200 mounts to standard Fisher pneumatic and electro-pneumatic actuators using common industry mounting kits.

Industrial Applications

The Fisher FIELDVUE DVC6200 Digital Valve Controller is deployed as the Fisher DVC6200 across oil and gas processing, refining, petrochemical manufacturing, and power generation facilities wherever plants are moving toward predictive maintenance programs built on continuous valve health monitoring rather than fixed maintenance intervals. Its HART connectivity and diagnostic capability make it a natural fit for digital transformation and asset management initiatives underway at process facilities across the region.

With engineering support in Muscat, Seven Star LLC supplies the FIELDVUE DVC6200 to plant operators and EPC contractors throughout Oman and the GCC, supporting refinery and petrochemical developments in the Sohar and Salalah economic zones as well as power and desalination projects around Muscat. Buyers sourcing the Fisher DVC6200 through Seven Star LLC’s trusted supply channel receive genuine Emerson-manufactured instruments with verified HART configuration and direct access to our instrumentation division for diagnostic setup support.

Technical Specifications

The table below summarizes the primary Fisher DVC6200 specifications relevant to installation and diagnostics.

Parameter	Specification
Model	Fisher FIELDVUE DVC6200 Digital Valve Controller
Instrument Type	Smart digital valve positioner with linkage-less feedback
Communication Protocol	HART, superimposed on 4-20 mA loop signal
Diagnostics	FIELDVUE Performance Diagnostics, online valve health monitoring
Construction	Fully encapsulated electronics, modular replaceable components
Compatible Actuators	Standard Fisher pneumatic and electro-pneumatic rotary and sliding-stem actuators
Available Variants	DVC6200 (HART 5 or HART 7), DVC6200f (FOUNDATION fieldbus), DVC6200p (PROFIBUS PA), DVC6200 SIS (safety instrumented systems)
Environmental Rating	Resists vibration, temperature extremes, and corrosive atmospheres
Maintenance	Modular components replaceable without removing field wiring or tubing
Input Signal	4 to 20 mA DC nominal, split ranging available; minimum 9.5 V DC at the terminals for analog control, 10 V DC for HART communication
Supply Pressure	Maximum 10.0 bar / 145 psig or the actuator pressure rating, whichever is lower; medium air or natural gas
Output Action	Double-acting, single-acting direct or single-acting reverse
Operating Ambient Temperature	-40 to +85 °C; -52 to +85 °C with the Extreme Temperature option (fluorosilicone elastomers)
Independent Linearity	Typical ±0.50% of output span
Electrical Housing	Type 4X, IP66 (CSA, FM); IP66 (ATEX, IECEx)
Actuator Travel Range	Sliding-stem: 6.35 mm to 606 mm rated travel; quarter-turn rotary: 45 to 180 degrees
Weight	Aluminum 3.5 kg; stainless steel 8.6 kg

Mounting and Remote-Mount Option

Diagnostic Levels and Options

Request a Quote for Fisher FIELDVUE DVC6200 Digital Valve Controller

Seven Star LLC invites process engineers and procurement teams across Oman and the GCC to submit a formal RFQ for the Fisher FIELDVUE DVC6200 Digital Valve Controller. Seven Star LLC supplies on request with lead time confirmed at quotation, provides full technical datasheets on request, and connects buyers directly with our instrumentation division for HART configuration and diagnostics setup support. Contact Seven Star LLC today to request a quotation for a Fisher FIELDVUE DVC6200 with local engineering support.

Also available: Fisher 3610J Pneumatic Positioner

Datasheets & Documents

Datasheet Fisher FIELDVUE DVC6200 Digital Valve Controller Datasheet Download

Reviews (0)

Reviews

There are no reviews yet.

How would you rate this product?

About brand

Fisher is the control valve brand of Emerson. Its history starts in 1880 in Marshalltown, Iowa, where William Fisher, working at the town waterworks, invented a constant-pressure pump governor and founded a company to make it. Emerson bought Fisher Controls in 1992, and Marshalltown remains a main engineering and manufacturing site for Fisher valves. The brand covers control valves, actuators, FIELDVUE digital valve controllers, regulators and level controllers.

Seven Star LLC is an independent supplier listing Fisher control valves, actuators, positioners, regulators and spare parts for buyers in Oman and the GCC. Replacement valves and trim are matched from the serial number on the valve nameplate.

Fisher company profile

Origin	William Fisher's constant-pressure pump governor, Marshalltown, Iowa, USA (1880)
Ownership	Owned by Monsanto from 1969; sold to Emerson in 1992 and combined with Rosemount as Fisher-Rosemount, later Emerson Process Management. Today a brand of Emerson.
Main site	Marshalltown, Iowa, USA
Product families	Sliding-stem and rotary control valves, spring-diaphragm and piston actuators, FIELDVUE digital valve controllers, pressure regulators, displacer and digital level controllers
Typical duty	Throttling control of liquids, gas and steam, high-pressure and severe service, instrument supply and gas pressure reduction

Milestones

1880: William Fisher builds a constant-pressure pump governor in Marshalltown, Iowa.
1969: Monsanto acquires Fisher Controls.
1992: Emerson buys Fisher and combines it with Rosemount as Fisher-Rosemount, later Emerson Process Management.

Fisher valves, actuators and instruments

Series	Type	Typical use
easy-e ES, ET, EZ	Sliding-stem globe and angle valves	Cage-guided globe valves: ES with unbalanced plug, ET with balanced trim for higher pressure drop; EZ unbalanced with a seat ring retainer for viscous or dirty fluids
GX	Compact globe valve with integral actuator	Standard chemical and process duty where a compact valve package is preferred
HPT, HPAT	High-pressure globe and angle valves	Pressure classes up to ASME CL2500, compressor recycle and high-pressure letdown

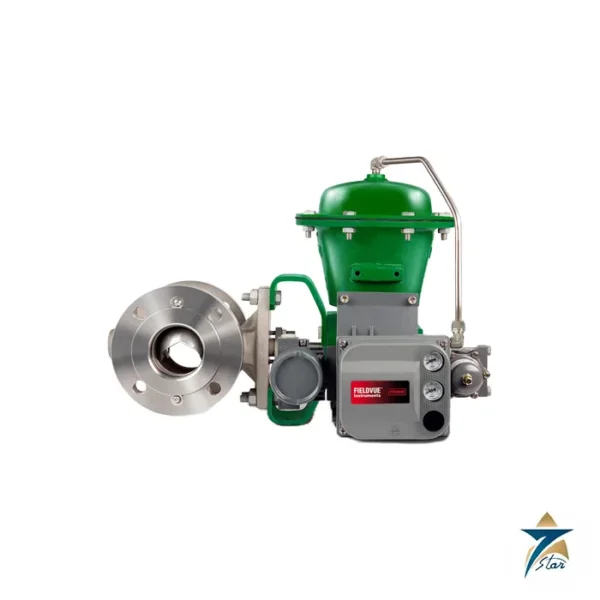

V150, V200, V300, V250	Vee-Ball segmented ball and full-bore ball control valves	High-capacity control of liquids, gas and fibrous or slurry service
CV500	Eccentric rotating plug valve	Erosive, coking and dirty service
8560, 8580	High-performance butterfly valves	Large-line throttling and on-off control
657, 667, 1052, 1061, easy-Drive	Spring-diaphragm, piston and electric actuators	657 and 667 for sliding-stem valves; 1052 and 1061 for rotary valves; easy-Drive where no air is available
FIELDVUE DVC6200, DVC2000, 3610J	Digital valve controllers and positioners	HART positioning with valve diagnostics; 3610J pneumatic positioner for rotary actuators
627, 1098-EGR, 67C	Pressure regulators	Gas pressure reduction, pilot-operated regulation and instrument air supply
DLC3100, 2500	Digital and pneumatic level controllers	Displacer level and interface on separators and scrubbers

Where Fisher valves are used

Fisher control valves and regulators are standard equipment in oil and gas production, refineries, gas processing and LNG, petrochemicals, power plants and water systems. Typical loops are separator level and pressure, compressor anti-surge and recycle, fuel gas pressure reduction, feedwater and steam control, and chemical dosing. FIELDVUE controllers add diagnostics that help plan valve maintenance before a turnaround.

Ordering Fisher valves and spare parts: what we need

For spares, send the serial number from the valve nameplate together with the valve type, size, pressure class, trim and actuator type and size. Emerson keeps the build record behind the serial number, so plug, seat ring, cage, packing and diaphragm kits can be matched without guesswork. For a FIELDVUE or regulator, send the full model and type number and the mounting details. For a new valve add the process data: fluid, flow range, inlet and outlet pressure, temperature, leakage class, fail position, air supply and signal.

Facts checked against Emerson Fisher product information and published company histories, October 2026.

Browse Fisher products by category: Control Valves, Valve Actuator, Valve Positioner, Regulators, Level Transmitter.

FAQ

Questions about the Fisher FIELDVUE DVC6200 Digital Valve Controller

Answers from our engineering team on installation, compatibility and integration.

01What is the main benefit of the linkage-less feedback system in the DVC6200?

Eliminating the physical linkage removes a wear point that causes drift and backlash in conventional positioners, so the DVC6200 maintains accurate feedback and positioning over the full service life of the instrument.

02How does the Fisher DVC6200 support predictive maintenance?

FIELDVUE Performance Diagnostics continuously monitor valve operation online, evaluating performance and reliability so maintenance teams can identify developing issues before they cause an unplanned shutdown.

03What actuators is the Fisher DVC6200 compatible with?

The DVC6200 mounts to standard Fisher pneumatic and electro-pneumatic rotary and sliding-stem actuators using common mounting kits, and separate variants are available for FOUNDATION fieldbus (DVC6200f), PROFIBUS PA (DVC6200p) and safety instrumented systems (DVC6200 SIS).

04Can the Fisher DVC6200 be accessed remotely for diagnostics?

Yes. As a HART communicating device, the DVC6200 makes diagnostic and configuration data accessible anywhere along the 4-20 mA loop, reducing the need to physically access field-mounted valves.

05Is Seven Star LLC an experienced supply partner for Fisher products?

Yes, Seven Star LLC is an experienced supplier of Fisher in Oman and the GCC, supplying Emerson-manufactured FIELDVUE instruments, valves, and actuators with local technical support.
