IMI STI SHP Smart High-Performance Positioner

Name: IMI STI SHP Smart High-Performance Positioner – Brochure & Quote
Brand: IMI STI
SKU: SHP

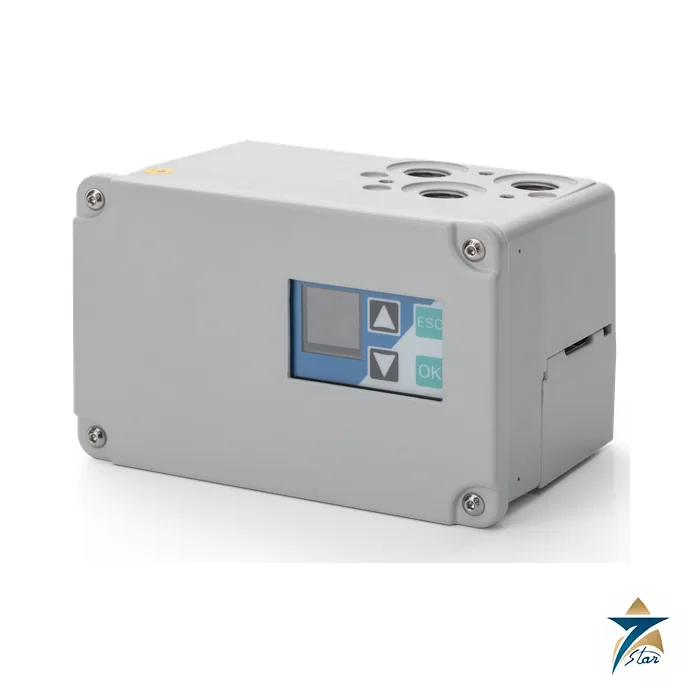

The IMI STI SHP is a high-capacity, high-precision digital pneumatic positioner, mainly used as a valve care controller. STI describes it as replacing or substituting the existing FT positioner. Its flow rate, control algorithm and logic are patented by STI and give high dynamic performance with very short stroking times, and it carries on-line and off-line diagnostics.

Seven Star LLC supplies IMI STI positioners from Muscat and checks the explosion-protection variant and actuator type with the buyer before quoting.

What the SHP does for large actuators and valve care

The high flow design (supply Cv 2.3, exhaust Cv 2.3) targets fast stroking of large-volume actuators, reducing the need for volume boosters or quick exhaust. The contactless magnetic feedback sensor is resistant to strong, persistent vibration. The positioner manages piston or diaphragm linear actuators and rotary actuators, single or double acting, with a double parameter set for open and close control. Fail safe and, for ATEX certification only, fail freeze (piezo valve and a dedicated 3-way valve) are listed applications.

Monitoring covers an event recorder, counters, event logs, valve life prediction and NE107 system status. Step test, valve signature test and frequency test are available through the remote control software (SHP Remote Control) or an FDI driver, and a graphical interface compares recorded test data. Communication uses 4-20 mA with HART 7, with a USB high-speed serial connection for real-time graphs. A display with push buttons is listed as an option.

Technical specifications

Parameter	Specification
Housing	Stainless steel ASTM A351 or low-copper aluminum EN AC 43500
Weight / size	Under 9 kg (stainless) or under 4 kg (aluminum); under 190 x 120 x 145 mm
Mounting	Fixing screws to VDE/VDI 3845 (NAMUR)
Pneumatic / electrical connections	3 x 1/2 in. NPT female; electrical 3 x 1/2 in. NPT (Ex ia) or 1 x 1/2 in. NPT (Ex d)
Operating pressure	2.5 to 10.5 bar (150 psi); fail freeze 8 bar; natural gas 7 bar; design 15 bar
Air quality	ISO 8573-1 class 3 (oil) and class 6 (dust); instrument air, natural gas, nitrogen, sweet dry gases
Flow	Supply Cv max 2.3, exhaust Cv max 2.3 (180 Nm3/h at 6 bar, 21 degC); consumption 1.5 Nm3/h or less at 6 bar
Communication	HART 7, 4-20 mA passive loop; 2 digital inputs and 2 digital outputs (24 V isolated)
Input voltage	10-30 V (Ex ia); 18-30 V (Ex d); 17-30 V (Ex ia fail freeze)
Performance (at 21 degC)	Hysteresis plus dead band +/-0.10%; repeatability +/-0.05%; sensitivity +/-0.10%; linearity +/-0.30%
Quick action	100 ms; loop and analog output update rate 10 ms
Thermal drift	Under 0.4% from -55 to +85 degC; under 0.1% from -40 to +85 degC
Temperature range	-55 to +85 degC operating and storage; T4-T6 per Ex certificate
Protection	IP66; NEMA 4 indoor (aluminum) or NEMA 4X outdoor (stainless)
Position feedback	Contactless sensor, 360 degree rotation; optional remote sensor up to 20 m; linear magnet kit up to 100 mm (4 in.) stroke

Certifications, options and selection

The brochure lists intrinsically safe (Ex ia) and explosion proof (Ex d [ia]) versions to ATEX, IECEx, GOST, SANS, INMETRO, ECASEx, ETL-C, CCoE, KOSHA, CCC, CU TR, UL and UKCA. The certificate that applies depends on the variant ordered. Options include a remote feedback sensor, universal linkage for linear long stroke (70 to 1700 mm) or VDI/VDE 3845 rotary applications, a lever for side yoke or top mounting, display and push buttons, directly mounted gauges and lock-up valve, silenced exhaust, a low bleed version, high corrosion resistance and a fail-in-place version. Software packs add advanced diagnostics, stability control and soft approach to seat.

Confirm before ordering: housing material, Ex ia or Ex d, actuator type and stroke, single or double acting, fail action, supply gas, ambient range, certification region, and the option pack.

Documents and quotation

To request a quotation for the SHP positioner, send Seven Star LLC the full model or order code, quantity, and any nameplate data from an existing unit that is being replaced or matched. Our Muscat team checks the request against the manufacturer document, which can be downloaded from this page, and replies with a formal quotation. Prices, stock and lead times are confirmed per inquiry.

Related products are listed in the valve positioners category.

IMI STI products listed

The range on this page covers:

SA/CL analog positioner, pneumatic or 4-20 mA electro-pneumatic

SHP and SHP-SIS smart positioners, the SIS version with partial stroke testing

FasTrak FT smart positioner and the 2130 limit switch

SC and SC/V linear pneumatic actuators for dampers and control valves

RTC and RTQ scotch yoke quarter-turn actuators

Ordering IMI STI actuators and positioners: what we need

Send the valve torque or thrust, stroke or rotation, supply pressure, fail-safe direction, ambient range and hazardous-area requirement. For positioners add the signal type, and for replacements a photo of the nameplate. The manufacturer's legal entity name, STI S.r.l., may appear on older documents.
